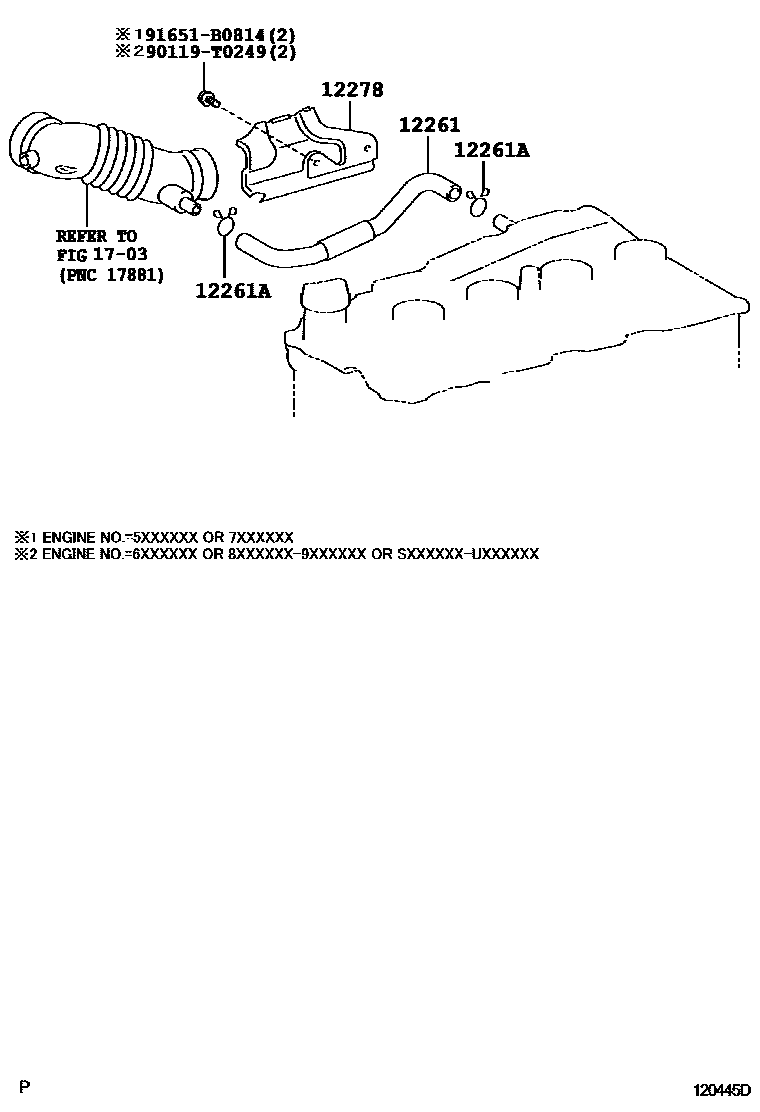

VENTILATION HOSE

0001 1 0002 1

12261HOSE, VENTILATION

main12261-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

*191

main12261-0L020i2KDFTV..KUN40200408-200607

main12261-0L021i2KDFTV..KUN40200808-201202

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0026×2i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

(L)

main90466-T0032×2i2KDFTV..KUN40200408-200812

12278INSULATOR, VENTILATION HOSE HEAT

main12278-0L010i2KDFTV..KUN40200408-200812

*130

main12278-30020i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

1703AIR CLEANER

→ Go to FIG 17-03

90119T0249

main90119-T0249

91651B0814

main91651-B0814

6 parts on this diagram · 2 diagrams in section
