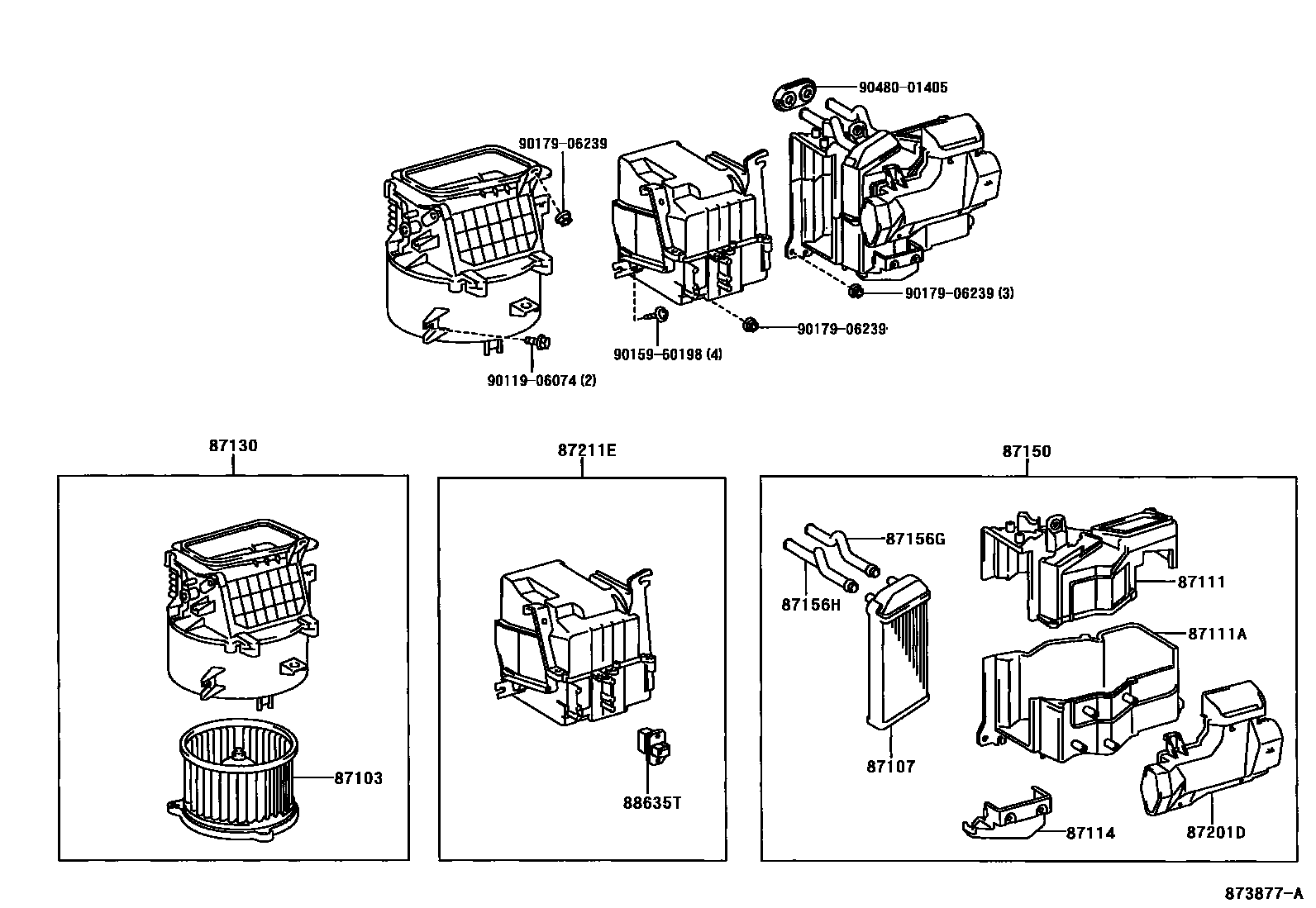

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1W(HEATER) 0002 1W(BOOST VENTILATOR)

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-0B010iLF50,RZF50199912

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-0B020iLF50,RZF50199912

87111CASE, HEATER

main87111-0B010iLF50..STD199912

W(BOOST VENTILATOR)

main87111-0B030iLF50,RZF50199912

87111ACASE, HEATER

main87111-0B020iLF50..STD199912

W(BOOST VENTILATOR)

main87111-0B040iLF50,RZF50199912

87114COVER, HEATER

main87114-0B030iLF50,RZF50199912

87130BLOWER ASSY, HEATER, FRONT

main87130-0B030iLF50,RZF50199912

87150RADIATOR ASSY, HEATER

main87150-0B020iLF50,RZF50199912

87156GPIPE, HEATER WATER, NO.1

main87156-0B010iLF50,RZF50199912

87156HPIPE, HEATER WATER, NO.2

main87156-0B020iLF50,RZF50199912

87201DDUCT SUB-ASSY, AIR

main87201-0B010iLF50,RZF50199912

87211EDUCT, AIR

main87201-0B020iLF50..STD199912

88635TRESISTOR, BLOWER

main88635-0B050iLF50..STD199912

9011906074

main90119-06074

9015960198

main90159-60198

9017906239

main90179-06239

9048001405

main90480-01405

16 parts on this diagram · 2 diagrams in section
