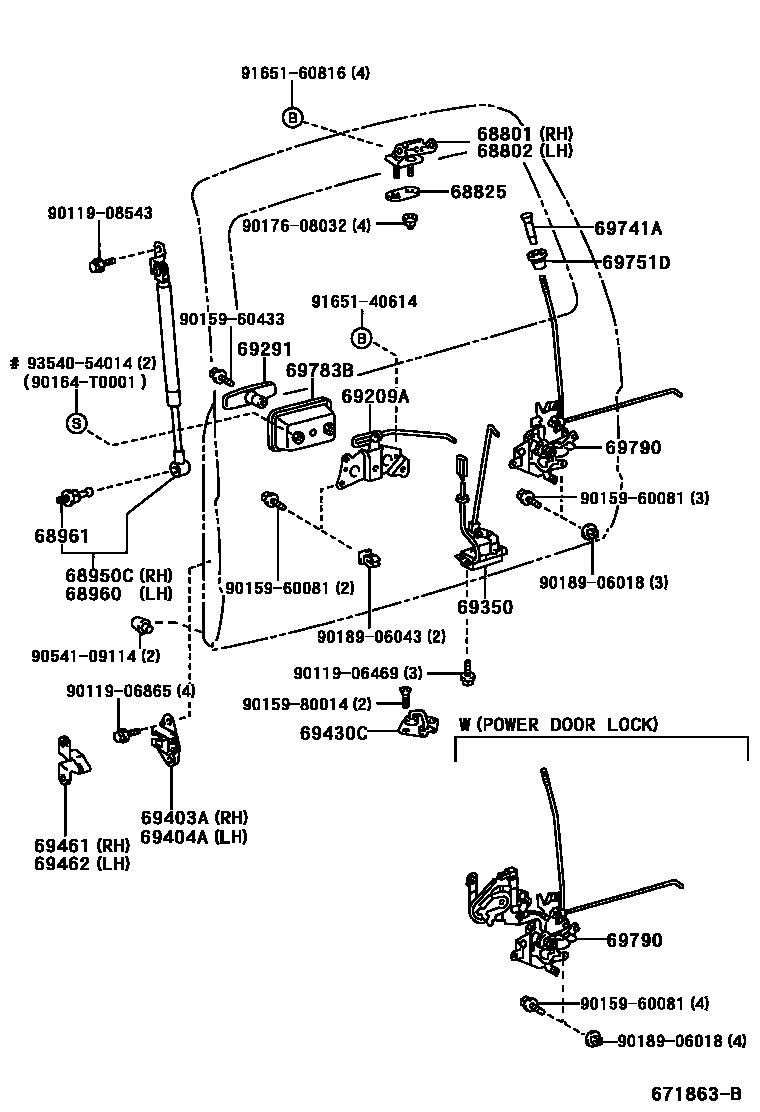

BACK DOOR LOCK & HINGE

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-90P51iLF50,RZF50199912

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-90P50iLF50,RZF50199912

68825PLATE, BACK DOOR HINGE

main68825-95700×2iLF50,RZF50199912

68950CSTAY ASSY, BACK DOOR, RH

main68950-39335iLF50,RZF50..DLX,GL199912-200209

W(REAR WIPER)

main68950-39355iLF50,RZF50..DLX,STD200209

main68950-39365iLF50,RZF50..DLX,GL200209

W(REAR WIPER)

main68950-80071iLF50..DLX,STD199912-200209

68960STAY ASSY, BACK DOOR, LH

main68960-39175iLF50,RZF50..DLX,GL199912-200209

W(REAR WIPER)

main68960-39195iLF50,RZF50..DLX,STD200209

main68960-39205iLF50,RZF50..DLX,GL200209

W(REAR WIPER)

main68960-80022iLF50..DLX,STD199912-200209

68961BOLT, BACK DOOR STAY

main68961-28010×2iLF50,RZF50199912

69209AHANDLE SUB-ASSY, BACK DOOR, INSIDE

main69209-0B020iLF50,RZF50199912

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-0B010-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69350LOCK ASSY, BACK DOOR

main69350-0B020iLF50,RZF50199912

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-38040iLF50199912-200010

main69403-38060iLF50,RZF50200010

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-38040iLF50199912-200010

main69404-38060iLF50,RZF50200010

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0B010iLF50,RZF50199912

69461STOPPER, BACK DOOR SIDE MALE, RH

main69401-38010iLF50,RZF50199912

69462STOPPER, BACK DOOR SIDE MALE, LH

main69402-38010iLF50,RZF50199912

69741AKNOB, BACK DOOR LOCK CONTROL

main69741-0B050-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-0B070-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-0B030-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69790CONTROL ASSY, BACK DOOR LOCK

main69790-0B010iLF50,RZF50..DLX,GL199912

W(POWER DOOR LOCK)

main69790-0B020iLF50..DLX199912-200209

9011906469

main90119-06469

9011906865

main90119-06865

9011908543

main90119-08543

9015960081

main90159-60081

9015960433

main90159-60433

9015980014

main90159-80014

90164T0001

main90164-T0001

9017608032

main90176-08032

9018906018

main90189-06018

9018906043

main90189-06043

9054109114

main90541-09114

9165140614

main91651-40614

9165160816

main91651-60816

9354054014

main93540-54014

32 parts on this diagram · 1 diagram in section
