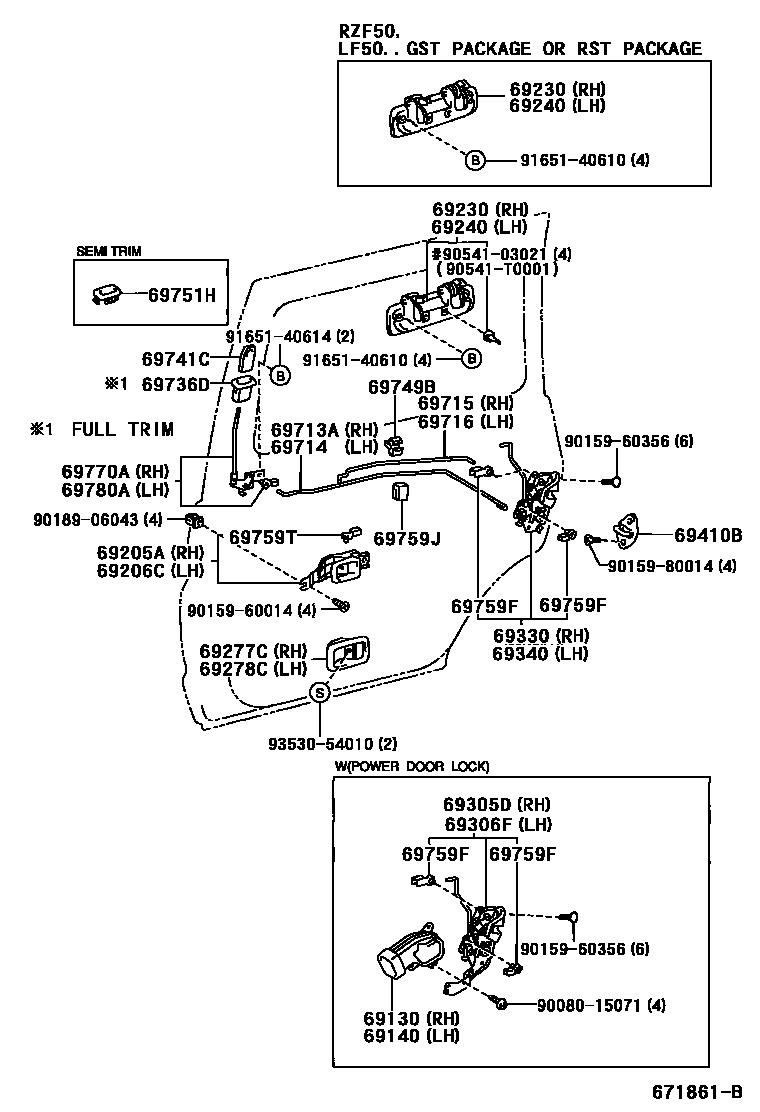

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-0B030iLF50..DLX199912-200201

main69130-0B040iLF50,RZF50..DLX,GL200201

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-0B030iLF50..DLX199912-200201

main69140-0B040iLF50,RZF50..DLX,GL200201

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0B030-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0B030-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0B010iLF50199912-200209

main69210-38010iRZF50200201-200209

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-0B010iLF50,RZF50..DLX,STD200209

main69220-38010iLF50..DLX,GL199912-200209

GST PACKAGE OR RST PACKAGE

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-0B030-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69277-0B030-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69305DLOCK SUB-ASSY, REAR DOOR, RH

main69305-0B050iLF50,RZF50..DLX,GL199912-200209

main69305-0B070iLF50,RZF50..DLX,GL200209

69306FLOCK SUB-ASSY, REAR DOOR, LH

main69306-0B040iLF50,RZF50..DLX,GL199912-200209

main69306-0B070iLF50,RZF50..DLX,GL200209

69330LOCK ASSY, REAR DOOR, RH

main69330-0B030iLF50..DLX,STD199912-200209

69340LOCK ASSY, REAR DOOR, LH

main69340-0B030iLF50..DLX,STD199912-200209

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0B030×2iLF50,RZF50199912

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-0B040iLF50,RZF50199912-200209

main69713-0B050iLF50,RZF50200209

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-0B040iLF50,RZF50199912-200209

main69714-0B050iLF50,RZF50200209

69715LINK, REAR DOOR LOCKING CONTROL, NO.2 RH

main69715-0B040iLF50,RZF50199912-200209

main69715-0B050iLF50,RZF50200209

69716LINK, REAR DOOR LOCKING CONTROL, NO.2 LH

main69716-0B040iLF50,RZF50199912-200209

main69716-0B050iLF50,RZF50200209

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-0B010×2iLF50..DLX199912-200008

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-0B040-B0×2iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030×2iLF50,RZF50200209

NO.1:REFER TO ILLUSTRATION

main69749-20030×2iLF50,RZF50200209

NO.2:REFER TO ILLUSTRATION

69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB

main69751-0B060-B0×2iLF50,RZF50..STD199912-200412

BLUISH GRAY,TRIM1#

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-0B310×2iLF50,RZF50199912-200209

PINK

main69759-0B320×2iLF50,RZF50199912-200209

GREEN

69759JSILENCER, DOOR LOCK LINK

main69759-90K01×2iLF50,RZF50199912

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-0B230iLF50,RZF50199912

RH

main69759-0B240iLF50,RZF50199912

LH

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0B040iLF50,RZF50200209

main69770-38020iLF50,RZF50199912-200209

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-0B040iLF50,RZF50200209

main69780-38020iLF50,RZF50199912-200209

9008015071

main90080-15071

9015960014

main90159-60014

9015960356

main90159-60356

9015980014

main90159-80014

9018906043

main90189-06043

9054103021

main90541-03021

90541T0001

main90541-T0001

9165140610

main91651-40610

9165140614

main91651-40614

9353054010

main93530-54010

36 parts on this diagram · 2 diagrams in section
