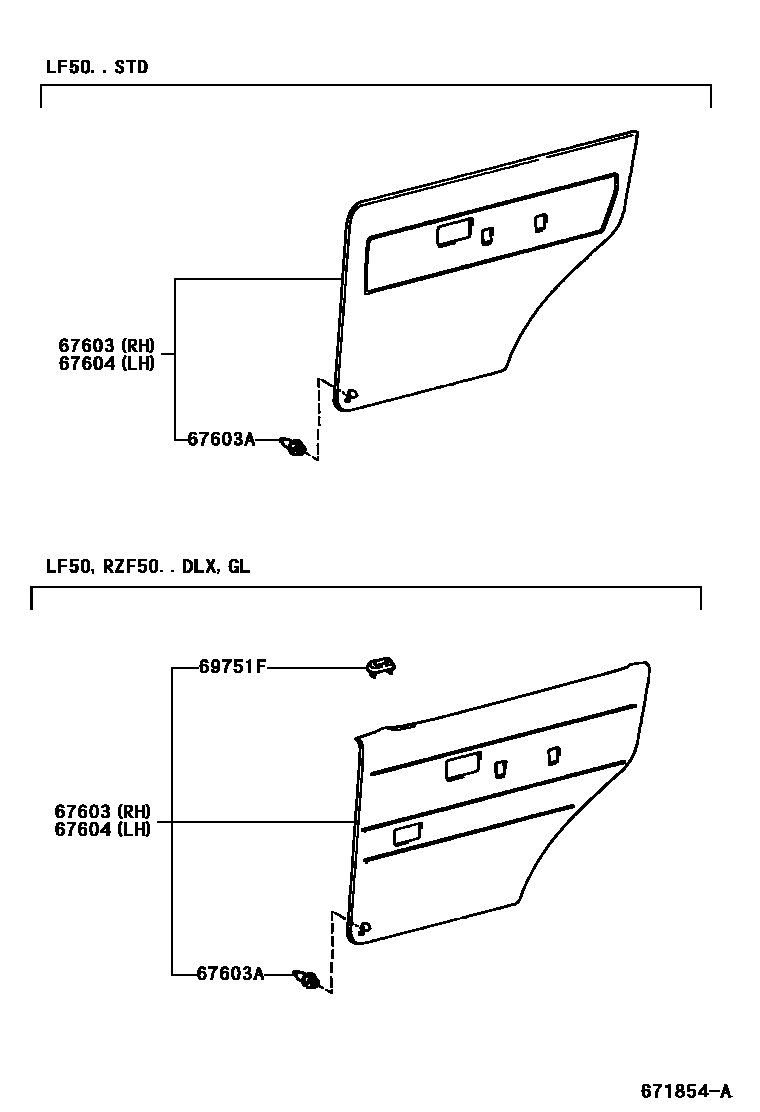

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-0B180-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main67630-0B190-B0iLF50..DLX199912-200209

BLUISH GRAY,TRIM1#

main67630-0B200-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main67630-0B380-B2iLF50..DLX199912-200209

GST PACKAGE,BLUISH GRAY,TRIM1#

main67630-0B770-B0iLF50,RZF50..STD200209-200412

BLUISH GRAY,TRIM1#

main67630-0B790-B0iLF50,RZF50..GL200209-200412

BLUISH GRAY,TRIM1#

main67630-0B810-B1iLF50,RZF50..DLX200209-200412

BLUISH GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12050×22iLF50,RZF50..DLX,GL; LF50..STD199912-200209

main90467-10161×22iLF50,RZF50..DLX,GL; LF50,RZF50..STD200209-200310

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-0B180-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main67640-0B190-B0iLF50..DLX199912-200209

BLUISH GRAY,TRIM1#

main67640-0B200-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main67640-0B380-B2iLF50..DLX199912-200209

GST PACKAGE,BLUISH GRAY,TRIM1#

main67640-0B770-B0iLF50,RZF50..STD200209-200412

BLUISH GRAY,TRIM1#

main67640-0B790-B0iLF50,RZF50..GL200209-200412

BLUISH GRAY,TRIM1#

main67640-0B810-B1iLF50,RZF50..DLX200209-200412

BLUISH GRAY,TRIM1#

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-0B030-B0×2iLF50,RZF50..DLX199912-200412

BLUISH GRAY,TRIM1#

4 parts on this diagram · 4 diagrams in section
