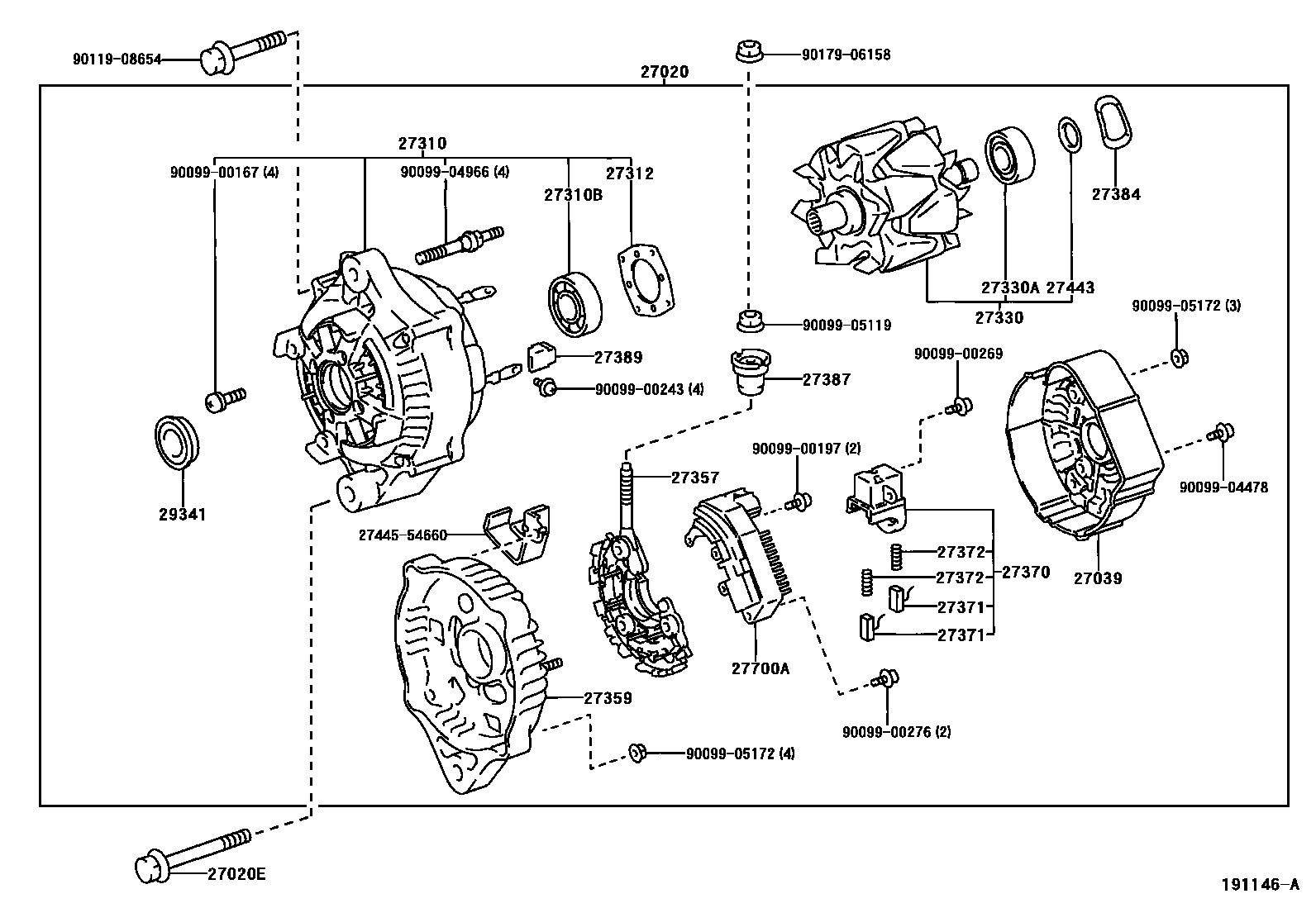

ALTERNATOR

0001 112V 55A, 70A 0002 112V 55A, 70A 0003 112V 70A

27020ALTERNATOR ASSY

main27060-54280i2L..LF50..DLX,STD199912-200209

12V 55A

main27060-54290i2L..LF50..DLX199912-200010

12V 70A

main27060-54370i2L..LF50..DLX,GL200010-200209

12V 70A

main27060-54410i2L..LF50..DLX,STD200209

12V 55A

main27060-54440i2L..LF50..DLX,GL200209

12V 70A

main27060-75150i1RZE..RZF50200201

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10221i1RZE..RZF50200201-200412

main90105-10287i2L..LF50199912-200412

27039COVER, ALTERNATOR REAR END

main27039-16380i2L..LF50199912-200209

main27039-70470i2L..LF50200209-200412

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54440i2L..LF50..DLX,STD199912-200209

12V 55A

main27310-54500i2L..LF50..DLX,GL200111-200209

12V 70A

main27310-54520i2L..LF50..DLX,GL200209-200412

12V 70A

main27310-54630i2L..LF50..DLX199912-200110

12V 70A

main27310-54880i2L..LF50..DLX,STD200209-200412

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2L..LF50200209-200412

27312PLATE, RETAINER

main27312-64130i2L..LF50200209-200412

27330ROTOR ASSY, ALTERNATOR

main27330-54860i2L..LF50..DLX,STD200209

12V 55A

main27330-64130i2L..LF50199912-200209

main27330-64190i2L..LF50..DLX,GL200209

12V 70A

main27330-67100i1RZE..RZF50200201

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2L..LF50199912-200412

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13360i2L..LF50..DLX,STD199912-200209

12V 55A

main27357-16380i2L..LF50..DLX,GL199912-200209

12V 70A

main27357-23040i2L..LF50200209

main27357-67100i1RZE..RZF50200201

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16182i2L..LF50199912-200209

main27359-54420i2L..LF50200209-200412

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i1RZE..RZF50200201

main27370-58320i2L..LF50199912-200209

main27370-75060i2L..LF50200209

27371BRUSH, ALTERNATOR

main27371-70300×2i2L..LF50199912-200209

27372SPRING, ALTERNATOR BRUSH

main27372-87501×2i2L..LF50199912-200209

27384WASHER

main27384-16380i2L..LF50199912-200209

main27384-50030i2L..LF50200209-200412

27387INSULATOR, TERMINAL

main27387-42021i2L..LF50200209-200412

main27387-70171i2L..LF50199912-200209

27389INSULATOR, TERMINAL

main27389-42010×4i2L..LF50200209

main27389-63020×4i2L..LF50199912-200209

27443COVER, ALTERNATOR BEARING

main27443-63020i2L..LF50199912-200412

27700AREGULATOR ASSY, GENERATOR

main27700-50030i2L..LF50..DLX199912-200010

12V 70A

main27700-62030i2L..LF50..DLX,STD199912

12V 55A

main27700-75020i1RZE..RZF50200201

29341SEAL, ALTERNATOR OIL

main29341-64130i2L..LF50200209

2744554660

main27445-54660

9009900167

main90099-00167

9009900197

main90099-00197

9009900243

main90099-00243

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905172

main90099-05172

9011908654

main90119-08654

9017906158

main90179-06158

31 parts on this diagram · 3 diagrams in section
