VENTILATION HOSE

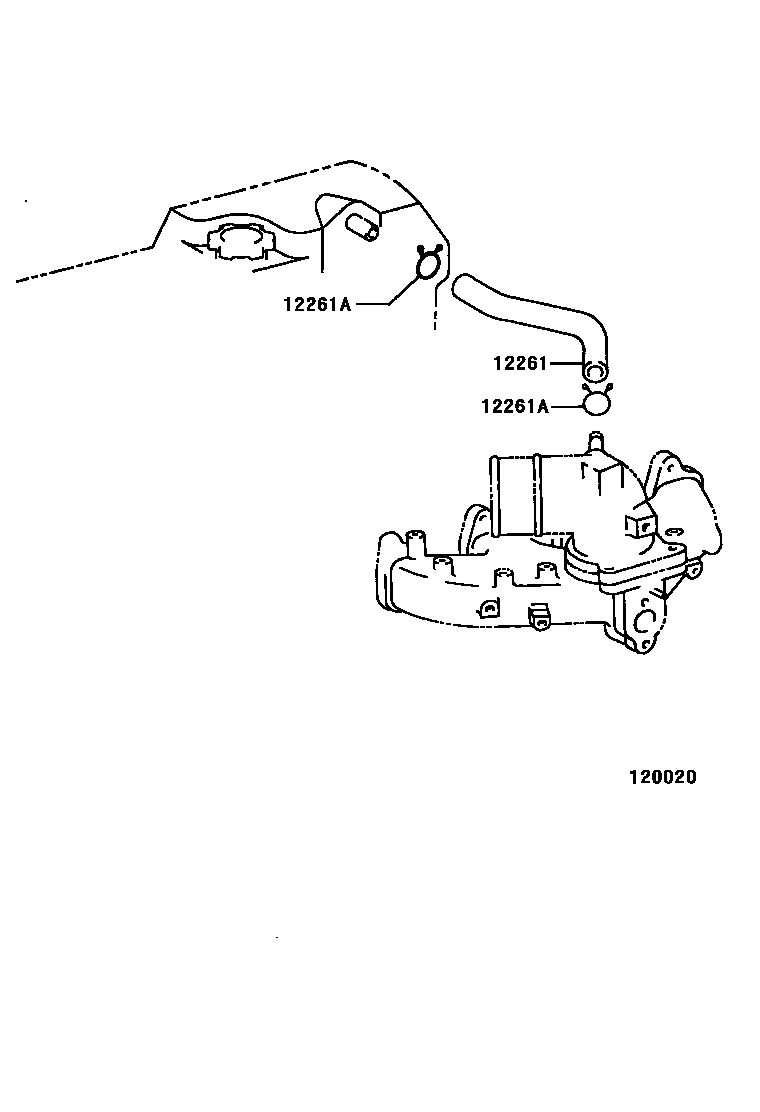

Parts diagram

12261HOSE, VENTILATION

main12261-05020i199912-200412

(L)

main12261-54080i199912-200412

(J)

main12262-75060i200201-200412

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001×2i200201-200412

main90467-18003×2i199912-200412

2 parts on this diagram · 2 diagrams in section
