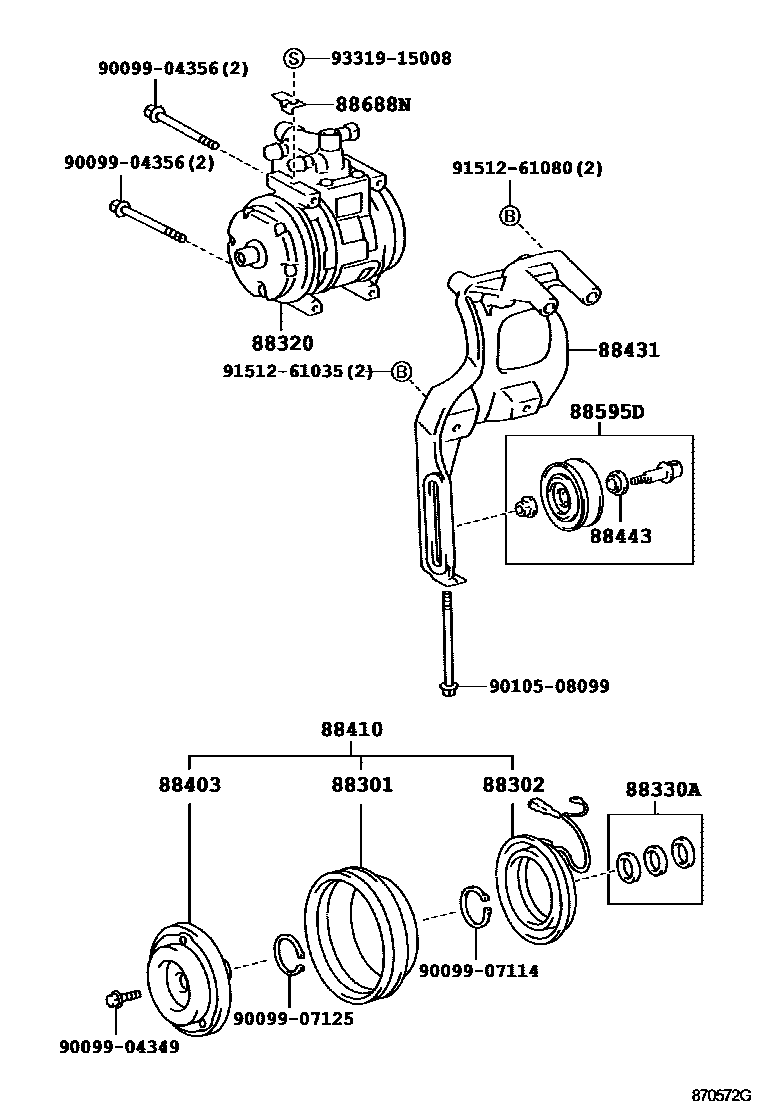

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1W(P0WER STEERING) 0002 1W/O(P0WER STEERING) 0003 1 0004 1 0005 1W(POWER STEERING) 0006 1W/O(POWER STEERING) 0007 1 0008 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150199911-200612

main88412-22070199612-200208

main88412-30430199612-200707

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310199612-199708

main88411-2A030199708-200707

88320COMPRESSOR ASSY, COOLER

main88320-0B010199612-200208

main88320-0B020199612-200208

main88320-0B030199810-200501

main88320-0B040199902-200707

main88320-0B050199911-200612

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020199612-200406

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290199612-200707

88410CLUTCH ASSY, MAGNET

main88410-0B010199810-200501

main88410-22480199612-200707

main88410-34040199911-200612

main88410-60330199612-200208

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88345-38010199612-200707

main88431-0B010199801-200406

main88431-0B030200001-200405

main88431-0B040199804-200212

main88431-26320199911-200612

main88431-35170200001-200405

main88431-38010199902-200707

88443COLLAR, IDLE PULLEY

main88443-36010200208-200707

88595DPULLEY ASSY, IDLE

main88440-0B010199612-200406

main88440-0B020199612-200406

main88440-0B060199804-200503

main88440-0B080199804-200212

main88440-26070200001-200405

main88440-26100199911-200612

main88440-35020199612-200707

88688NBRACKET, COOLER

main88688-25200199911-200612

main88688-2D770199612-200208

main88688-33260199902-200707

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9010508099

main90105-08099

9151261035

main91512-61035

9151261080

main91512-61080

9331915008

main93319-15008

18 parts on this diagram · 8 diagrams in section
