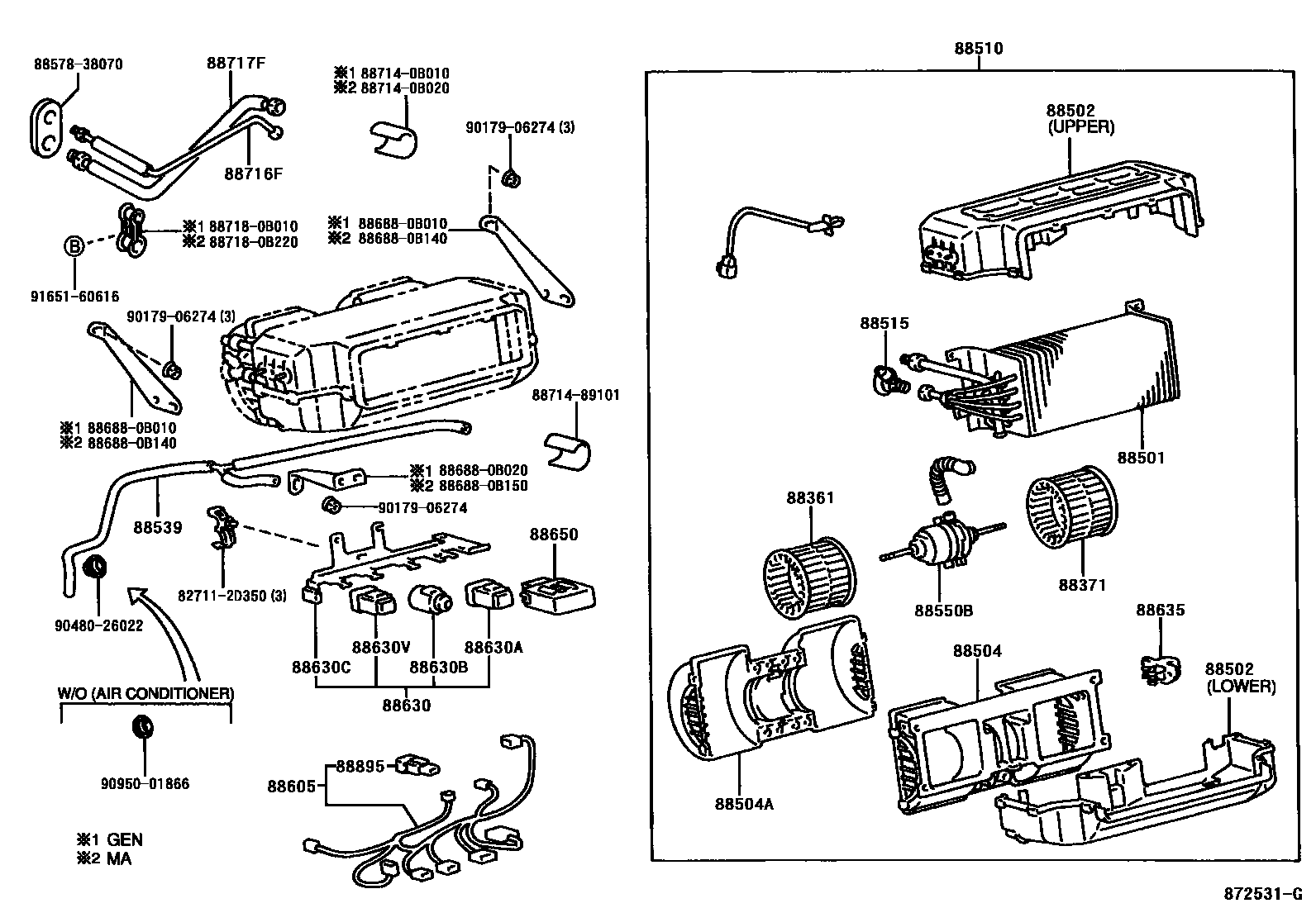

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT UNIT 0004 1FRONT UNIT 0005 1FRONT UNIT 0007 1FRONT UNIT 0008 1FRONT UNIT 0010 1FRONT UNIT 0011 1FRONT UNIT 0012 1REAR UNIT 0013 1O-RING

88361FAN, COOLER BLOWER, NO.1

main87105-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

88371FAN, COOLER BLOWER, NO.2

main87105-0B020iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0B030iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

main88501-0B040iKF80..MA200212-200503

main88501-0B060iKF82,RZF82..GL..PHL200211-200501

main88501-0B070iKF82..VN200210-200512

main88501-0B120iLF81,85,RZF80,81,85..SA..RHD200306-200503

88502CASE SUB-ASSY, COOLING UNIT

main88502-0B010iKF60,7#,8#,LF80,82,RZF81..GEN200208-200612

UPPER

main88502-0B020iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

LOWER

main88502-8C002iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

UPPER

main88502-8C003iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

LOWER

88504CASE SUB-ASSY, COOLER BLOWER

main88504-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

88504ACASE SUB-ASSY, BLOWER

main88504-0B020iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

FRONT

main88504-0B030-A0iKF72,82,LF82,RZF81..GL..RHD200208-200406

IVORY,TRIM4#,RH REAR

main88504-0B030-B0iKF72,82,LF82..DLX..RHD200208-200405

LT. BLUISH GRAY,TRIM1#,RH REAR

main88504-0B040-A0iKF72,82,LF82,RZF81..GL..RHD200208-200406

IVORY,TRIM4#,LH REAR

main88504-0B040-B0iKF72,82,LF82..DLX..RHD200208-200405

LT. BLUISH GRAY,TRIM1#,LH REAR

main88504-0B070iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

RH REAR

main88504-0B080iKF82..GL..VN200210-200512

LH REAR

main88504-0B090iKF80,RZF81..GLX199810-200211

RH REAR

main88504-0B100iKF80,RZF81..GLX199810-200211

LH REAR

main88544-0B050iKF80..MA200212-200503

RH REAR

main88544-0B060iKF80..MA200212-200503

LH REAR

88510UNIT ASSY, COOLER

main88510-0B010iKF60,7#,8#,LF80,82,RZF81..GEN200208-200612

main88510-0B050iKF80..MA200212-200503

main88510-0B060iKF80..GLX199810-200102

main88510-0B061iKF82..GL..PHL200211-200501

main88510-0B070iKF82..VN200210-200512

main88510-0B100iLF81,85,RZF80,81,85..SA..RHD200306-200503

main88510-0B110iRZF82200211-200501

88515VALVE, COOLER EXPANSION

main88515-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

main88515-0B070iKF80..MA200212-200503

main88515-0B130iKF80,RZF81..GLX199810-200211

main88515-0B140iKF82..VN200210-200512

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0B010iLF80..GL..GEN199801-199809

main88539-0B030iKF80..MA200212-200503

main88539-0B060iKF82..GL..PHL200211-200501

main88539-0B070iLF81,RZF81..SA..LHD;KF60,80..(SCB,SHRV)..LHD200210

main88539-0B120iRZF84,85..LHD200210-200612

main88539-0B130iLF81,RZF80,81..SA..RHD200306-200503

main88539-0B140iLF85,RZF85..RHD200306-200503

main88539-0B150iRZF81..LHD200102-200211

main88539-0B160iLF85..LHD200306-200503

88550BMOTOR ASSY, BLOWER

main88550-0B010iLF60,80..4F;KF60,70,80..STD..RHD199909-200208

DEALER OPTION

main88550-0B011iKF72,8#,LF82,RZF81..GEN; LF80..GEN200208-200406

MAKER OPTION

main88550-0B020iKF80,LF80..MA199804-199909

main88550-0B021iKF80,LF80..MA199909-200212

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-0B010iKF60,70,80,LF60,80..STD..RHD199612-200001

DEALER OPTION

main88605-0B060iKF70,80,LF70,80..DLX..CBU..GEN; KF70,80,LF80..GL..GEN199612-200001

W(DUAL AIR CONDITIONER)

main88605-0B070iKF60,LF60..RHD200001-200208

main88605-0B090iLF60;KF60..SD200005-200208

W(BOOST VENTILATOR)

main88605-0B100iKF80..DLX..MA199804-200103

main88605-0B110iKF80..GL..MA199804-200103

main88605-0B111iKF80..MA200212-200503

main88605-0B130iLF80..MA199804-200103

main88605-0B131iLF80..MA200103-200212

main88605-0B150iKF80..GLX199810-200102

main88605-0B151iKF82..GL..PHL200211-200501

main88605-0B170iKF80..(DLX,GL)..TAIW199902-200210

W(DUAL AIR CONDITIONER)

main88605-0B180iKF82..DLX..VN200302-200601

main88605-0B250iRZF84,85..LHD200210-200612

main88605-0B260iKF72,82..DLX..RHD200208-200406

W(SINGLE AIR CONDITIONER)

main88605-0B270iKF72,82..GL..RHD200208-200406

main88605-0B290iRZF80,81,85..SA..RHD200306-200503

main88605-0B300iLF81,85..RHD200306-200503

main88605-0B310iLF81,85..LHD200306-200503

main88605-0B330iLF82..DLX..RHD200208-200405

main88605-0B340iRZF71,81..RHD200010-200208

main88605-0B350iRZF81..LHD200102-200211

main88605-0B370iRZF81..LHD200306-200503

88630RELAY ASSY, COOLER

main88630-0B010iKF72,8#,LF72,80,82..(DLX,STD)..CBU..GEN200010-200208

main88630-0B020iKF72,82,LF80,82,RZF71,81..GL..GEN199801-200208

main88630-0B050iLF60,80..STD199612-199804

main88630-0B060iKF80..DLX..MA199804-200103

main88630-0B070iKF80,LF80..GL..MA199804-200212

main88630-0B110iKF80,RZF81..GLX199810-200211

main88630-0B140iKF82..GL..VN200210-200512

88630ARELAY ASSY, COOLER

main88630-0B030iKF60,7#,8#,LF60,80,82,RZF81..GEN200208-200612

main88630-0B090iKF80..MA200212-200503

main88630-0B220iLF81,85,RZF80,81,85..SA..RHD200306-200503

main88630-0B230iLF81,85,RZF81..LHD200306-200503

88630BRELAY ASSY, COOLER

main88630-0B040iKF60,7#,8#,LF80,82,RZF81..GEN200208-200612

main88630-0B080iKF80,LF80..MA199804-200212

88630CBRACKET, COOLER RELAY

main88630-0B150iKF80..(DLX,STD)..(TAIW,VN);KF60,80,RZF81..(SCB,SRF)..(GLX,STD)..LHD200102-200302

main88688-0B040iKF70..(4FC,5F)..CBU;KF60,72,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199804-200208

main88688-0B190iKF80..MA200212-200503

88630VRELAY ASSY

main88630-0B030iKF7#,8#,LF80,82,RZF71,81..GL..GEN199612-200208

main88630-0B090iKF80,LF80..GL..MA199804-200212

88635RESISTOR, COOLER UNIT BLOWER

main88635-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

main88635-0B020iKF80..MA200212-200503

main88635-0B030iKF82,RZF82..GL..PHL200211-200501

main88635-0B040iKF82..VN200210-200512

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-0B080iKF70,80..DLX..CBU..GEN199612-200001

W(DUAL AIR CONDITIONER)

main88650-0B081iKF70,80..GL..GEN199612-200001

W(DUAL AIR CONDITIONER)

main88650-0B090iKF80..GEN200001-200208

main88650-0B101iLF70,80..5F..CBU..GEN199612-200001

main88650-0B110iLF80,82..GEN200208-200406

main88650-0B120iKF80..DLX..MA199804-200103

main88650-0B130iKF80..GL..MA199804-200103

main88650-0B140iLF80..MA199804-200103

main88650-0B141iLF80..MA200103-200212

main88650-0B150iKF80..GLX199810-200102

main88650-0B151iKF80..GLX200102-200211

main88650-0B160iKF80..SHRV..(DLX,GL)200210

W(DUAL AIR CONDITIONER)

main88650-0B170iKF80..DLX..VN199909-200302

main88650-0B200iRZF84,85..LHD199911-200210

main88650-0B210iKF72,82..CBU; LF72,82..DLX..CBU200001-200208

W(DUAL AIR CONDITIONER)

main88650-0B250iRZF80,81,85..SA200306-200503

main88650-0B260iLF81,85200306-200503

main88650-0B270iRZF81..GEN200208-200406

main88650-0B280iRZF82200211-200501

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..CBU..GEN199612-200208

main88716-0B340iKF80..MA200212-200503

88717FPIPE, COOLER REFRIGERANT SUCTION, F

main88717-0B010iKF60,7#,8#,LF80,82,RZF81..GEN200208-200612

main88717-0B130iKF80,LF80..MA199804-200212

88895HOLDER, FUSE

main88895-0B020iKF7#,8#,LF80,82,RZF71,81..GL..GEN199612-200208

main88895-0B050iKF80..MA200212-200503

main88895-0B060iKF82..GL..VN200210-200512

main88895-0B070iKF80,RZF81..GLX199810-200211

main88895-0B080iKF80..DLX..VN199909-200302

main88895-0B120iLF85..LHD200306-200503

main88895-0B130iRZF81..SA;LF81,85,RZF80,85..RHD200306-200503

827112D350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D350

8857838070PAKING, COOLER AIR DUCT

main88578-38070

886880B010BRACKET, COOLER DIAPHRAGM

main88688-0B010

886880B020BRACKET, COOLER DIAPHRAGM

main88688-0B020

886880B140BRACKET, COOLER DIAPHRAGM

main88688-0B140

886880B150BRACKET, COOLER DIAPHRAGM

main88688-0B150

887140B010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-0B010

887140B020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-0B020

8871489101HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-89101

887180B010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B010

887180B220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B220

9017906274

main90179-06274

9048026022

main90480-26022

9095001866

main90950-01866

9165160616

main91651-60616

36 parts on this diagram · 9 diagrams in section
