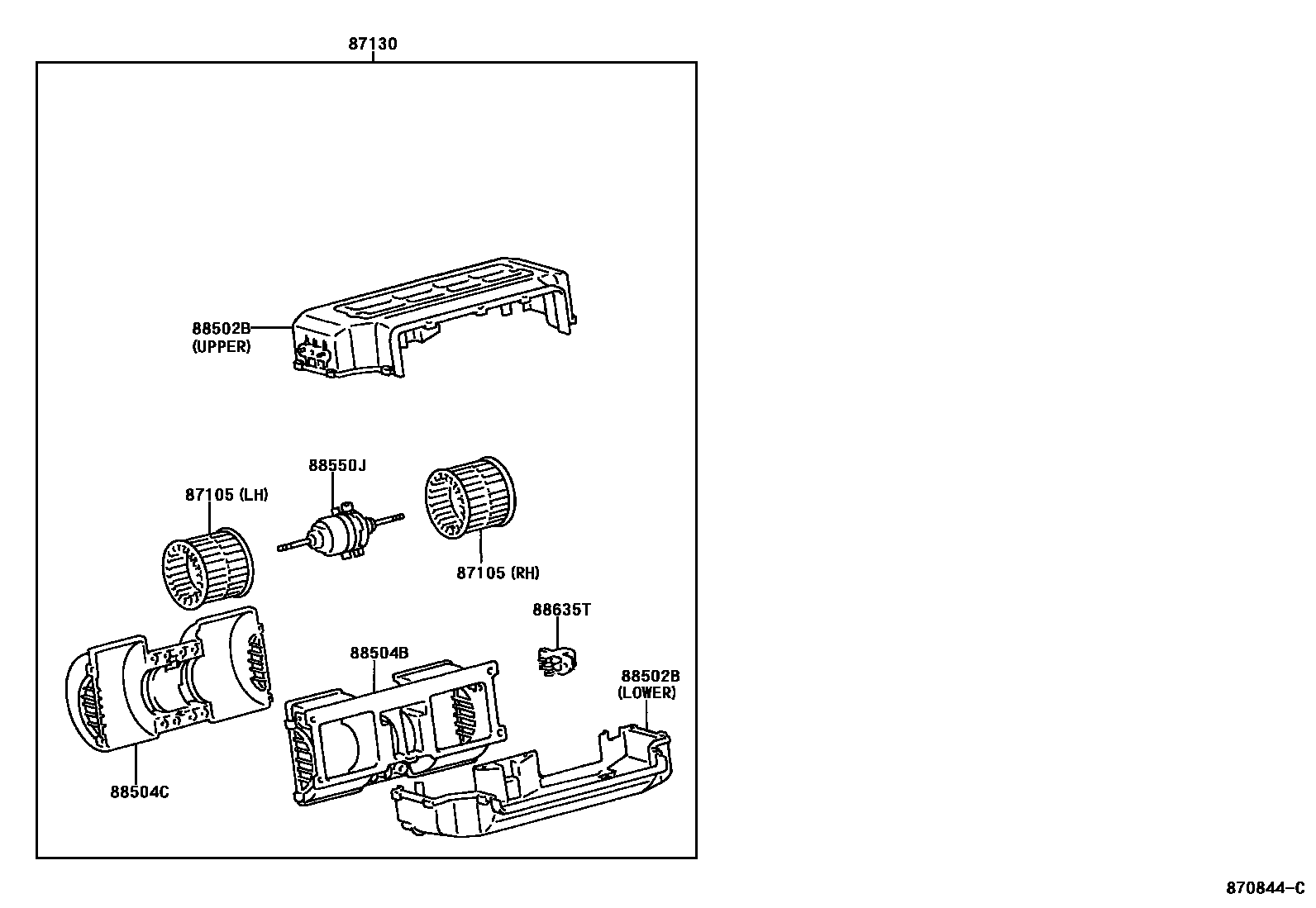

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0003 1 0004 1 0007 1 0008 1 0009 1

87105FAN SUB-ASSY, HEATER BLOWER

main87105-0B010iLF60,80..STD199612-199804

LH

main87105-0B020iLF60,80..STD199612-199804

RH

main87105-14020iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

87130BLOWER ASSY, HEATER, FRONT

main87130-0B010iLF60;KF60..SD200005-200208

main87130-0B020iKF82..VN200210-200512

main87130-0B040iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

88502BCASE SUB-ASSY, COOLING UNIT

main88502-0B010iLF60,80..STD199612-199804

UPPER

main88502-0B020iLF60;KF60..SD200208-200612

LOWER

88504BCASE SUB-ASSY, BLOWER

main88504-0B010iKF60,LF60..RHD199804-200005

88504CCASE SUB-ASSY, BLOWER

main88504-0B020iLF60,80..STD199612-199804

88550JMOTOR ASSY, BLOWER

main88550-0B010iKF60,LF60..RHD199804-199909

main88550-0B011iLF60;KF60..SD200208-200612

88635TRESISTOR, BLOWER

main88635-0B010iLF60;KF60..SD200005-200208

main88635-0B040iLF61,81,RZF61,81..LHD200306-200503

7 parts on this diagram · 6 diagrams in section
