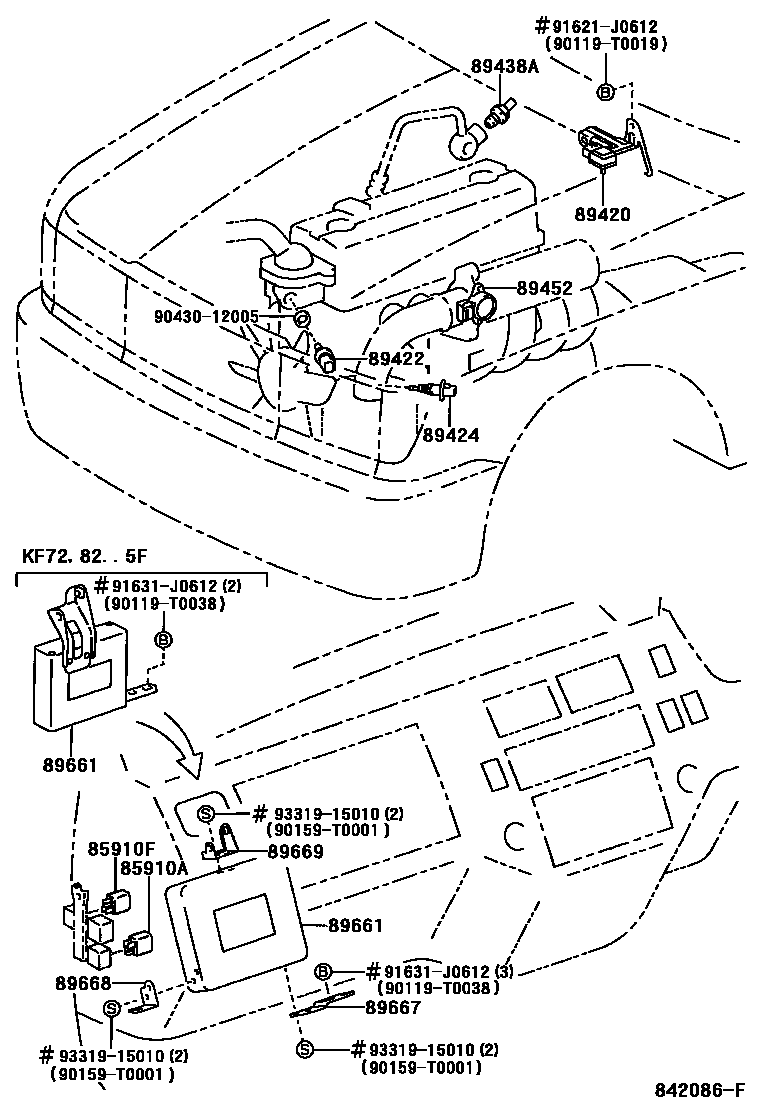

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1 0005 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87008iKF80..MA,PHL,TAIW,VN;KF60,72,82,RZF84,85..(LUB,T2)..(GEN,TAIW)199804-200302

main90987-02012iRZF61,80,81,85..GEN,SA200208-200503

85910FRELAY, COMPUTER (FOR EFI)

main90080-87008iKF80..MA,PHL,TAIW,VN;KF60,72,82,RZF84,85..(LUB,T2)..(GEN,TAIW)199804-200302

main90987-02012iRZF61,80,81,85..GEN,SA200208-200503

89420SENSOR ASSY, VACUUM

main89420-38010iRZF81;KF80..MA,PHL,TAIW,VN;KF60,72,82,RZF71,80,84,85..(LUB,T2)..(GEN,SA,TAIW)199804-200306

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRZF61,80,81,84,85..GEN,SA,TAIW200208-200612

main89422-35010iKF82..VN200208-200512

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZF81;KF80..MA,PHL,TAIW,VN;KF60,72,82,RZF71,80,84,85..(LUB,T2)..(GEN,SA,TAIW)199804-200306

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iKF60,80..MA,PHL,TAIW199804-199903

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-0A010iKF80..MA,PHL,TAIW,VN;KF60,72,82..(LUB,T2)..(GEN,TAIW)199811-200302

(L)

main89452-22080iRZF82200208-200409

main89452-33030iKF80..MA,PHL,TAIW,VN;KF60,72,82..(LUB,T2)..(GEN,TAIW)199811-200302

(J)

89661COMPUTER, ENGINE CONTROL

main89660-0B020iKF72,82..SRF..5F200208-200409

main89660-0B030iKF60,80..5F..TAIW199902-200210

main89661-0B010iKF82..4FC..LHD200210-200409

main89661-0B020iKF82..4FC..RHD200208-200406

main89661-38010iKF80..5F..MA199804-200212

main89661-38020iKF80..4FC..RHD200212-200503

main89661-38030iRZF85..5F..LHD200210-200612

main89661-38040iRZF84,85..4FC200210-200612

main89661-38050iRZF80200306-200503

PART NUMBER LABEL=89661-38050

main89661-38060iRZF85..RHD200004-200306

PART NUMBER LABEL=89661-38060

main89661-38070iRZF81,82..4FC..GL200208-200409

main89661-38090iRZF81,82..5F..GL200208-200409

main89661-38110iRZF61,81..SA200306-200503

main89661-38120iRZF80200207-200306

PART NUMBER LABEL=89661-38120

main89661-38130iRZF85..RHD200207-200306

PART NUMBER LABEL=89661-38130

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0B010iKF80..SHRW..TAIW200208-200612

main89667-38010iKF80..MA199804-200212

main89667-38020iRZF61,80,81,84,85..GEN,SA,TAIW200208-200612

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0B010iKF72,82..4FC;KF80..4FC..LHD199810-200211

main89668-38010iKF80..MA199804-200212

main89668-38020iRZF82200208-200409

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-0B010iKF80..SHRW..TAIW200208-200612

main89669-38010iRZF82200208-200409

90119T0019

main90119-T0019

90119T0038

main90119-T0038

90159T0001

main90159-T0001

9043012005

main90430-12005

91621J0612

main91621-J0612

91631J0612

main91631-J0612

9331915010

main93319-15010

18 parts on this diagram · 4 diagrams in section
