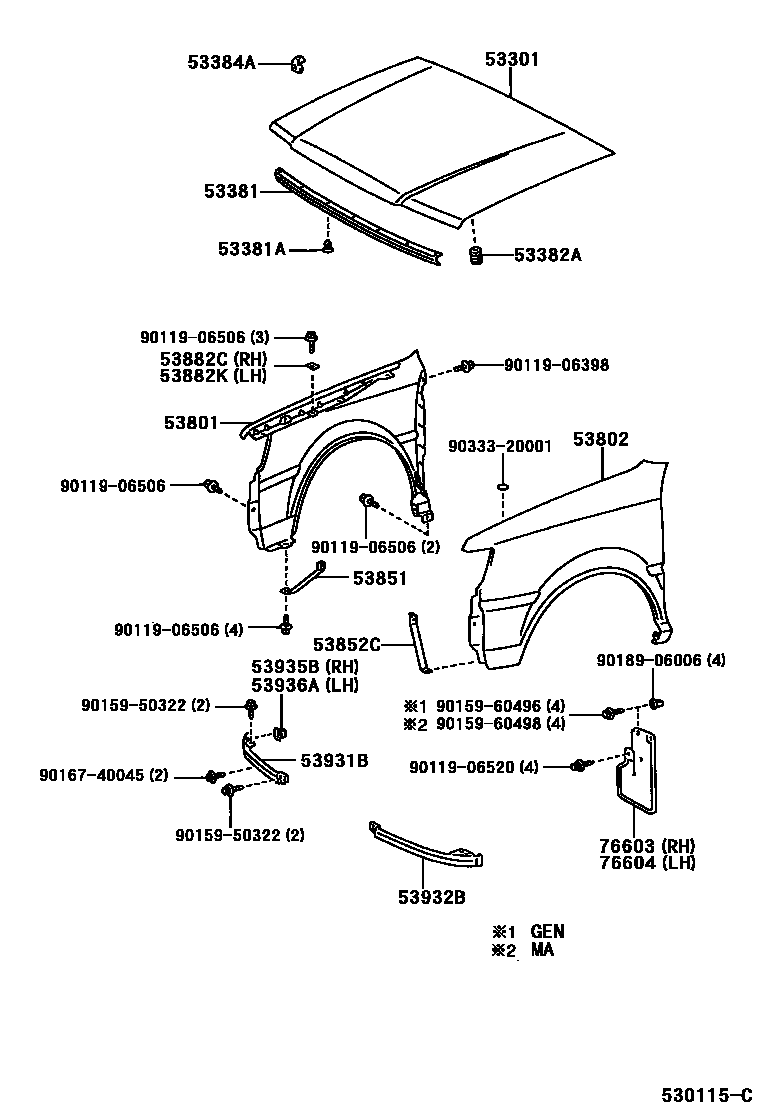

HOOD & FRONT FENDER

0001 1 0004 1 0010 1

53301HOOD SUB-ASSY

main53301-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..RHD199612-200612

main53301-0B020iKF82,LF82,RZF82..LHD;KF60,80,LF61,81,85,RZF61,80,81,84,85..SA,TAIW199810-200707

main53301-0B040iKF80,LF82,RZF81..GL..RHD200208-200503

LUXURY

main53301-0B050iRZF82200211-200501

LUXURY

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0B010iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,VN199612-200612

main53381-0B020iKF80,LF80,RZF81..PHL199810-200501

main53381-0B030iRZF84,85..LHD;KF80..SHRW..TAIW199902-200612

main53381-0B050iKF80..MA200103-200503

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90083-46009iKF60,80,RZF84,85..TAIW199902-200612

main90467-08028iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..GEN,MA,PHL,SA,VN199612-200612

53382ABUMPER, HOOD, REAR

main53382-0B010iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,VN199612-200612

main53382-0B020iKF60,80,LF80,RZF81,84,85..PHL,TAIW199810-200612

main53382-0B030iKF80..MA200103-200503

53384ABUMPER, FENDER TO HOOD

main53384-0B010iKF82,LF82,RZF82;KF60,7#,80,LF60,80,RZF81..GEN199612-200612

main53384-0B020iKF80..MA200103-200503

main53384-0B030iKF60,80,RZF84,85..TAIW199902-200612

53801FENDER SUB-ASSY, FRONT RH

main53801-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main53801-0B020iKF80..GL..TAIW199902-200707

main53801-0B030iKF80,LF80..PHL199810-200102

main53801-0B040iLF61,81,RZF61,80,81..SA200306-200503

main53801-0B070iKF80..GL199911-200707

main53801-0B070iKF82..GL..VN200408-200601

W(OVER FENDER)

main53801-0B080iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN200001-200612

main53801-0B110iRZF82200102-200501

main53801-0B120iLF85,RZF85..SA200306-200503

53802FENDER SUB-ASSY, FRONT LH

main53802-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main53802-0B020iKF60,80,LF61,81,YF60,80..(SA,TAIW,VN)..LHD199902-200707

main53802-0B030iKF80,LF80..PHL199810-200102

main53802-0B040iLF61,81,RZF61,80,81..SA200306-200503

main53802-0B070iKF80..GL199911-200707

main53802-0B070iKF82..GL..VN200408-200601

W(OVER FENDER)

main53802-0B080iKF60,7#,8#,LF60,72,80,82,RZF71,81..RHD200001-200612

main53802-0B120iLF85,RZF85..SA200306-200503

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200103

53852CBRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200103

53882CSEAL, FRONT FENDER MAIN

main53882-16030iKF82,LF82..RHD;KF60,7#,80,LF6#,72,80,81,85,RZF71,80,81,85,YF60,80..GEN,MA,PHL,SA,VN199612-200612

53882KSEAL, FRONT FENDER

main53882-16030iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,MA,VN199612-200612

53931BPANEL, FRONT END, RH

main53903-0B020-A0iKF60,80..(DLX,STD)..TAIW199902-200208

WHITE,045

main53903-0B020-D0iKF80..STD..LHD199902-200208

RED MC,3H4

main53903-0B020-D0iKF80..GL..TAIW199902-199911

RED MC,2BB

main53903-0B020-D0iKF80..GL..TAIW199902-199911

RED MC,2BB ,3H4

main53903-0B020-D0iKF80..STD..LHD200003-200208

RED MC,2HA

main53903-0B020-D0iKF80..STD..LHD200003-200208

RED MC,2HA ,3H4

main53903-0B020-G0iKF80,RZF84,85..(DLX,GL)..TAIW200003-200208

DK.GREEN M.M.,2HB

main53903-0B020-G0iKF80..(DLX,GL)..TAIW199902-199911

DK.GREEN M.M.,2DY

main53903-0B020-H0iKF80..GL..TAIW199902-199911

DEEP TEAL ME,2DZ ,752

main53903-0B020-H0iKF80..(DLX,STD)..TAIW199902-200208

DEEP TEAL ME,752

main53903-0B020-H0iKF80..DLX..TAIW199902-199911

DEEP TEAL ME,2DZ

main53903-0B020-H0iKF80..STD..LHD200003-200208

DEEP TEAL ME,2HC

main53903-0B020-H0iKF80..STD..LHD200003-200208

DEEP TEAL ME,2HC ,752

main53903-0B020-J0iKF60..LHD199902-200208

BLUE,8B2

main53903-0B020-J1iKF80..GL..TAIW199902-199911

BLUE ME.,2FB

main53903-0B020-J1iRZF85..LHD200108-200208

BLUE ME.,2HD

main53903-0B900iKF80,LF80..MA199612-200103

main53903-0B901iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,MA,PHL200001-200406

main53903-0B902iLF61,RZF61199902-200503

53932BPANEL, FRONT END, LH

main53904-0B020-A0iKF60,80..(DLX,STD)..TAIW199902-200208

WHITE,045

main53904-0B020-D0iKF80..DLX..TAIW199902-200208

RED MC,3H4

main53904-0B020-D0iKF80..GL..TAIW199902-199911

RED MC,2BB

main53904-0B020-D0iKF80..GL..TAIW199902-199911

RED MC,2BB ,3H4

main53904-0B020-D0iKF80..STD..LHD200003-200208

RED MC,2HA

main53904-0B020-D0iKF80..STD..LHD200003-200208

RED MC,2HA ,3H4

main53904-0B020-G0iKF80,RZF84,85..(DLX,GL)..TAIW200003-200208

DK.GREEN M.M.,2HB

main53904-0B020-G0iKF80..(DLX,GL)..TAIW199902-199911

DK.GREEN M.M.,2DY

main53904-0B020-H0iKF80..DLX..TAIW200003-200208

DEEP TEAL ME,2HC

main53904-0B020-H0iKF80..GL..TAIW199902-199911

DEEP TEAL ME,2DZ

main53904-0B020-H0iKF80,RZF84,85..GL..TAIW199902-200208

DEEP TEAL ME,752

main53904-0B020-H0iKF80,RZF84,85..GL..TAIW200003-200208

DEEP TEAL ME,2HC ,752

main53904-0B020-H0iKF80..DLX..TAIW199902-199911

DEEP TEAL ME,2DZ ,752

main53904-0B020-J0iKF60..LHD199902-200208

BLUE,8B2

main53904-0B020-J1iKF80..GL..TAIW199902-199911

BLUE ME.,2FB

main53904-0B020-J1iRZF85..LHD200108-200208

BLUE ME.,2HD

main53904-0B900iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200103

main53904-0B901iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,MA,PHL200001-200406

main53904-0B902iLF61,RZF61199902-200503

53935BPROTECTOR, FRONT END PANEL

main53935-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL,GLX)..(GEN,PHL)199612-200102

main53935-20020iKF60,LF6#,RZF61..GEN,SA200208-200612

main53935-20020-B0iKF80..GL..TAIW199902-199911

LIGHT GRAY,2BB ,2DY ,2DZ ,2FB

main53935-20020-B0iKF80..GL..TAIW199902-199911

LIGHT GRAY,045 ,2BB ,2DY ,2DZ ,3H4 ,752

main53935-20020-B0iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN200001-200212

LIGHT GRAY,TRIM1#

main53935-20020-B0iKF80..GL..VN199909-200108

LIGHT GRAY,2BD

main53935-20020-B0iKF60..LHD199902-200210

LIGHT GRAY,045 ,8B2

main53935-20020-B0iKF60..LHD199902-200210

LIGHT GRAY,045 ,3H4 ,752

main53935-20020-B0iRZF85..LHD199911-200210

LIGHT GRAY,1C0 ,2HA ,2HB ,2HC ,2HD

main53935-20020-B0iRZF85..LHD199911-200210

LIGHT GRAY,045 ,2HA ,2HB ,2HC ,3H4 ,752

main53935-20020-B0iRZF85..LHD199911-200210

LIGHT GRAY,1C0 ,2HA ,2HB ,2HC

main53935-20020-B0iKF80..DLX..VN199909-200302

LIGHT GRAY,1A0 ,6P2

main53935-20020-B0iKF80..GL..VN200108-200302

LIGHT GRAY,2BD ,2JC

main53935-20020-B0iLF61,81,85,RZF80,85,YF60,80..SA200004-200306

LIGHT GRAY,000

main53935-42010iKF80,LF80..MA199804-200103

53936APROTECTOR, FRONT END PANEL, LH

main53935-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL,GLX)..(GEN,PHL)199612-200102

main53935-42010iKF80,LF80..MA199804-200103

main53936-20010iKF60,LF6#,RZF61..GEN,SA200208-200612

main53936-20010-B0iKF80..DLX..TAIW199911-200210

LIGHT GRAY,1C0 ,2HA ,2HB ,2HC ,2HD

main53936-20010-B0iKF80..GL..TAIW199902-199911

LIGHT GRAY,2BB ,2DY ,2DZ ,2FB

main53936-20010-B0iKF80..GL..TAIW199902-199911

LIGHT GRAY,045 ,2BB ,2DY ,2DZ ,3H4 ,752

main53936-20010-B0iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN200001-200212

LIGHT GRAY,TRIM1#

main53936-20010-B0iKF80..GL..VN199909-200108

LIGHT GRAY,2BD

main53936-20010-B0iKF60..LHD199902-200210

LIGHT GRAY,045 ,8B2

main53936-20010-B0iKF60..LHD199902-200210

LIGHT GRAY,045 ,3H4 ,752

main53936-20010-B0iRZF85..LHD199911-200210

LIGHT GRAY,045 ,2HA ,2HB ,2HC ,3H4 ,752

main53936-20010-B0iRZF85..LHD199911-200210

LIGHT GRAY,1C0 ,2HA ,2HB ,2HC

main53936-20010-B0iKF80..DLX..VN199909-200302

LIGHT GRAY,1A0 ,6P2

main53936-20010-B0iKF80..GL..VN200108-200302

LIGHT GRAY,2BD ,2JC

main53936-20010-B0iLF61,81,85,RZF80,85,YF60,80..SA200004-200306

LIGHT GRAY,000

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-0B010iKF82..GL..VN199612-200612

main76621-0B020iKF82..GL..RHD;KF80..DLX..(TAIW,VN);KF7#,80,LF80,82,RZF71,80,81..GL..(GEN,SA,TAIW,VN)199612-200505

main76621-0B030iKF82,LF82..(DLX,STD)..PHL199810-200501

main76621-0B040iKF80..MA199804-200503

main76621-0B050iKF80..STD..LHD;KF60,LF61,81,RZF80,YF60,80..(DLX,STD)..(SA,TAIW)199902-200306

main76621-0B060iKF82,LF82,RZF82..GL..PHL199810-200501

main76621-0B080iKF80,LF85,RZF84,85..GL..(SA,TAIW)200210-200306

W(SPARE TIRE CARRIER = BACK DOOR)

main76621-0B080iLF85,RZF84,85199911-200210

main76621-0B080iKF82..GL..VN200408-200601

W(OVER FENDER)

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76621-0B080iLF85,RZF84,85199911-200210

main76621-0B080iKF80,LF85,RZF84,85..GL..(SA,TAIW)200210-200306

W(SPARE TIRE CARRIER = BACK DOOR)

main76621-0B080iKF82..GL..VN200408-200601

W(OVER FENDER)

main76622-0B010iKF82..GL..VN199612-200612

main76622-0B020iRZF80..GL199612-200505

main76622-0B030iKF82,LF82..(DLX,STD)..PHL199810-200501

main76622-0B040iKF80,LF80..MA199804-200503

main76622-0B050iKF80..STD..LHD;KF60,LF61,81,RZF80,YF60,80..(DLX,STD)..(SA,TAIW)199902-200306

main76622-0B060iKF80,LF80,RZF81..GLX199810-200501

9011906398

main90119-06398

9011906506

main90119-06506

9011906520

main90119-06520

9015950322

main90159-50322

9015960496

main90159-60496

9015960498

main90159-60498

9016740045

main90167-40045

9018906006

main90189-06006

9033320001

main90333-20001

26 parts on this diagram · 3 diagrams in section
