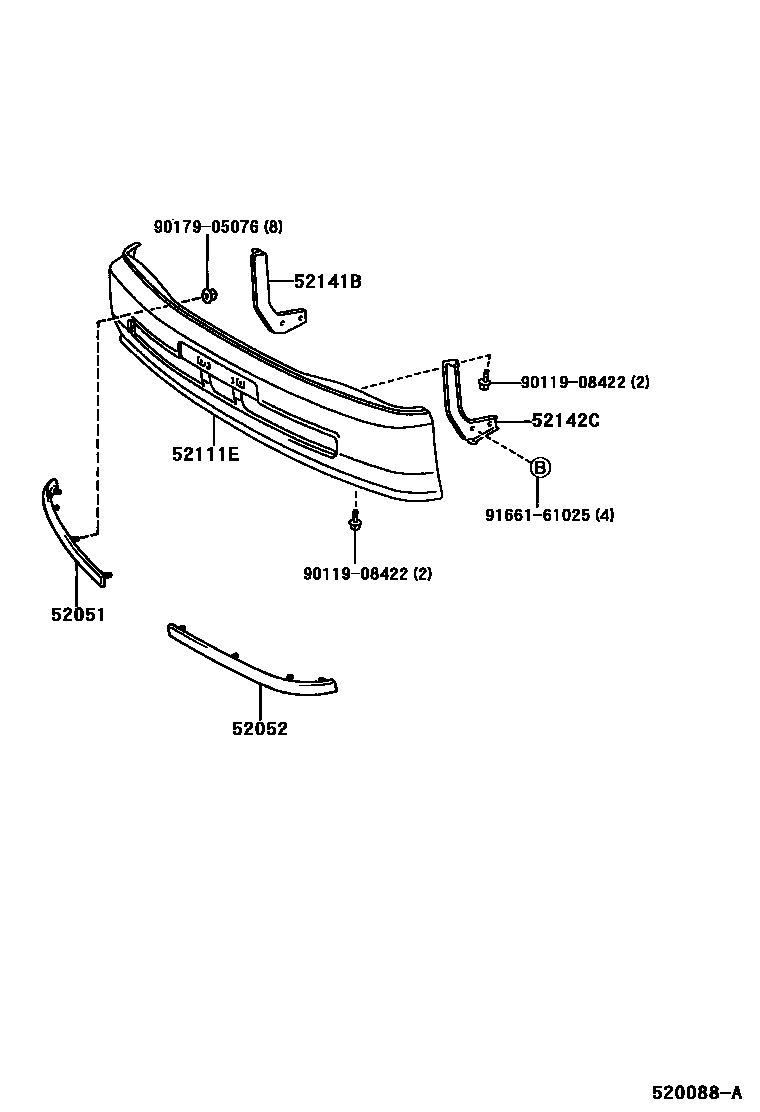

FRONT BUMPER & BUMPER STAY

0001 1 0004 1 0006 1 0008 1 0013 1 0014 1LUXURY

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-38010iKF80,LF80..MA199804-200103

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-38010iKF80,LF80..MA;KF80,LF80..GLX199804-200103

52111EBAR, FRONT BUMPER

main52101-0B900iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..(GEN,PHL)199612-200102

main52101-0B901iKF80,LF80..MA;KF80,LF80..GLX199804-200103

52141BSTAY, FRONT BUMPER

main52141-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200103

52142CSTAY, FRONT BUMPER, LH

main52082-0B020iKF82,LF82,RZF82..PHL200208-200503

main52082-0B030iKF82..VN;KF60,80,LF81,85,RZF80,81,84,85..SA,TAIW200210

main52142-0B010iKF80,LF80..MA199612-200103

main52142-0B020iKF60,80,LF85,RZF84,85..SA,TAIW,VN199902-200503

main52142-0B030iKF60..FD200001-200612

9011908422

main90119-08422

9017905076

main90179-05076

9166161025

main91661-61025

8 parts on this diagram · 6 diagrams in section
