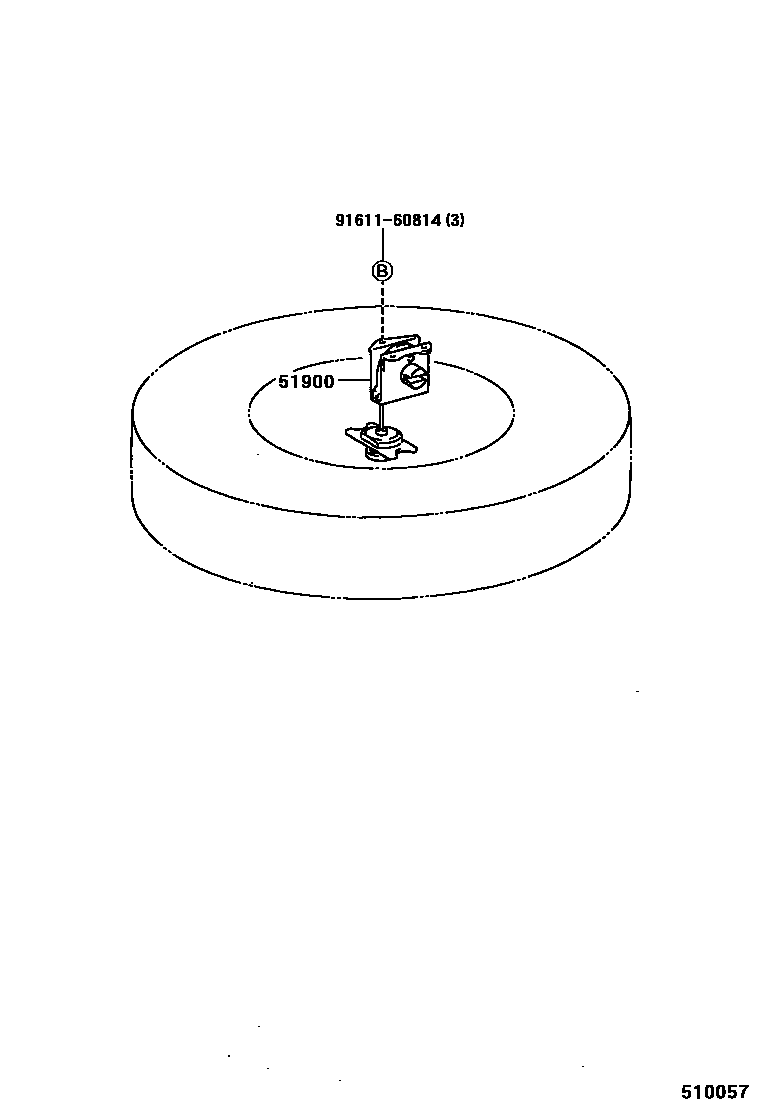

SPARE WHEEL CARRIER

0001 1FRAME TYPE 0002 1FRAME TYPE 0005 1BACK DOOR TYPE

51900CARRIER ASSY, SPARE WHEEL

main51900-0B010iLF61,81,85,RZF61,80,81,85..SA200306-200503

main51900-38030iKF60,7#,8#,LF82..(FD,LUB)..(DLX,STD)..RHD199612-200612

main51900-38040iRZF84,85..LHD;KF80..SHRW..TAIW199911-200612

main51900-38040iRZF84,85..LHD200010-200210

INDONESIA SPEC

main51900-38040iKF80..SHRV..GL200103-200210

W(195/70R14 TIRE)

main51900-38040iKF80..MA200212-200503

W(ALUMINUM WHEEL)

main51900-38040iKF82..GL..VN200408-200601

VIETNAM SPEC

main51900-YD010iKF80..SHRV..GL200210-200612

W(SPARE TIRE CARRIER = BACK DOOR)

9161160814

main91611-60814

2 parts on this diagram · 3 diagrams in section
