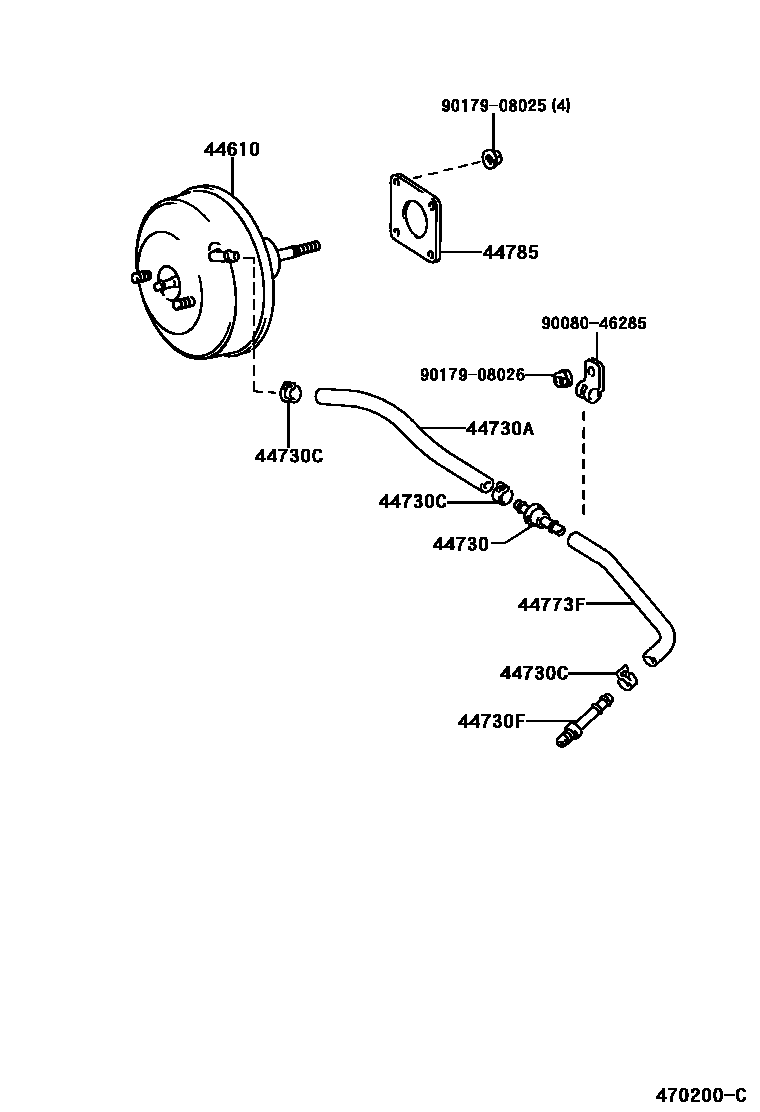

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44610BOOSTER ASSY, BRAKE

main44610-0B011iKF82,RZF82..LHD;KF60,80..(SCB,SHRV)..LHD200210

main44610-0B021iLF80..LHD199810-200211

main44610-0B030iRZF85..LHD200210-200612

main44610-0B040iRZF84200003-200210

main44610-38040iKF60,70,80..GEN199612-199809

main44610-38050iLF60,70,80..GEN199612-199809

main44610-38071iKF80..MA199804-199809

main44610-38090iLF60,80,81,82..(GEN,SA)..RHD200208-200503

main44610-38100iRZF80,YF60,80..RHD200004-200306

main44610-38110iRZF85..RHD200306-200503

main44610-38120iYF60,80..LHD200004-200306

main44610-38140iLF85..RHD200306-200503

main44610-38150iLF61,81..LHD200306-200503

main44610-38160iLF85..LHD200306-200503

main44610-38180iRZF61,81..LHD200306-200503

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iLF80,81..LHD;YF60,80..RHD;KF60,7#,8#,LF61,RZF71,80,81,85..GEN,MA,SA199612-200306

main44730-14050iYF60,80..LHD200004-200306

main44730-20080iLF60,70,80..GEN199612-199809

main44730-30040iLF80..MA199804-199809

main44730-60050iLF85200306-200503

44730AHOSE, VACUUM, NO.1

main44772-38050iKF60,7#,8#..RHD200208-200612

main44772-38060iRZF61,80,81,85..RHD200208-200503

main95446-09260iLF85..RHD200004-200306

main95446-09320iLF80,85..LHD199810-200306

main95446-09360iKF60,70,80..GEN199612-199809

main95446-09380iLF60,80,82..GEN200208-200406

main95446-09480iLF61,81200004-200306

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×3iKF60,7#,8#..RHD199612-200212

main96133-41500×2iKF60,7#,8#..RHD; RZF84,85..LHD;KF80..SHRW..TAIW200208-200612

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51031iKF60,70,80..GEN200208-200612

main90404-51319iRZF85..RHD;KF80..(SHRV,SRF)..(MA,TAIW);KF60,72,82,RZF61,80,81,82..(LUB,T2)..(DLX,GL,STD)200208

44773HOSE, VACUUM, NO.2

main95446-09180iLF61,80,81..LHD199810-200306

44773FHOSE, UNION TO CHECK VALVE

main44773-38080iKF60,70,80..GEN199612-200208

main44773-38091iKF60,80..LHD199810-200302

main44773-38100iKF80..MA;KF72,82..RHD199804-200212

main44773-38110iRZF85..LHD199911-200210

main44773-38130iYF60,80..RHD200004-200306

main44773-38140iRZF71,80,81..RHD200004-200306

main44773-38150iRZF85..RHD200004-200306

main44773-38160iYF60,80..LHD200004-200306

main44773-38170iLF85200306-200503

main44773-38180iRZF84200210-200612

main44773-38190iRZF61,81,82..LHD200211-200503

main95446-09320iLF61,81..LHD200004-200306

main95446-09440iLF82..LHD200211-200501

44785GASKET, BRAKE BOOSTER

main44785-32010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200306

9008046285

main90080-46285

9017908025

main90179-08025

9017908026

main90179-08026

11 parts on this diagram · 8 diagrams in section
