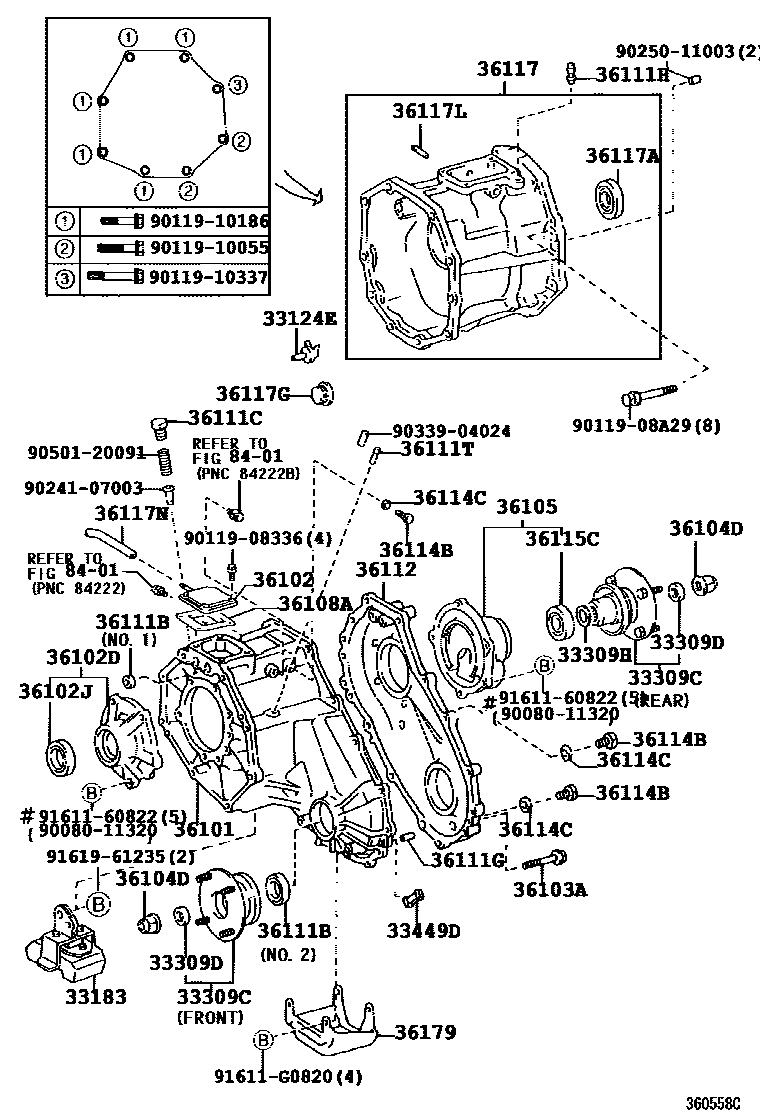

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-36010iLF85,RZF85..5F199911-200306

33183DAMPER, TRANSFER DYNAMIC

main33183-38010iLF85,RZF85199911-200306

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35091iLF85,RZF85200210-200612

REAR

main33309-35100iLF85,RZF85199911-200306

FRONT

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iLF85,RZF85199911-200306

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010×2iLF85,RZF85199911-200306

N=30,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iLF85,RZF85199911-200306

36101CASE SUB-ASSY, TRANSFER

main36111-35070iLF85,RZF85199911-200306

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iLF85,RZF85199911-200306

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35031iLF85,RZF85199911-200106

main36102-35032iLF85,RZF85200106-200306

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40021iLF85,RZF85199911-200306

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iLF85,RZF85199911-200306

*8-1.25PX55-30

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iLF85,RZF85199911-200306

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iLF85,RZF85199911-200306

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35031iLF85,RZF85199911-200208

main36128-35060iLF85,RZF85200210-200612

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008×2iLF85,RZF85200210-200612

NO.1

main90311-41008iLF85,RZF85199911-200207

NO.2

main90311-41010iLF85,RZF85200209-200306

NO.2

main90311-41011iLF85,RZF85200207-200209

NO.2

main90311-41012iRZF85200609-200612

NO.2

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iLF85,RZF85200210-200612

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iLF85,RZF85199911-200306

L=14,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03085iLF85,RZF85199911-200306

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iLF85,RZF85199911-200306

36112CASE, TRANSFER, REAR

main36112-38010iLF85,RZF85199911-200306

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iRZF85..4FC199911-200210

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×3iLF85,RZF85..5F199911-200306

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iLF85,RZF85199911-200306

36117ADAPTER, TRANSFER

main36107-38010iLF85,RZF85..5F199911-200306

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-40023iLF85,RZF85..5F200210-200612

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-20010iLF85,RZF85..5F199911-200306

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iLF85,RZF85199911-200306

36117NHOSE(FOR TRANSFER ADAPTER)

main90447-08126iLF85,RZF85..5F199911-200306

main90904-45005iRZF85..4FC200210-200612

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35010iLF85,RZF85200210-200612

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011320

main90080-11320

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910055

main90119-10055

9011910186

main90119-10186

9011910337

main90119-10337

9024107003

main90241-07003

9025011003

main90250-11003

9033904024

main90339-04024

9050120091

main90501-20091

9161160822

main91611-60822

91611G0820

main91611-G0820

9161961235

main91619-61235

43 parts on this diagram · 2 diagrams in section
