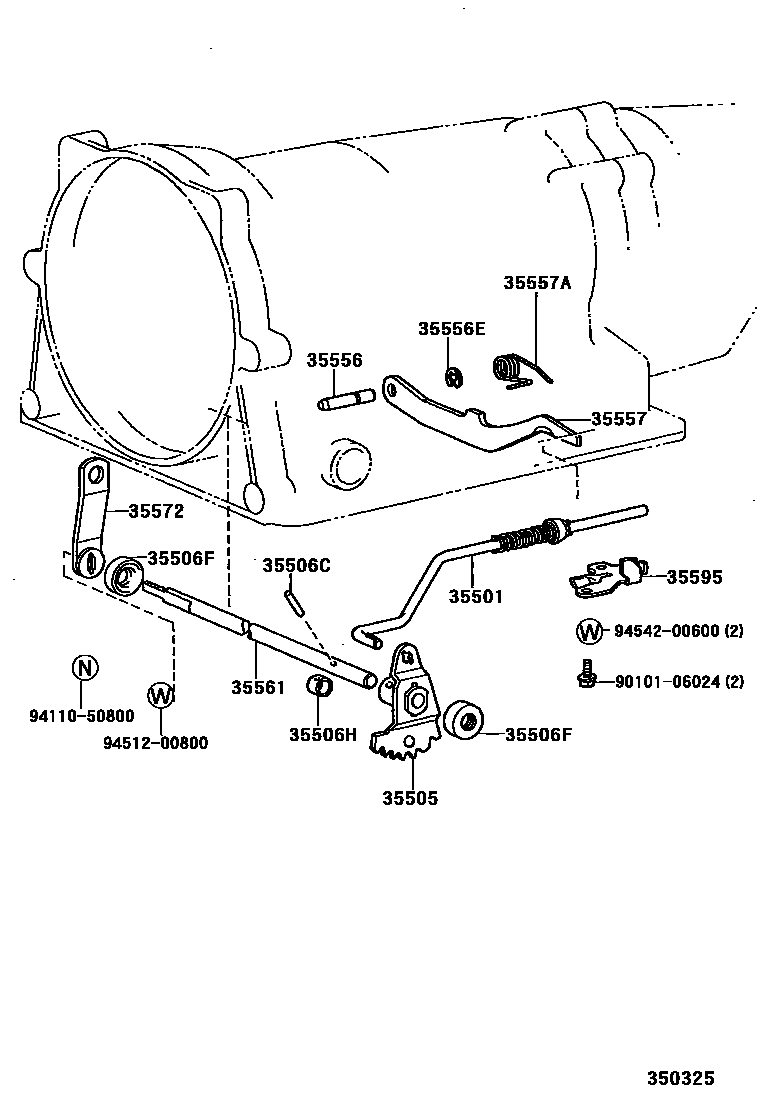

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A45DL,A45DE 0002 1A340E,A340F 0003 1A45DL 0004 1A45DE 0006 1A340E,A340F 0007 1A45DE

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200612

main35501-60010iRZF84,85..4FC199911-200612

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22040iKF80..SHRW..TAIW199612-200612

main35505-50010iRZF84,85..4FC199911-200612

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC199612-200707

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200612

main90311-12002iRZF84,85..4FC199911-200612

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iKF8#..4FC..(DLX,GL)..(MA,PHL,TAIW)199612-200302

main90560-20006iRZF84,85..4FC199911-200302

main90560-20025iKF80..SHRW200302-200612

35556SHAFT, PARKING LOCK PAWL

main35556-26010iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)199612-200612

main35556-30020iRZF84,85..4FC199911-200612

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC199612-200612

35557PAWL, PARKING LOCK

main35557-26031iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)199612-200612

main35557-60020iRZF84,85..4FC199911-200612

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iKF80..SHRW..TAIW199612-200612

main90508-21002iRZF84,85..4FC199911-200612

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iRZF84,85..4FC199911-200612

main35561-40010iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200612

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-38010iKF80..SHRW..TAIW199612-200612

main35572-38020iKF72,82..4FC200001-200406

35595BRACKET, PARKING LOCK PAWL

main35595-26010iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200612

main35595-60010iRZF84,85..4FC199911-200612

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 6 diagrams in section
