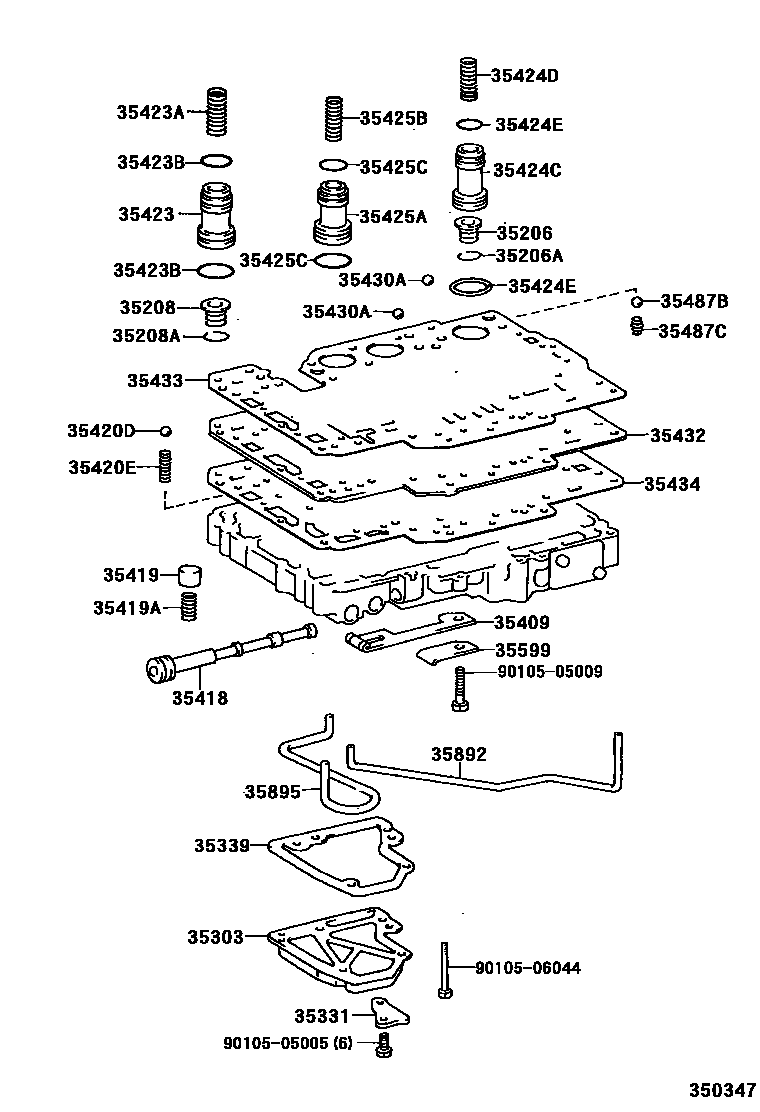

VALVE BODY & OIL STRAINER (ATM)

0001 1A45DL 0002 1A45DL 0003 1A45DL 0004 1A45DE 0008 1A45DE 0012 1A45DE 0016 1A45DE 0019 1A340E,A340F 0020 1A340E,A340F 0021 1A340E,A340F 0022 1A340E,A340F 0023 1A45DE 0024 1A45DE 0025 1A45DE 0026 1A45DE 0027 1A45DE 0028 1A45DE 0029 1A45DE

35206SPRING SUB-ASSY, C-1 ACCUMULATOR

main35206-30010iKF70,80,RZF71,81..4FC199612-200212

35206ARING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

main90521-22004iKF70,80,RZF71,81..4FC199612-200212

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-26010iRZF81..4FC..RHD;KF8#,RZF82..(SHRV,SRF)..4FC..(DLX,GL)..(MA,PHL,TAIW)200208

main35208-28010iKF72,82..4FC200001-200208

main35208-30010iRZF84,85..4FC200210-200612

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC199612-200212

35303STRAINER SUB-ASSY, OIL

main35303-14010iKF70,80..4FC..GEN199612-200001

main35303-30060iRZF81..4FC..RHD;KF8#,RZF82..(SHRV,SRF)..4FC..(DLX,GL)..(MA,PHL,TAIW)200208

35331COVER, OIL STRAINER

main35331-14010iKF70,80..4FC..GEN199612-200001

35339GASKET, OIL STRAINER

main35339-28020iKF70,80..4FC..GEN199612-200001

main35339-28030iRZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199804-200212

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22020iRZF84,85..4FC199911-200210

main35409-22030iKF72,82..4FC200002-200208

main35409-22040iKF72,82..4FC200001-200002

main35409-30010iKF70,80,RZF71,81..4FC199612-200208

35418VALVE, MANUAL

main35418-24010iRZF84,85..4FC200208-200210

main35418-30050iKF70,80..4FC..GEN199612-200001

main35418-30060iRZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199804-200208

35419VALVE, CHECK, NO.1

main35419-22010iKF70,80,RZF71,81..4FC199612-200208

main35419-50010iKF72,82,RZF84,85..4FC199911-200208

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-09093iRZF84,85..4FC199911-200210

main90501-09145iKF72,82..4FC200001-200208

main90501-13003iKF70,80..4FC..GEN199612-200001

main90501-16083iRZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199804-200208

35420BODY ASSY, LOWER VALVE

main35420-28081iKF70,80..4FC..GEN199612-200001

main35420-28190iKF80..4FC..(MA,PHL,TAIW)199804-200210

main35420-28200iRZF71,81..4FC200010-200208

35420DBALL (FOR LOWER VALVE BODY)

main35495-22020iKF70,80..4FC..GEN199612-200001

OD=5.535,RUBBER

main35496-22020iKF70,80..4FC..GEN199612-200001

main35496-22030×2iKF7#,8#..4FC..GEN199612-200208

OD=6.35,RUBBER

main90360-08003iRZF84,85..4FC199911-200210

OD=8.00,STEEL

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iKF70,80..4FC199612-200210

main90501-12142iRZF84,85..4FC199911-200210

35423PISTON, B-2 ACCUMULATOR

main35421-26010iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

main35423-30030iRZF84,85..4FC200210-200612

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-20063iRZF71,81..4FC200010-200211

OUTER

main90501-24015iRZF84,85..4FC200210-200612

main90501-25010iKF82..4FC..RHD200208-200406

main90501-25033iRZF81,82..4FC..GL200208-200501

INNER

main90501-25037iKF80..SHRW..TAIW200210-200612

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iKF72,82..4FC200001-200208

main90301-23194iKF70,80..4FC..GEN199612-199808

UPPER

main90301-29011iKF70,80..4FC..GEN199808-200001

LOWER

main90301-29187iKF70,80..4FC..GEN199612-199808

LOWER

main90301-31010iRZF84,85..4FC199911-200210

LOWER

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iKF72,82..4FC200001-200208

main35424-26010iKF70,80..4FC..GEN199612-200001

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-19017iRZF81..4FC..RHD;KF8#,RZF82..(SHRV,SRF)..4FC..(DLX,GL)..(MA,PHL,TAIW)200208

main90501-20162iKF72,82..4FC200001-200208

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21012iKF82..4FC..RHD200208-200406

UPPER

main90301-22185iKF70,80..4FC..GEN199612-199808

UPPER

main90301-26012iKF7#,8#..4FC..GEN199808-200208

LOWER

main90301-26190iKF70,80..4FC..GEN199612-199808

LOWER

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iKF80,RZF81..4FC..(MA,PHL,TAIW)200208-200210

35425APISTON, C-2 ACCUMULATOR

main35421-30020iRZF81,82..4FC..GL200208-200501

main35425-30020iRZF84,85..4FC199911-200210

main35441-30010iKF7#,80..4FC;KF82..4FC..RHD199612-200212

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-23093iRZF84,85..4FC199911-200210

OUTER

main90501-25027iRZF84,85..4FC199911-200210

INNER

main90501-26092iRZF71,81..4FC200010-200211

main90501-27010iKF80..SHRW..TAIW200208-200612

main90501-27016iKF70,80..4FC..GEN199612-200001

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iKF7#,8#..4FC..GEN199808-200208

UPPER

main90301-18186iKF70,80..4FC..GEN199612-199808

UPPER

main90301-25010iRZF84,85..4FC200210-200612

UPPER

main90301-26011iKF80..4FC..(MA,PHL,TAIW)199804-200212

main90301-26012iKF7#,8#..4FC..GEN199808-200208

LOWER

main90301-26190iKF70,80..4FC..GEN199612-199808

LOWER

main90301-31010iRZF84,85..4FC200210-200612

LOWER

35430BODY ASSY, REAR UPPER VALVE

main35430-22180iRZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199804-200208

main35430-28041iKF70,80..4FC..GEN199612-200001

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22020×2iKF70,80..4FC..GEN199612-200001

OD=5.535,RUBBER

main90360-06023×7iKF80,RZF81..4FC..(MA,PHL)200210-200212

0D=5.56

35432PLATE, VALVE BODY, NO.1

main35432-22103iRZF71,81..4FC200010-200208

main35432-28020iKF70,80..4FC..GEN199612-200001

main35432-38010iRZF85..4FC199911-200210

main35432-38020iRZF84200003-200210

main35432-38030iKF80..4FC..(MA,PHL,TAIW)199804-200210

35433GASKET, VALVE BODY, NO.1

main35433-14012iKF70,80..4FC..GEN199612-200001

main35433-22041iKF80,RZF81..4FC..(MA,PHL)200210-200212

main35433-60040iRZF84,85..4FC199911-200210

35434GASKET, VALVE BODY, NO.2

main35434-14012iKF70,80..4FC..GEN199612-200001

main35434-22041iKF80,RZF81..4FC..(MA,PHL,TAIW)200208-200210

main35434-60040iRZF84,85..4FC199911-200210

35487BBALL, CHECK, NO.4

main35487-30010iKF80,RZF81..4FC..(MA,PHL)200210-200212

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iKF7#,8#,RZF71,81..4FC199612-200208

35599COVER, MANUAL DETENT SPRING

main35599-22020iRZF84,85..4FC199911-200210

main35599-22030iKF72,82..4FC200002-200208

main35599-22040iKF72,82..4FC200001-200002

main35599-30010iKF70,80,RZF71,81..4FC199612-200208

35892TUBE, OVERDRIVE BRAKE

main35892-22010iKF82..4FC..RHD200208-200406

main35892-26010iRZF81..4FC..RHD;KF8#,RZF82..(SHRV,SRF)..4FC..(DLX,GL)..(MA,PHL,TAIW)200208

main35892-28020iKF70,80..4FC..GEN199612-200001

35895TUBE, FRONT CLUTCH APPLY

main35895-14011iKF70,80..4FC..GEN199612-200001

main35895-30030iRZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199804-200212

9010505005

main90105-05005

9010505009

main90105-05009

9010506044

main90105-06044

37 parts on this diagram · 18 diagrams in section
