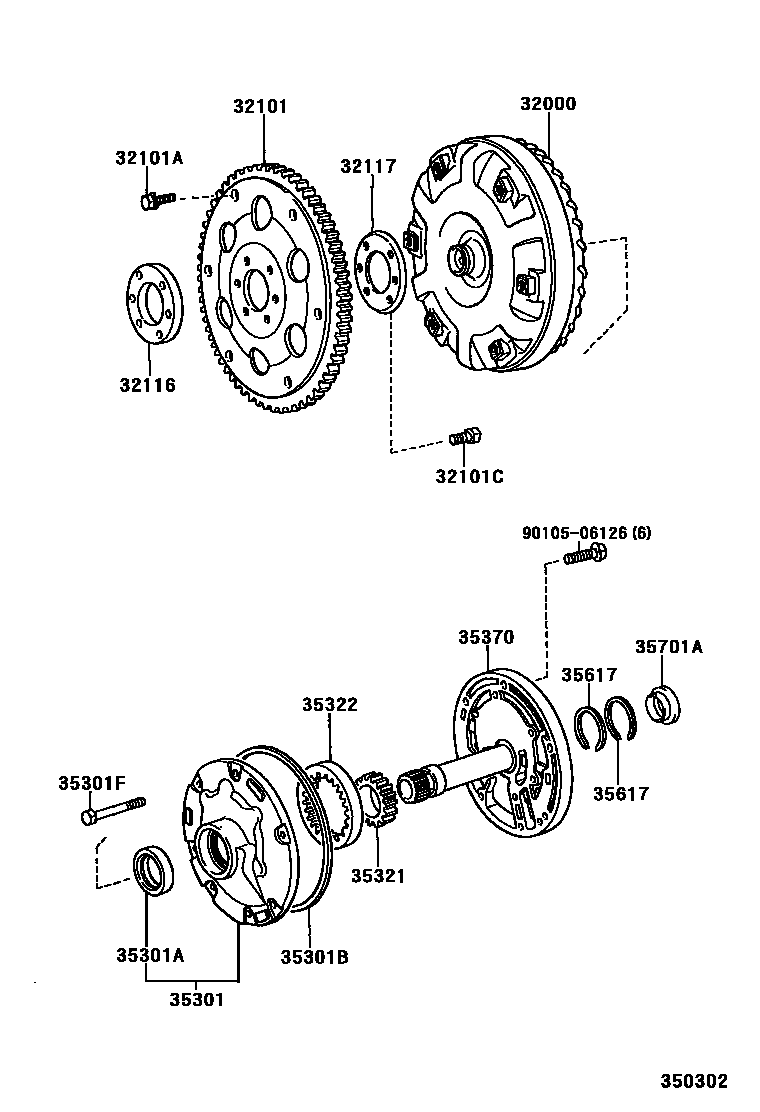

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A45DL,A45DE 0002 1A340E,A340F

32000CONVERTER ASSY, TORQUE

main32000-30340iRZF84,85..4FC200210-200612

main32000-38010iKF8#..4FC..(DLX,GL)..(MA,PHL,TAIW)200210-200707

main32000-38020iKF82..4FC..RHD200208-200406

main32000-38030iRZF82..4FC200208-200501

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iRZF71,81,84,85..4FC199911-200211

main32101-27010iKF8#..(SHRV,SRF)..4FC..(DLX,GL)200208

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-08519iKF8#..4FC..(DLX,GL)200208-200502

*8-1.25PX10.5-5.6,WHITE

main90119-08520×5iKF8#..(SHRV,SRF)..4FC..(DLX,GL)200208

*8-1.25PX10.5-6.5,YELLOW

main90119-08C66iKF80..SHRW200503-200612

*8-1.25PX10.5-6.9,WHITE

main90119-09009×5iRZF81,82,84,85..4FC..GL200208-200612

*9-1.25PX12.8-8.8,YELLOW

main90119-09010iRZF71,81,84,85..4FC199911-200211

*9-1.25PX12.8-9,GREEN

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276×10iRZF71,81,84,85..4FC199911-200211

*10-1.25PX30-17.5

main90105-10306×6iKF7#,80..4FC;KF82..4FC..RHD199612-200212

32116SPACER, DRIVE PLATE, FRONT

main32115-27010iKF80..SHRW..TAIW200208-200612

main32116-26010iRZF81,82,84,85..4FC..GL200208-200612

32117SPACER, DRIVE PLATE, REAR

main32117-12020iKF7#,80..4FC;KF82..4FC..RHD199612-200212

main32117-26010iRZF71,81,84,85..4FC199911-200211

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iKF80..SHRW..TAIW200208-200612

main35301-22021iKF82..4FC..RHD200208-200406

main35301-35010iRZF84,85..4FC199911-200210

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iKF70,80..4FC199612-200005

main90311-38029iRZF84,85..4FC199911-200210

main90311-38064iKF72,82..4FC200001-200005

main90311-38087iRZF84,85..4FC200210-200612

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iKF80..SHRW..TAIW200208-200612

main90301-99033iRZF84,85..4FC199911-200210

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×7iRZF84,85..4FC199911-200210

*8-1.25PX35-35

main90105-08137×7iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iRZF84,85..4FC199911-200210

T=10.690-10.699

main35321-12030iRZF84,85..4FC200210-200612

T=10.700-10.709

main35321-12040iRZF84,85..4FC200210-200612

T=10.710-10.720

main35321-12050iRZF84,85..4FC199911-200210

T=10.721-10.730

main35321-12060iRZF84,85..4FC199911-200210

T=10.731-10.740

main35321-22020iKF80..SHRW..TAIW200208-200612

T=17.244-17.235

main35321-22030iKF80..SHRW..TAIW200208-200612

T=17.254-17.245

main35321-22040iKF80..SHRW..TAIW200208-200612

T=17.265-17.255

main35321-22050iKF80..SHRW..TAIW200208-200612

T=17.275-17.266

main35321-22060iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

T=17.285-17.276

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iRZF84,85..4FC200210-200612

T=10.690-10.699

main35322-12020iRZF84,85..4FC199911-200210

T=10.700-10.709

main35322-12030iRZF84,85..4FC200210-200612

T=10.710-10.720

main35322-12040iRZF84,85..4FC199911-200210

T=10.721-10.730

main35322-12050iRZF84,85..4FC200210-200612

T=10.731-10.740

main35322-22020iKF80..SHRW..TAIW200208-200612

T=17.244-17.235

main35322-22030iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

T=17.254-17.245

main35322-22040iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

T=17.265-17.255

main35322-22050iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

T=17.275-17.266

main35322-22060iKF80..SHRW..TAIW200208-200612

T=17.285-17.276

35370SHAFT ASSY, STATOR

main35370-14012iKF80..SHRW..TAIW200208-200612

main35370-22060iKF82..4FC..RHD200208-200406

main35370-30031iRZF84,85..4FC199911-200210

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020×2iRZF84,85..4FC200210-200612

main35617-32010×2iKF80..SHRW..TAIW200208-200612

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

9010506126

main90105-06126

16 parts on this diagram · 2 diagrams in section
