Toyota 562310 — MUDGUARD & SPOILER

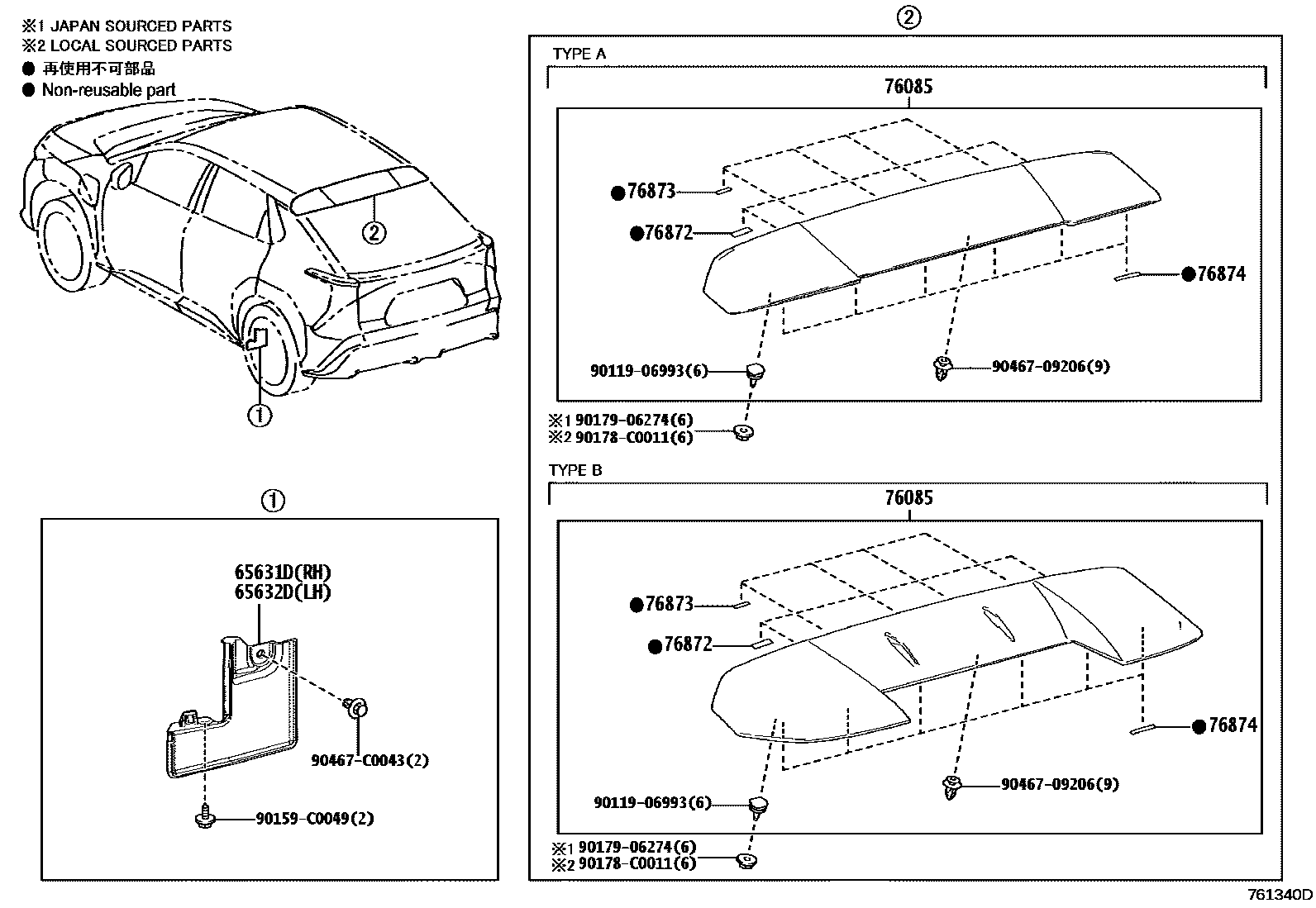

Parts diagram
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
75607-0R020
76085-0R110
76872PROTECTOR, REAR SPOILER, NO.1
76872-0R130
76873PROTECTOR, REAR SPOILER, NO.2
76873-0R130
76874PROTECTOR, REAR SPOILER, NO.3
76874-0R100
9011906993
90119-06993
90159C0049
90159-C0049
90178C0011
90178-C0011
9017906274
90179-06274
9046709206
90467-09206
90467C0043
90467-C0043

12 parts on this diagram · 1 diagram in section

MUDGUARD & SPOILER for Toyota 562310

This section contains 12 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota 562310. Key components include: PLATE, REAR WHEEL HOUSE, FRONT RH, PLATE, REAR WHEEL HOUSE, FRONT LH, SPOILER SUB-ASSY, REAR, PROTECTOR, REAR SPOILER, NO.1, PROTECTOR, REAR SPOILER, NO.2.
