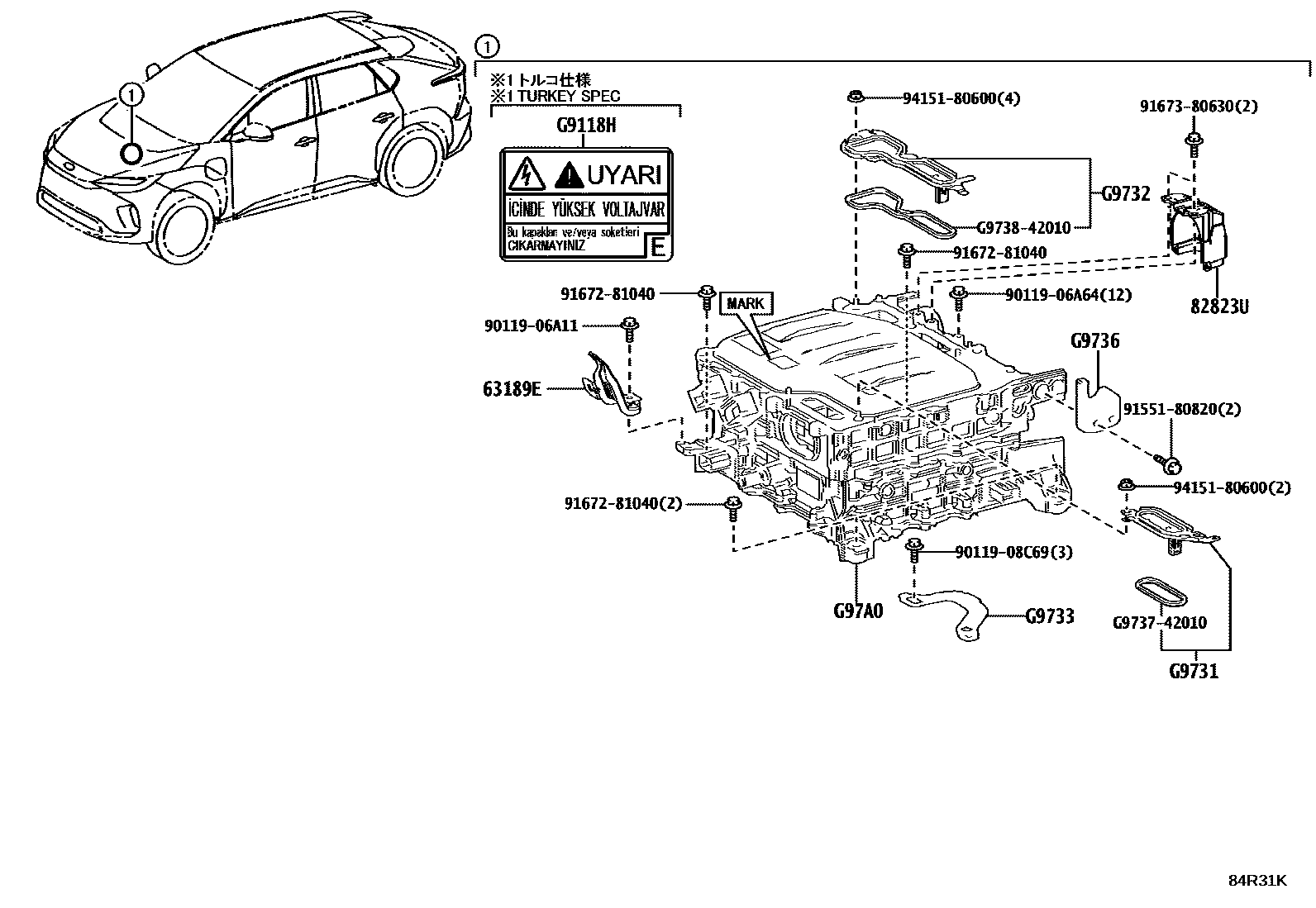

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 17KW 0003 111KW 0004 1 0005 1 0006 1CHARGE CABLE

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-42020iXEAM10,YEAM15202203-202411

82823UCAP, TERMINAL

main82823-42080iXEAM10202412

G9118HLABEL, EV UNIT CONTROLLER CAUTION, NO.1

mainG911852010iXEAM10,YEAM15..LHD..P..EUR202412

TURKEY SPEC

G9731COVER, TERMINAL, NO.1

mainG973142010iXEAM10,YEAM15202412

G9732COVER, TERMINAL, NO.2

mainG973242011iXEAM10,YEAM15202203-202310

mainG973242012iXEAM10,YEAM15202412

G9733BRACKET, EARTH

mainG973342010iXEAM10,YEAM15202412

G9736PROTECTOR, CONNECTOR, NO.3

mainG973642010iXEAM10,YEAM15202203-202311

G97A0UNIT ASSY, ELECTRIC CONVERTER W/CAP

mainG97A042020iXEAM10,YEAM15202203-202209

mainG97A042100iXEAM10..TAIW202305-202308

mainG97A042101iXEAM10..TAIW202308-202311

mainG97A042120iXEAM10,YEAM15..EUR202305-202311

mainG97A042150iXEAM10..TAIW202311-202405

mainG97A042151iXEAM10..TAIW202406-202411

mainG97A042170iXEAM10,YEAM15..ARL,EUR202311-202405

mainG97A042171iXEAM10,YEAM15..ARL,EUR202406-202411

mainG97A046010iXEAM10,YEAM15..EUR202301-202305

mainG97A046040iXEAM10,YEAM15202209-202210

mainG97A046080iXEAM10..TAIW202211-202305

9011906A11

main90119-06A11

9011906A64

main90119-06A64

9011908C69

main90119-08C69

9155180820

main91551-80820

9167281040

main91672-81040

9167380630

main91673-80630

9415180600

main94151-80600

G973742010GASKET, TERMINAL COVER, NO.1

mainG9737-42010

G973842010GASKET, TERMINAL COVER, NO.2

mainG9738-42010

17 parts on this diagram · 5 diagrams in section
