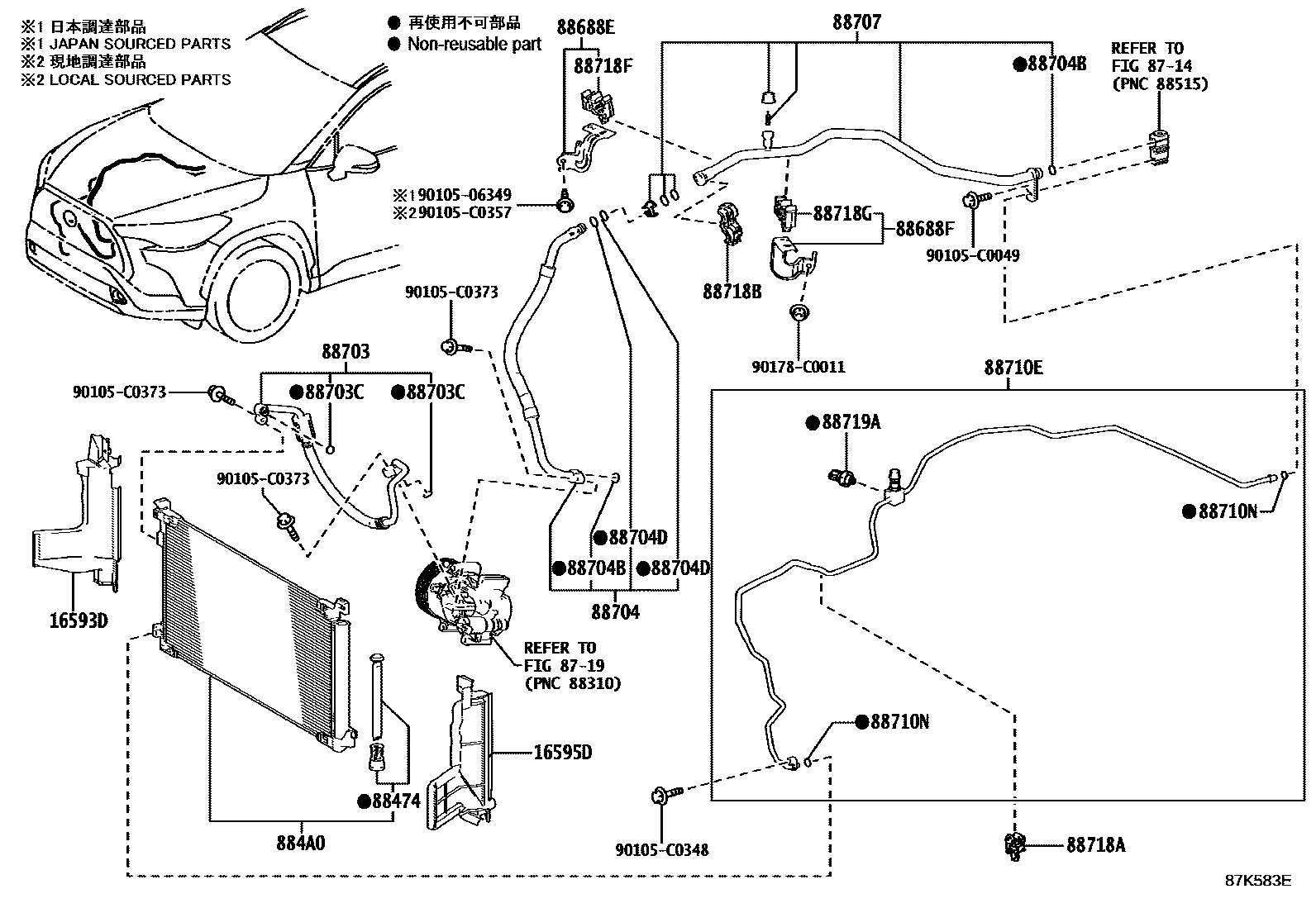

HEATING & AIR CONDITIONING - COOLER PIPING
16593DGUIDE, RADIATOR AIR, NO.1 RH
16595DGUIDE, RADIATOR AIR, NO.1 LH
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
884A0CONDENSER ASSY, COOLER
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
ID=6.7,OD=10.3
88704DRING, O, NO.2 (FOR SUCTION HOSE)
ID=14,OD=17.56
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88719ASENSOR, AIR CONDITIONER PRESSURE
9010506349
main90105-06349
90105C0049
main90105-C0049
90105C0348
main90105-C0348
90105C0357
main90105-C0357
90105C0373
main90105-C0373
90178C0011
main90178-C0011
27 parts on this diagram · 2 diagrams in section
