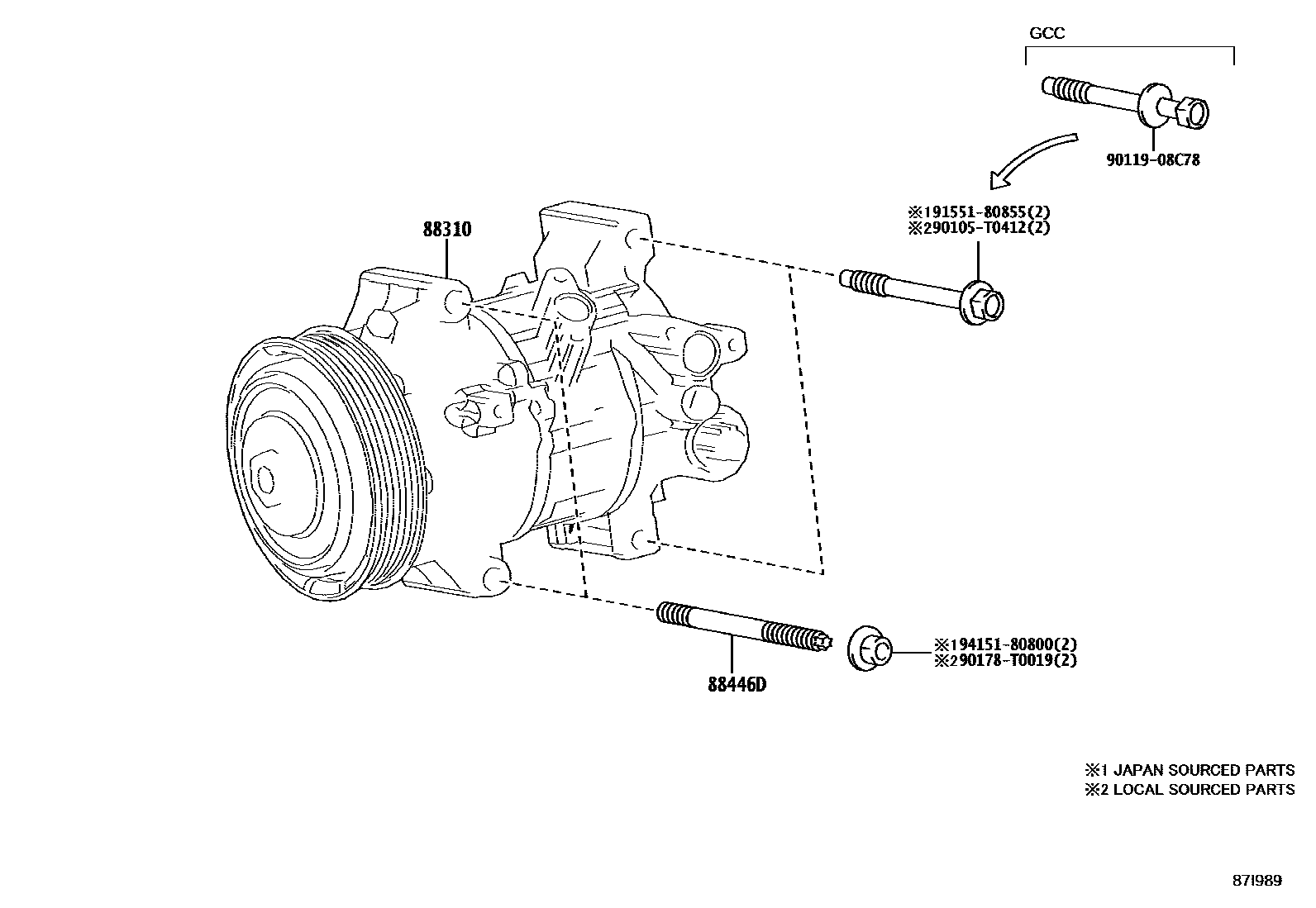

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-02A02iZSG10..GCC202010-202410

main88310-0A040iZSG10..TH202401-202512

main88310-0A060iZSG10..SAP202110-202411

main88310-0A070iZSG10..MA202411

main88310-16690iMXGA10202201-202403

88446DBOLT, COOLER

main88446-02100×2iZSG10..GCC202410

main90126-08072×2iZSG10..THP..(GEN,PH,TH,VN)202007-202402

90105T0412

main90105-T0412

9011908C78

main90119-08C78

90178T0019

main90178-T0019

9155180855

main91551-80855

9415180800

main94151-80800

7 parts on this diagram · 4 diagrams in section
