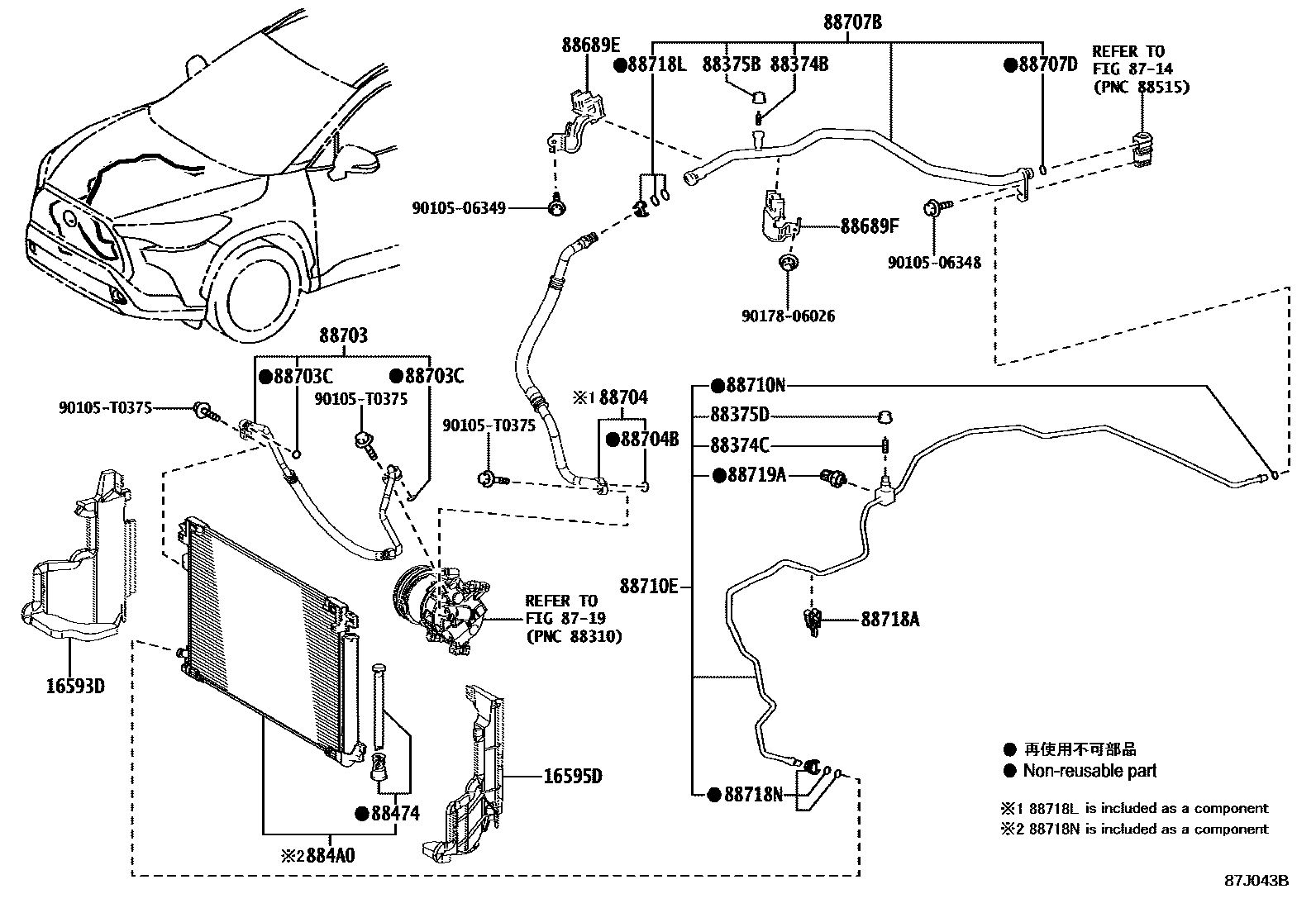

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

16593DGUIDE, RADIATOR AIR, NO.1 RH

main16593-0T270i2ZRFE..ZSG10..(SAP,THP)..E;2ZRFE..ZSG10..(G,N)..(SA,VN);2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..LHD..SAP..(G,N);2ZRFXE..ZVG10..(SAP,THP)..(E,G)202401

main16593-0T280i2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP202410

main16593-0T310i2ZRFE,2ZRFXE..ZSG10,ZVG10..MA202411

main16593-F2130iM20AFKS..MXGA10202404-202412

16595DGUIDE, RADIATOR AIR, NO.1 LH

main16595-0T330i2ZRFE..ZSG10..(SAP,THP)..E;2ZRFE..ZSG10..(G,N)..(SA,VN);2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..LHD..SAP..(G,N)202401

main16595-0T340i2ZRFXE..ZVG10..MA202007-202111

main16595-0T350i2ZRFE..ZSG10..TWP202410

main16595-0T360i2ZRFXE..ZVG10..TWP202010-202410

main16595-0T390i2ZRFE..ZSG10..MA202411

main16595-0T400i2ZRFXE..ZVG10..MA202112-202410

main16595-F2150iM20AFKS..MXGA10202201-202403

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-02010iMXGA10,ZVG10..BZP202501

main88374-30010iZSG10..IDN202007-202212

88374CVALVE, SERVICE, NO.2

main88374-02010iMXGA10,ZVG10..BZP202103-202112

main88374-30010iZSG10..IDN202007-202212

main88374-33070iZSG10,ZVG10..TWP202010-202410

88375BCAP, SERVICE VALVE, NO.1

main88375-02130iMXGA10,ZVG10..BZP202103-202112

main88375-30290iZSG10..TH202401-202512

88375DCAP, SERVICE VALVE, NO.2

main88375-02120iMXGA10,ZVG10..BZP202201-202403

main88375-30280iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202410

88474DRYER, COOLER

main88474-12010iZSG10,ZVG10..TWP202403-202410

main88474-12020iZSG10,ZVG10..TWP202007-202403

884A0CONDENSER ASSY, COOLER

main88460-0A030iZSG10..SAP202110-202411

main88460-0A031iZSG10..SAP202411

main88460-0A040iZVG10..SA202110-202411

main88460-10320iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main884A0-02160iZSG10..TWP202010-202402

main884A0-02170iZVG10..TWP202010-202402

main884A0-02190iMXGA10202103-202112

main884A0-02210iZVG10..BZP202103-202112

main884A0-02530iMXGA10202501

main884A0-02550iZVG10..BZP202501

main884A0-02560iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN)202401

main884A0-02590iZSG10..TWP202410

main884A0-02600iZVG10..TWP202403-202410

main884A0-F4040iZSG10..MAP..E202007-202410

88689EBRACKET, COOLER, NO.1

main88688-02D10iZSG10..TAIW202010-202410

main88688-02D40iZVG10..TWP202410

main88688-02D90iMXGA10202103-202112

main88688-02E10iZVG10..BZP202201-202403

main88688-02F10iZSG10..GCC202010-202410

main88688-0A070iZSG10..SAP202110-202411

main88688-0A090iZVG10..SA202110-202411

main88688-0A110iZSG10..G..MA202112-202411

main88688-0A130iZVG10..MA202411

main88688-F4060iZSG10..THP..(GEN,PH,TH,VN)202007-202402

main88688-F4080iZVG10..THP..(E,G)202401

88689FBRACKET, COOLER, NO.2

main88688-02D30iZSG10..TAIW202010-202410

main88688-02D50iZVG10..TWP202410

main88688-02E00iMXGA10202201-202403

main88688-02E20iZVG10..BZP202103-202112

main88688-0A080iZSG10..SAP202411

main88688-0A100iZVG10..SA202110-202411

main88688-0A120iZSG10..E..MA202112-202410

main88688-0A140iZVG10..MA202112-202410

main88688-F4070iZSG10..VN;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main88688-F4090iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

88703HOSE SUB-ASSY, DISCHARGE

main88703-02D40iZSG10..GCC202010-202410

main88703-02D50iZVG10..TWP202410

main88703-02E00iZVG10..BZP202201-202403

main88703-0A010iZSG10..THP..(GEN,PH,TH,VN)202007-202402

main88703-0A030iZSG10..TAIW202010-202410

main88703-0A040iMXGA10202103-202112

main88703-0A090iZSG10..SAP202411

main88703-0A100iZVG10..SA202411

main88703-0A120iZSG10..MA202411

main88703-0A130iZVG10..MA202411

main88703-F4050iZVG10..MA202007-202111

88703CRING, O(FOR DISCHARGE HOSE)

main90068-14044×2iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

ID=10.2,OD=15.0

main90099-14120×2iZSG10..MAP..G202010-202411

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-02D60iZSG10..GCC202010-202410

main88704-02D70iZVG10..TWP202410

main88704-02E20iZVG10..BZP202103-202112

main88704-0A050iZSG10..VN;ZSG10..LHD..E..GEN202401

main88704-0A060iZSG10..RHD..THP..(GEN,TH)202007-202402

main88704-0A070iZSG10..TAIW202410

main88704-0A080iMXGA10202103-202112

main88704-0A120iZSG10..LHD..SAP202110-202411

main88704-0A130iZSG10..RHD..SAP202110-202411

main88704-0A140iZVG10..SA202411

main88704-0A150iZSG10..G..MA202112-202411

main88704-0A160iZVG10..MA202112-202410

main88704-F4050iZVG10..MA202007-202111

88704BRING, O(FOR SUCTION HOSE)

main90068-14043iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

ID=13.4,OD=18.2

main90099-14121iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202010-202410

ID=13.4,OD=18.2

88707BTUBE SUB-ASSY, SUCTION, B

main88707-02600iZSG10..LHD..THP202007-202402

main88707-02620iZVG10..LHD..THP..E202007-202402

main88707-02630iZSG10..TAIW202410

main88707-02640iZVG10..TWP202010-202410

main88707-02690iMXGA10202103-202112

main88707-02700iZVG10..BZP202103-202112

main88707-0A030iZSG10..LHD..SAP202411

main88707-0A040iZSG10..RHD..SAP202110-202411

main88707-0A050iZVG10..SA202411

main88707-0A060iZSG10..G..MA202112-202411

main88707-0A070iZVG10..MA202411

main88707-F4040iZSG10..RHD..THP..GEN202401

main88707-F4050iZVG10..MA202007-202111

88707DRING, O(FOR SUCTION TUBE)

main90068-14043iZSG10,ZVG10..MAP..E202007-202410

ID=13.4,OD=18.2

main90099-14121iMXGA10,ZVG10..BZP202404-202412

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-02E70iZSG10..VN;ZSG10..LHD..E..GEN202401

main88710-02E90iZVG10..LHD..THP..E202007-202402

main88710-02F10iZSG10..GCC202010-202410

main88710-02F20iZSG10..TAIW202010-202410

main88710-02F30iZVG10..TWP202410

main88710-02F80iMXGA10202501

main88710-02G00iZVG10..BZP202501

main88710-F4110iZVG10..MA202007-202111

main88710-F4150iZSG10..RHD..THP..(GEN,TH)202007-202402

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14042iZSG10,ZVG10..MA202007-202111

ID=6.7,OD=10.3

main90099-14119iMXGA10,ZVG10..BZP202010-202112

ID=6.7,OD=10.3

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-02B00iZSG10,ZVG10..TWP202410

main88718-47110iMXGA10,ZVG10..BZP202404-202412

main88718-F4100iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

88718LCLAMP, PIPING

main88718-52280iMXGA10,ZVG10..BZP202501

88718NCLAMP, PIPING

main88718-1E150iMXGA10,ZVG10..BZP202501

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iZSG10,ZVG10..MA202007-202111

9010506348

main90105-06348

9010506349

main90105-06349

90105T0375

main90105-T0375

9017806026

main90178-06026

28 parts on this diagram · 13 diagrams in section
