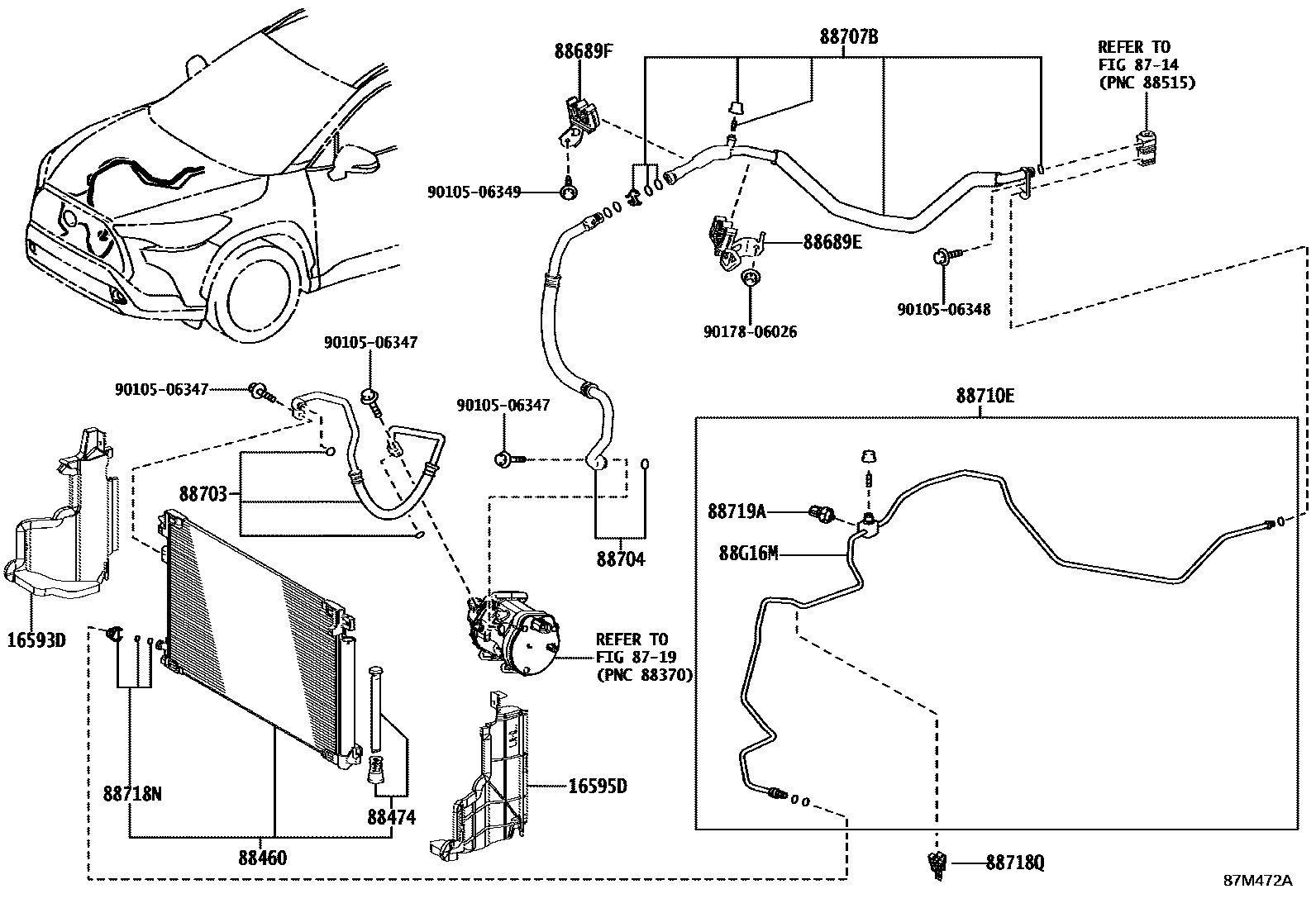

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

16593DGUIDE, RADIATOR AIR, NO.1 RH

main16593-0T320i2ZR#..ZSG10,ZVG10202312

16595DGUIDE, RADIATOR AIR, NO.1 LH

main16595-0T410i2ZRFE..ZSG10202402

main16595-0T420i2ZRFXE..ZVG10202312

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-0A100iZSG10202402

main88460-10320iZVG10202312

88474DRYER, COOLER

main88474-12020iZVG10202312

88689EBRACKET, COOLER, NO.1

main88688-0A150iZVG10202312

main88688-0A170iZSG10202402

88689FBRACKET, COOLER, NO.2

main88688-0A160iZVG10202312

main88688-0A180iZSG10202402

88703HOSE SUB-ASSY, DISCHARGE

main88703-0A170iZVG10202312

main88703-0A180iZSG10202402

88704HOSE SUB-ASSY, SUCTION

main88704-0A200iZVG10202312

main88704-0A210iZSG10202402

88707BTUBE SUB-ASSY, SUCTION, B

main88707-0A100iZSG10202402

main88707-0A110iZVG10202312

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0A210iZVG10202312

main88710-0A220iZSG10202402

88718NCLAMP, PIPING

main88718-1E150iZVG10202312

88718QCLAMP, PIPING

main88718-0A170iZSG10,ZVG10202312

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iZSG10,ZVG10202312

88G16MTUBE, LIQUID, NO.1

main88716-0A600iZVG10202312

main88716-0A610iZSG10202402

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

9017806026

main90178-06026

20 parts on this diagram · 2 diagrams in section
