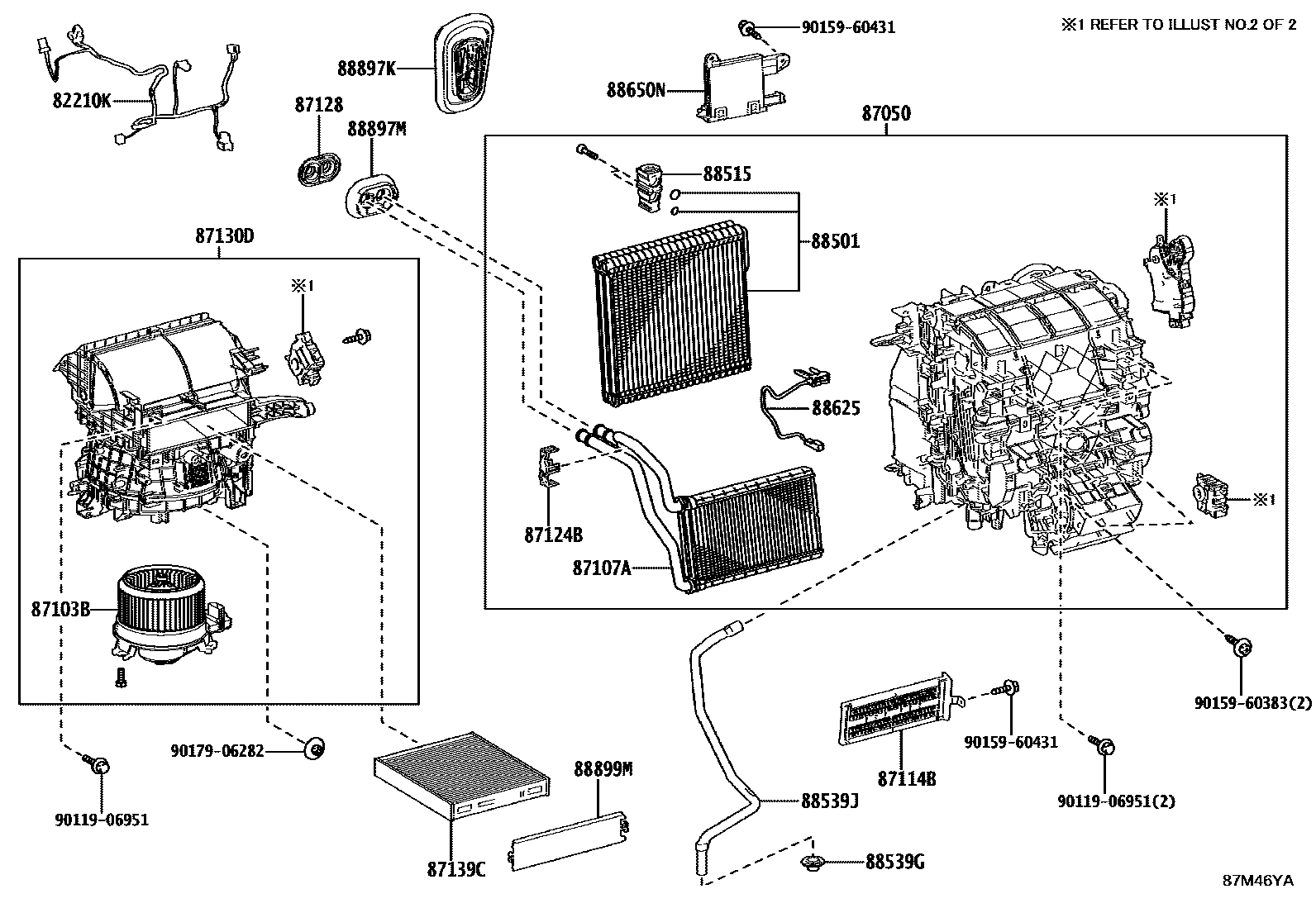

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0A120iZSG10,ZVG10..E,G202312

main82212-0A130iZSG10..N202402

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0A550iZSG10,ZVG10..E,G202312

main87050-0A560iZSG10..N202402

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0A130iZSG10,ZVG10202312

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0A040iZSG10,ZVG10202312

87114BCOVER, HEATER

main87114-F4080iZSG10,ZVG10202312

87124BCLAMP, HEATER

main87124-0A010iZSG10,ZVG10202312

87128GROMMET, HEATER

main87128-28010iZSG10,ZVG10202312

87130DBLOWER ASSY

main87130-0A090iZSG10,ZVG10202312

87139CFILTER, CLEAN AIR

main87139-0K060iZSG10,ZVG10202312

POLLEN FILTER,OE PART

main87139-58010iZSG10,ZVG10202312

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0A150iZSG10,ZVG10202312

88515VALVE, COOLER EXPANSION

main88515-0A070iZSG10,ZVG10202312

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-02020iZSG10,ZVG10202312

88539JHOSE, DRAIN COOLER

main88539-0A090iZSG10,ZVG10202312

88625THERMISTOR, COOLER, NO.1

main88620-0A020iZSG10,ZVG10202312

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0A030iZSG10,ZVG10202312

88897KGROMMET, (FOR COOLER PIPE)

main88899-0A110iZSG10,ZVG10202312

88897MGROMMET (FOR HEATER PIPE)

main87128-0A050iZSG10,ZVG10202312

88899MPLATE, COVER(FOR AIR FILTER)

main88899-0A100iZSG10,ZVG10202312

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

22 parts on this diagram · 3 diagrams in section
