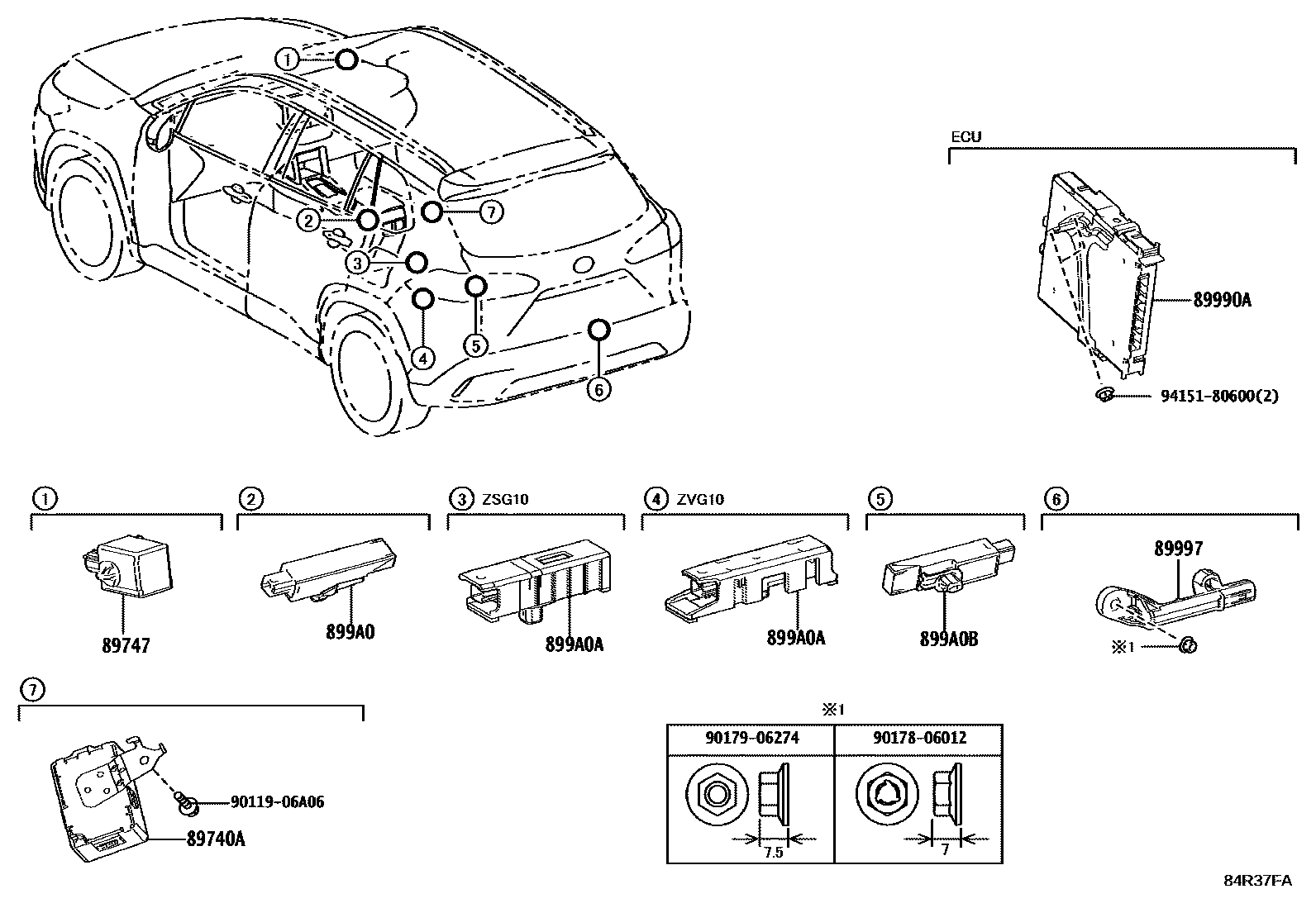

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-0A010iZSG10,ZVG10202312

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZSG10,ZVG10202312

89990ACOMPUTER ASSY, SMART KEY

main899H0-16030iZSG10202402

main899H0-16040iZVG10202312

89997ANTENNA, ELECTRICAL KEY

main89997-30100iZSG10,ZVG10202312

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02260iZSG10,ZVG10202312

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-02270iZSG10202402

main899A0-02290iZVG10202312

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0A010iZSG10,ZVG10202312

9011906A06

main90119-06A06

9017806012

main90178-06012

9017906274

main90179-06274

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
