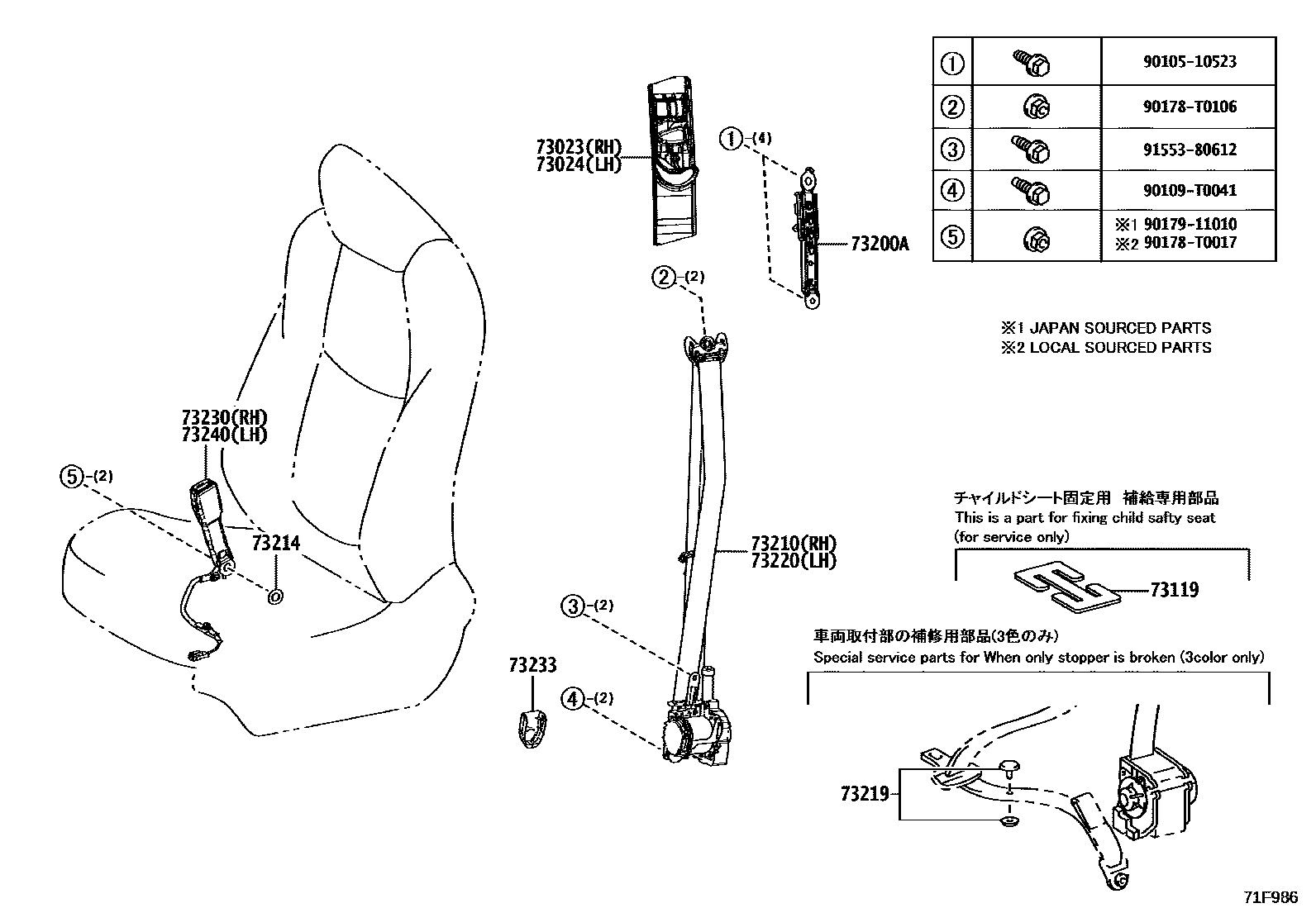

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02120-C0iZSG10,ZVG10202312

BLACK,TRIM3#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02120-C0iZSG10,ZVG10202312

BLACK,TRIM3#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZSG10,ZVG10202312

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140×2iZSG10,ZVG10202312

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02780-C2iZSG10,ZVG10202312

BLACK,TRIM3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iZSG10,ZVG10202312

73219STOPPER, TONGUE PLATE

main73219-33010iZSG10,ZVG10202312

BLACK

main73219-33020iZSG10,ZVG10202312

GRAY

main73219-33030iZSG10,ZVG10202312

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06420-C4iZSG10,ZVG10202312

BLACK,TRIM3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0A060-C0iZSG10,ZVG10..G,N202312

BLACK,TRIM3#

main73230-0A070-C0iZSG10,ZVG10..E202312

BLACK,TRIM3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iZSG10,ZVG10202312

BLACK,TRIM3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0A080-C0iZSG10,ZVG10202312

BLACK,TRIM3#

9010510523

main90105-10523

90109T0041

main90109-T0041

90178T0017

main90178-T0017

90178T0106

main90178-T0106

9017911010

main90179-11010

9155380612

main91553-80612

17 parts on this diagram · 2 diagrams in section
