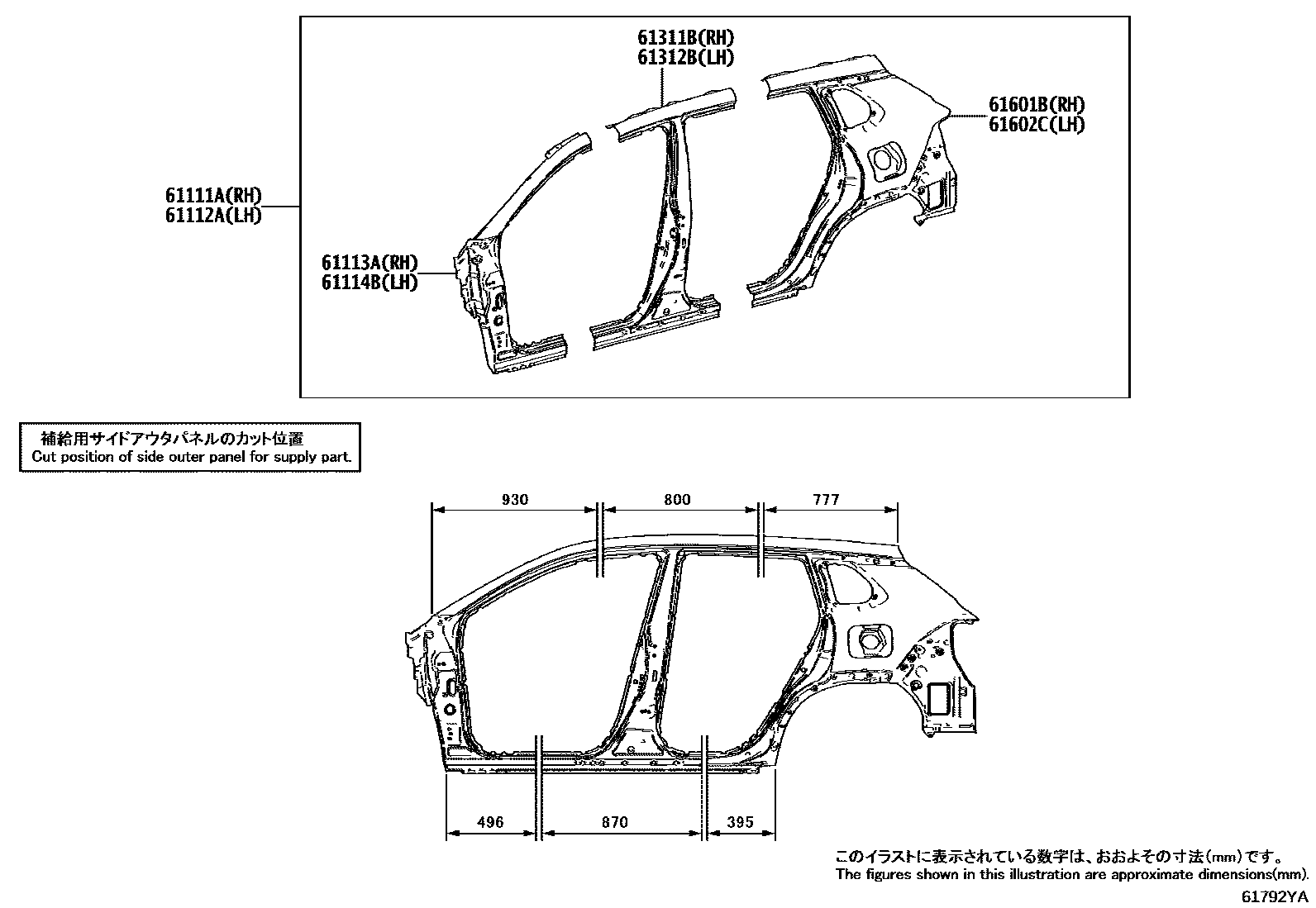

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61111APANEL, FRONT SIDE, OUTER RH

main61111-0A090iZSG10,ZVG10202312

61112APANEL, FRONT SIDE, OUTER LH

main61112-0A090iZSG10,ZVG10202312

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0A100iZSG10,ZVG10202312

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0A110iZSG10,ZVG10202312

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0A100iZSG10,ZVG10202312

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0A100iZSG10,ZVG10202312

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-0A100iZSG10,ZVG10202312

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-0A110iZSG10,ZVG10202312

8 parts on this diagram · 3 diagrams in section
