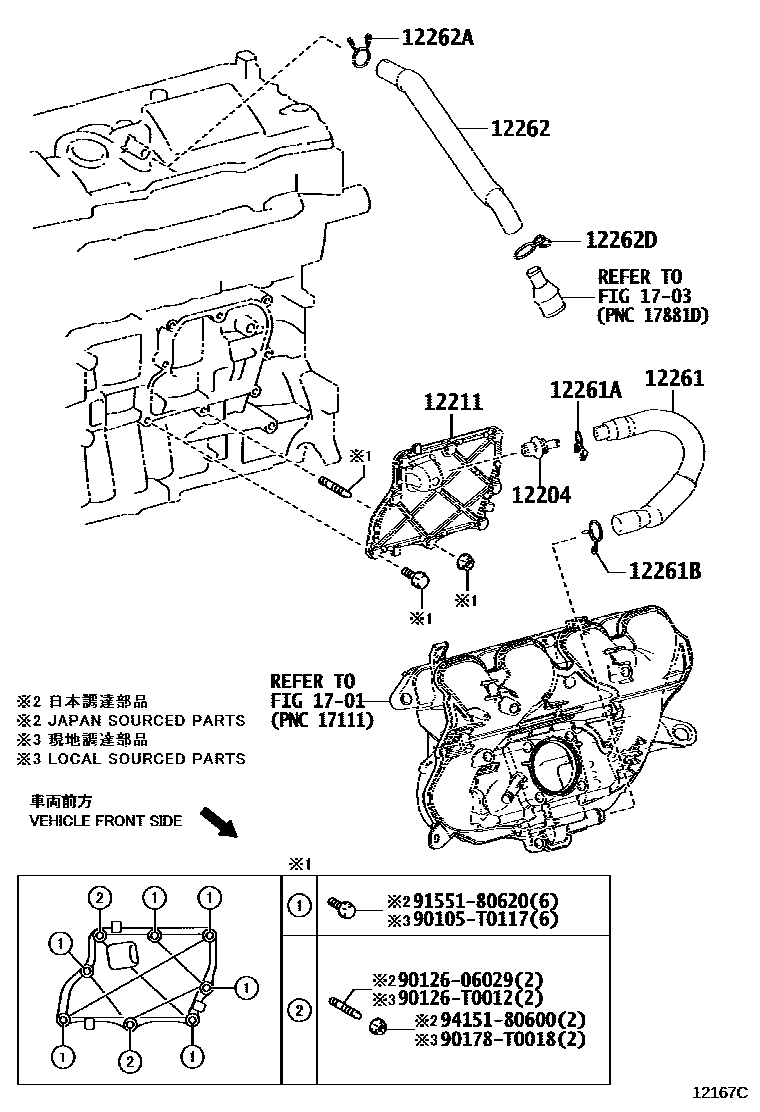

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-37010i2ZRFE..ZSG10202402

main12204-37060i2ZRFXE..ZVG10202312

12211CASE, VENTILATION, NO.1

main12211-37010i2ZR#..ZSG10,ZVG10202312

12261HOSE, VENTILATION

main12261-37070i2ZRFXE..ZVG10202312

main12261-37090i2ZRFE..ZSG10202402

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i2ZR#..ZSG10,ZVG10202312

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i2ZRFXE..ZVG10202312

main90466-T0032i2ZRFE..ZSG10202402

(L)

main90467-23002i2ZRFE..ZSG10202402

(J)

12262HOSE, VENTILATION, NO.2

main12262-37060i2ZRFXE..ZVG10202312-202411

main12262-37071i2ZRFE..ZSG10202402

main12262-37110i2ZRFXE..ZVG10202411

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-T0027i2ZRFE..ZSG10202402

(L)

main90467-21004i2ZRFXE..ZVG10202312

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZR#..ZSG10,ZVG10202312

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

90105T0117

main90105-T0117

9012606029

main90126-06029

90126T0012

main90126-T0012

90178T0018

main90178-T0018

9155180620

main91551-80620

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
