Toyota 544210 — HEATING & AIR CONDITIONING - COOLER PIPING

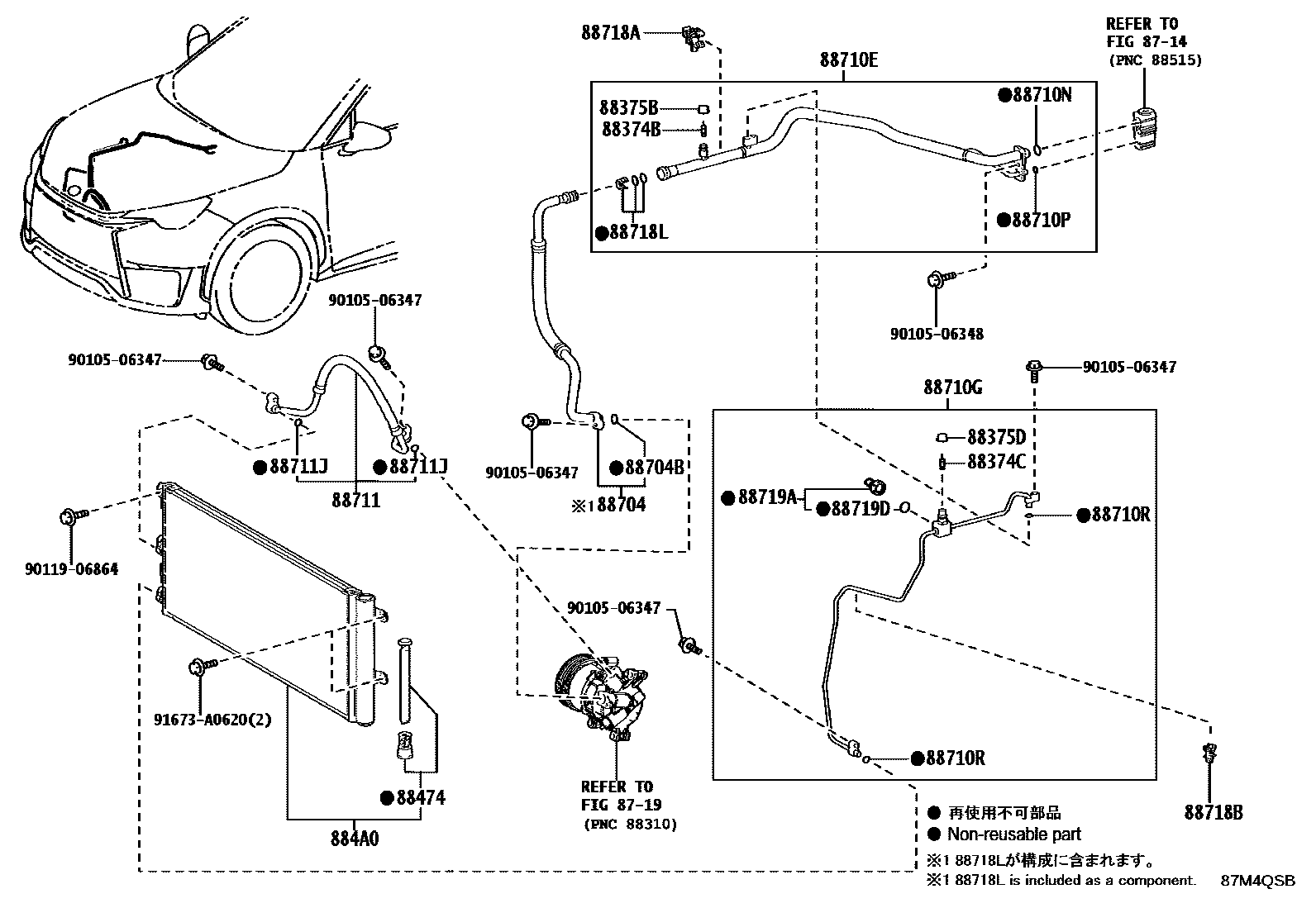

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

88374CVALVE, SERVICE, NO.2

88375BCAP, SERVICE VALVE, NO.1

88375DCAP, SERVICE VALVE, NO.2

88474DRYER, COOLER

884A0CONDENSER ASSY, COOLER

88704HOSE SUB-ASSY, SUCTION

88704BRING, O(FOR SUCTION HOSE)

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88710RRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718LCLAMP, PIPING

88719ASENSOR, AIR CONDITIONER PRESSURE

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

9010506347

9010506348

9011906864

91673A0620

26 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota 544210

This section contains 26 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota 544210. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - COMPRESSOR, VALVE, SERVICE, NO.1, VALVE, SERVICE, NO.2, CAP, SERVICE VALVE, NO.1.
