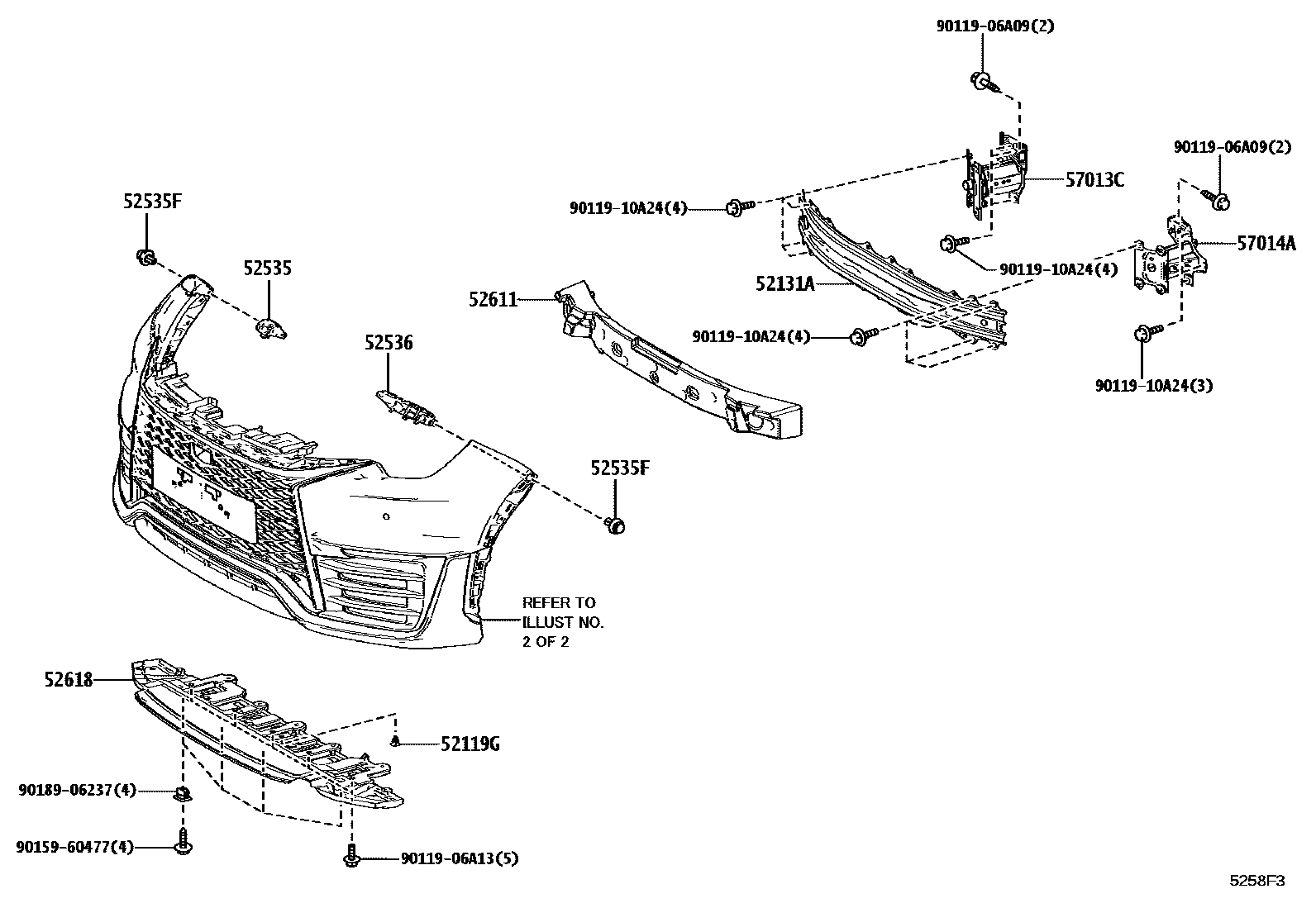

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52119GCLIP, NO.1

main90467-10005-C0iGAYA16202408

BLACK

52131AREINFORCEMENT, FRONT BUMPER

main52131-52290iGAYA16202408

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52250iGAYA16202408

NO PAINT REQ.

52535FCLIP, FRONT BUMPER SIDE RETAINER

main90467-07215×2iGAYA16202408

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52250iGAYA16202408

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52450iGAYA16202408

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52210iGAYA16202408

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52080iGAYA16202408

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52070iGAYA16202408

9011906A09

main90119-06A09

9011906A13

main90119-06A13

9011910A24

main90119-10A24

9015960477

main90159-60477

9018906237

main90189-06237

14 parts on this diagram · 2 diagrams in section
