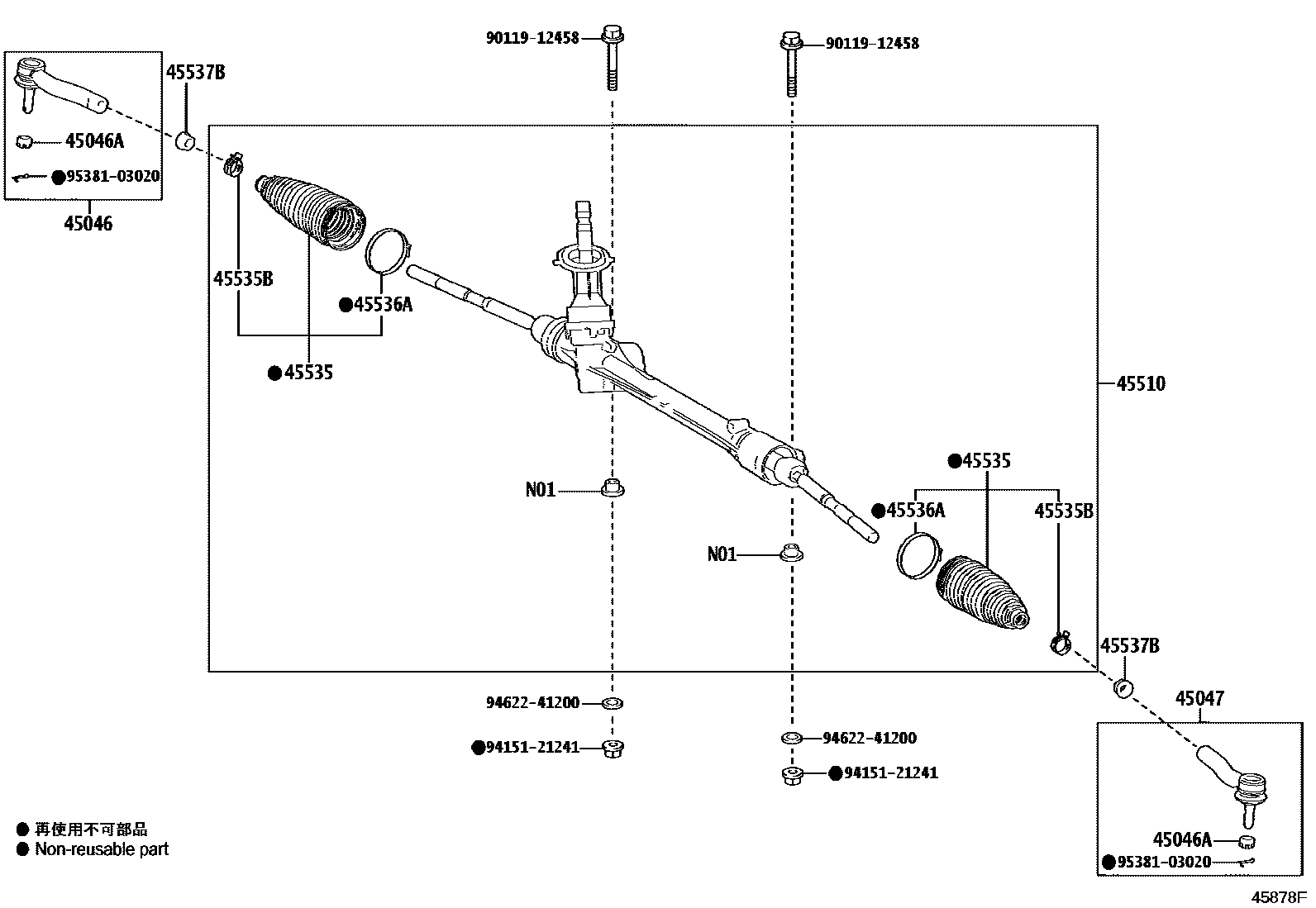

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09892iGAYA16202408

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iGAYA16202408

45047END SUB-ASSY, TIE ROD, LH

main45047-09471iGAYA16202408

45510GEAR ASSY, STEERING

main45510-52500iGAYA16202408

45535BOOT, STEERING RACK, NO.1

main45535-19035iGAYA16202408

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42020iGAYA16202408

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iGAYA16202408

45537BNUT, RACK END LOCK

main90178-16001iGAYA16202408

9011912458

main90119-12458

9415121241

main94151-21241

9462241200

main94622-41200

9538103020

main95381-03020

12 parts on this diagram · 1 diagram in section
