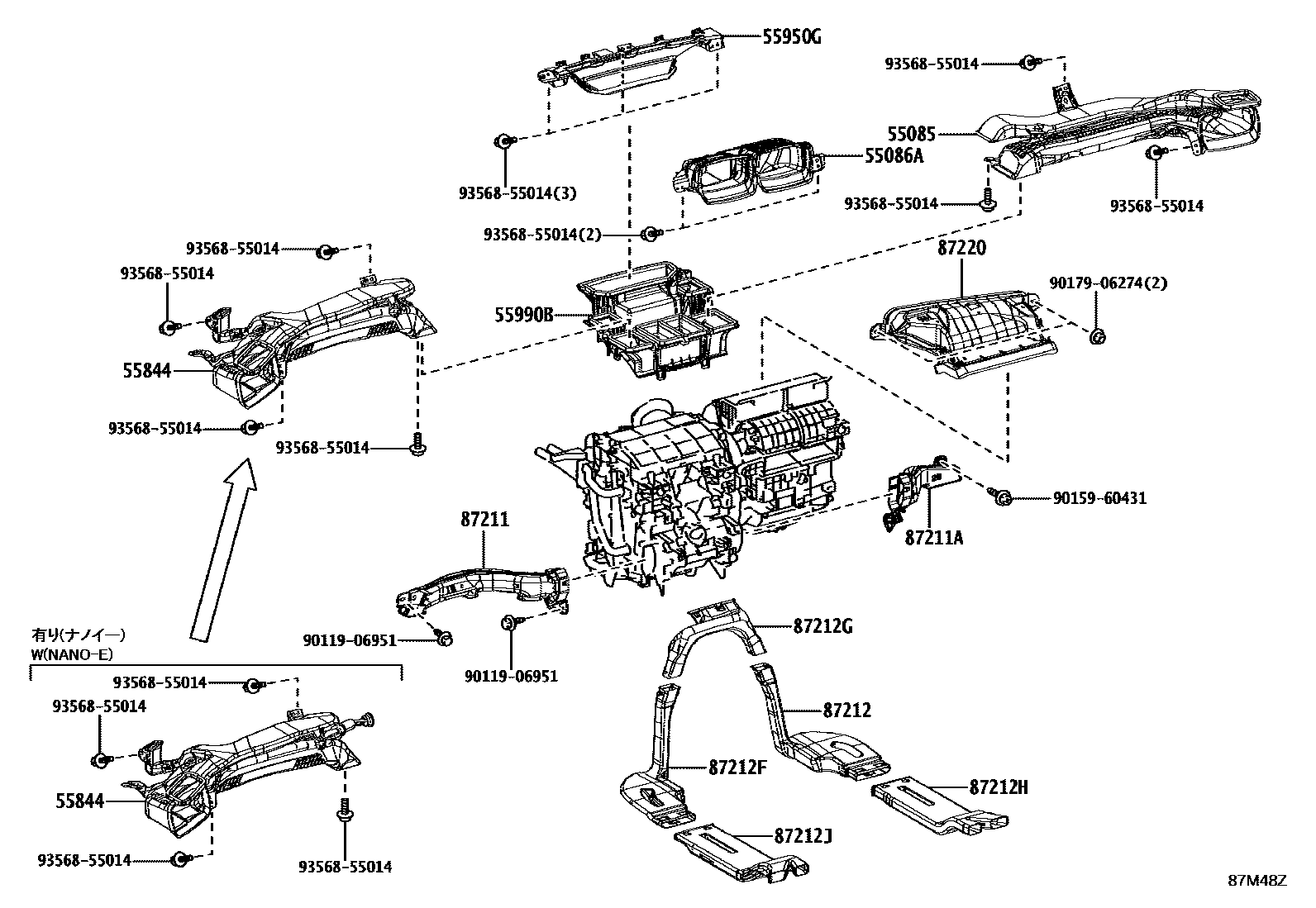

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1AIR DUCT 0002 1AIR DUCT 0003 1SENSOR

55085DUCT SUB-ASSY, HEATER TO REGISTER, NO.2

main55085-52100iMAYH1#..RHD202312

main55085-52110iMAYH1#..LHD202312

55086ADUCT SUB-ASSY, HEATER TO REGISTER, CENTER

main55086-52100iMAYH1#..RHD202312

main55086-52110iMAYH1#..LHD202312

55844DUCT, HEATER TO REGISTER, NO.2

main55084-52250supersedes 55084-52260iMAYH1#..RHD..(ARL,GEN); MAYH1#..RHD..EUR202312

MINUS ION GENERATOR-WITH

main55084-52270iMAYH1#..LHD..EUR; MAYH10..LHD..GEN; MAYH10..TWN202312

MINUS ION GENERATOR-WITH; PHILIPPINES SPEC

main55084-52280iMAYH1#..LHD..(EUR,GEN,TUR)202312

main55084-52260iMAYH1#..RHD..EUR; MAYH10..RHD..GEN202312

MACAU SPEC

55950GNOZZLE ASSY, DEFROSTER

main55950-52240iMAYH1#..RHD202312

main55950-52250iMAYH1#..LHD202312

55990BNOZZLE ASSY, DEFROSTER, LOWER

main55990-52020iMAYH1#..RHD202312

main55990-52030iMAYH1#..LHD202312

87211DUCT, AIR, NO.1

main87211-52270iMAYH1#..LHD202312

main87211-52310iMAYH1#..RHD202312

87211ADUCT, AIR, NO.2

main87211-52280iMAYH1#..LHD202312

main87211-K0060iMAYH1#..RHD202312

87212DUCT, AIR, REAR NO.1

main87212-K0010iMAYH1#..EUR,TUR202312

COLD AREA SPEC

87212FDUCT, AIR, REAR NO.2

main87213-K0010iMAYH1#..EUR,TUR202312

COLD AREA SPEC

87212GDUCT, AIR, REAR NO.3

main87215-K0010iMAYH1#..LHD..(EUR,TUR)202312

COLD AREA SPEC

main87215-K0020iMAYH1#..RHD..EUR202312

COLD AREA SPEC

87212HDUCT, AIR, REAR NO.4

main87216-K0010iMAYH1#..EUR,TUR202312

COLD AREA SPEC

87212JDUCT, AIR, REAR NO.5

main87217-K0010iMAYH1#..EUR,TUR202312

COLD AREA SPEC

87220DUCT ASSY, AIR

main87220-52090iMAYH1#..RHD202312

main87220-52100iMAYH1#..LHD202312

9011906951

main90119-06951

9015960431

main90159-60431

9017906274

main90179-06274

9356855014

main93568-55014

17 parts on this diagram · 3 diagrams in section
