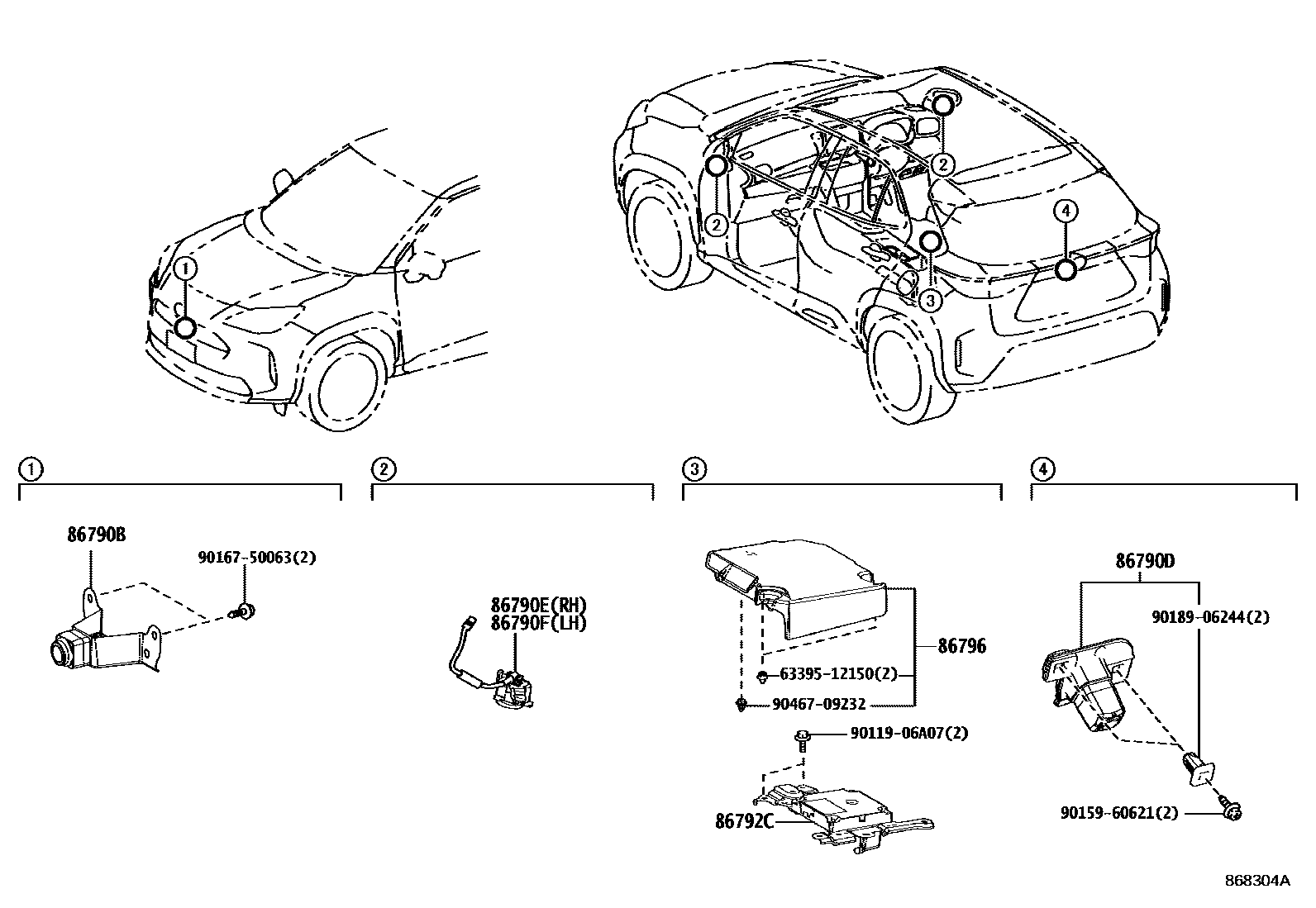

CAMERA & REAR MONITOR DISPLAY
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(*PVM)
86790DCAMERA ASSY, TELEVISION, RR
SINGAPORE SPEC&BLIND SPOT MONITOR-WITH(*BSM); SINGAPORE SPEC&HIGH PACKAGE&BLIND SPOT MONITOR-WITH(*BSM); SINGAPORE SPEC&MID PACKAGE&BLIND SPOT MONITOR-WITH(*BSM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
P/N LABEL=8679052451
BACK MONITOR-WITH(*PVM),P/N LABEL=8679052450
86790FCAMERA ASSY, TELEVISION, SIDE LH
P/N LABEL=8679052441
BACK MONITOR-WITH(*PVM),P/N LABEL=8679052440
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR-WITH(*PVM)
86796COVER, COMPUTER PARKING ASSIST
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9011906A07
main90119-06A07
9015960621
main90159-60621
9016750063
main90167-50063
9018906244
main90189-06244
9046709232
main90467-09232
12 parts on this diagram · 1 diagram in section
