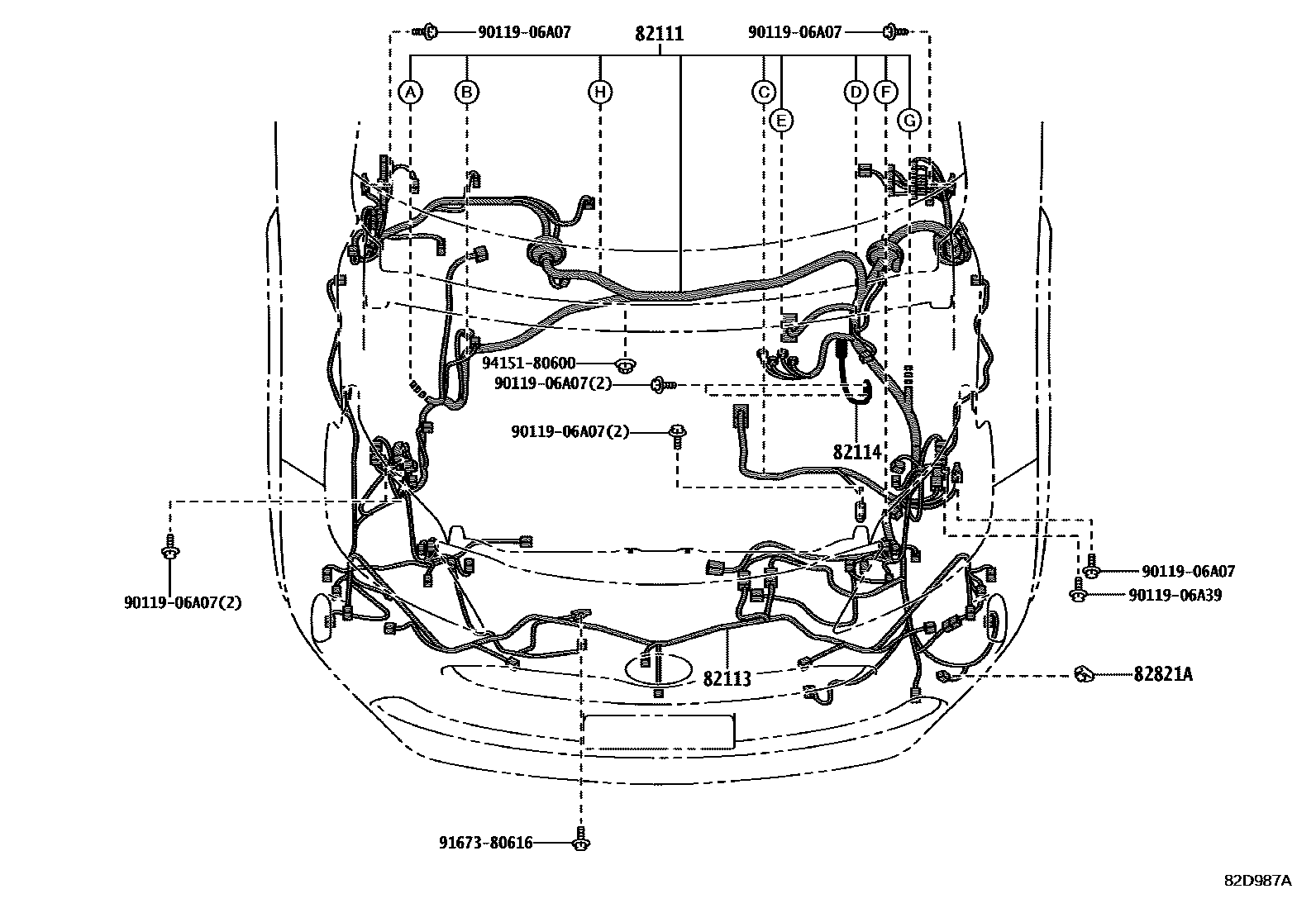

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-5DV81supersedes 82111-5DV71i202210-202401

main82115-5C870i202401-202503

main82115-5C880i202401-202503

HIGH PACKAGE&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST); HIGH PACKAGE&HEADLAMP-LED&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST); MID PACKAGE&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST); MID PACKAGE&HEADLAMP-LED&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST); SINGAPORE SPEC&HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&BLIND SPOT MONITOR-WITH(*BSM)

main82111-5DV50supersedes 82111-5DV40i202008-202208

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-LED

main82111-5DV51supersedes 82111-5DV41i202208-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED&BACK MONITOR-WITH(*PVM)

main82111-5DV80supersedes 82111-5DV70i202008-202208

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED

82113WIRE, ENGINE ROOM, NO.3

main82113-52120i202210-202401

main82113-52150i202008-202401

main82113-52D70supersedes 82113-52D00i202401

main82113-52080i202008-202208

HEADLAMP-LED

main82113-52090i202008-202208

HEADLAMP-LED&BACK MONITOR-WITH(*PVM)

main82113-52110i202208-202401

HEADLAMP-LED&BLIND SPOT MONITOR-WITH

main82113-52160i202008-202208

BACK MONITOR-WITH(*PVM)

main82113-52180i202008-202208

BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH

main82113-52190i202008-202208

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH

main82113-52D10i202401-202503

NEW ZEALAND SPEC&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST); SINGAPORE SPEC&BLIND SPOT MONITOR-WITH(*BSM)

main82113-52D60i202401

SINGAPORE SPEC&HIGH PACKAGE&HEADLAMP-LED&BLIND SPOT MONITOR-WITH(*BSM)

82114WIRE, ENGINE ROOM, NO.4

main82114-52060i202008-202401

82821ACOVER, CONNECTOR

main82821-52410i202008-202112

BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH; BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH

9011906A07

main90119-06A07

9011906A39

main90119-06A39

9167380616

main91673-80616

9415180600

main94151-80600

8 parts on this diagram · 18 diagrams in section
