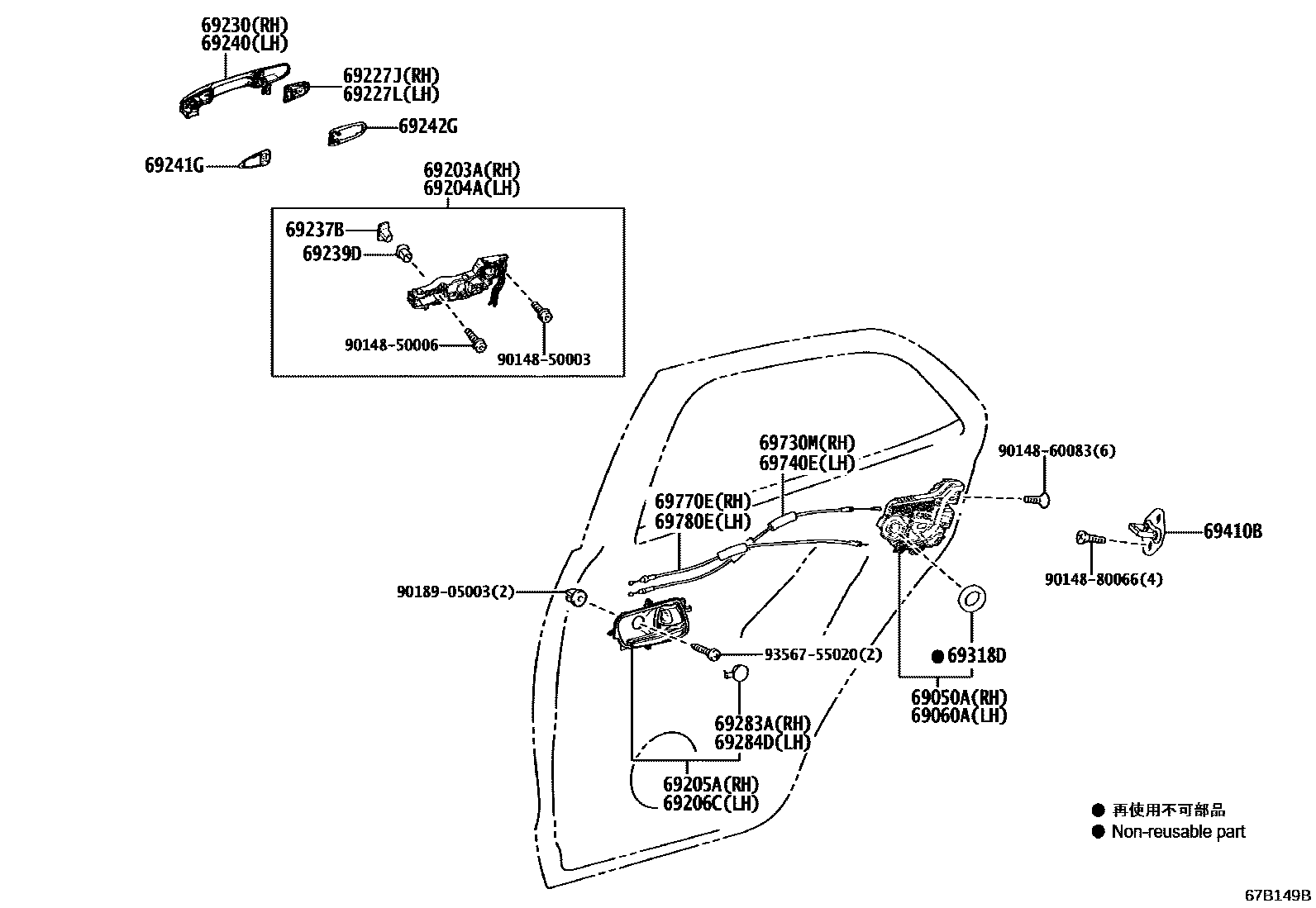

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#,4#,6#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#; BLACK,TRIM2#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
BLACK MC.,209
RED MC.,2PN ,3T3
BEIGE,2SG ,4V6
BRASS GOLD ME.,2TY ,5C2
DK.BLUE M.M.,8W7
SILVER ME.,1L0
MASSIVE GRAY,1L6; MASSIVE GRAY,1L6 ,M23
GRAYISH BLUE,2UR ,8W2
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
BLACK MC.,209 ,2UB
RED MC.,2PN ,3T3
BEIGE,2SG ,4V6
BRASS GOLD ME.,2TY ,5C2
DK.BLUE M.M.,8W7
SILVER ME.,1L0
MASSIVE GRAY,1L6; MASSIVE GRAY,1L6 ,M23
GRAYISH BLUE,2TU ,2UR ,8W2
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#; BLACK,TRIM2#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#,4#,6#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014850006
main90148-50006
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
28 parts on this diagram · 1 diagram in section
