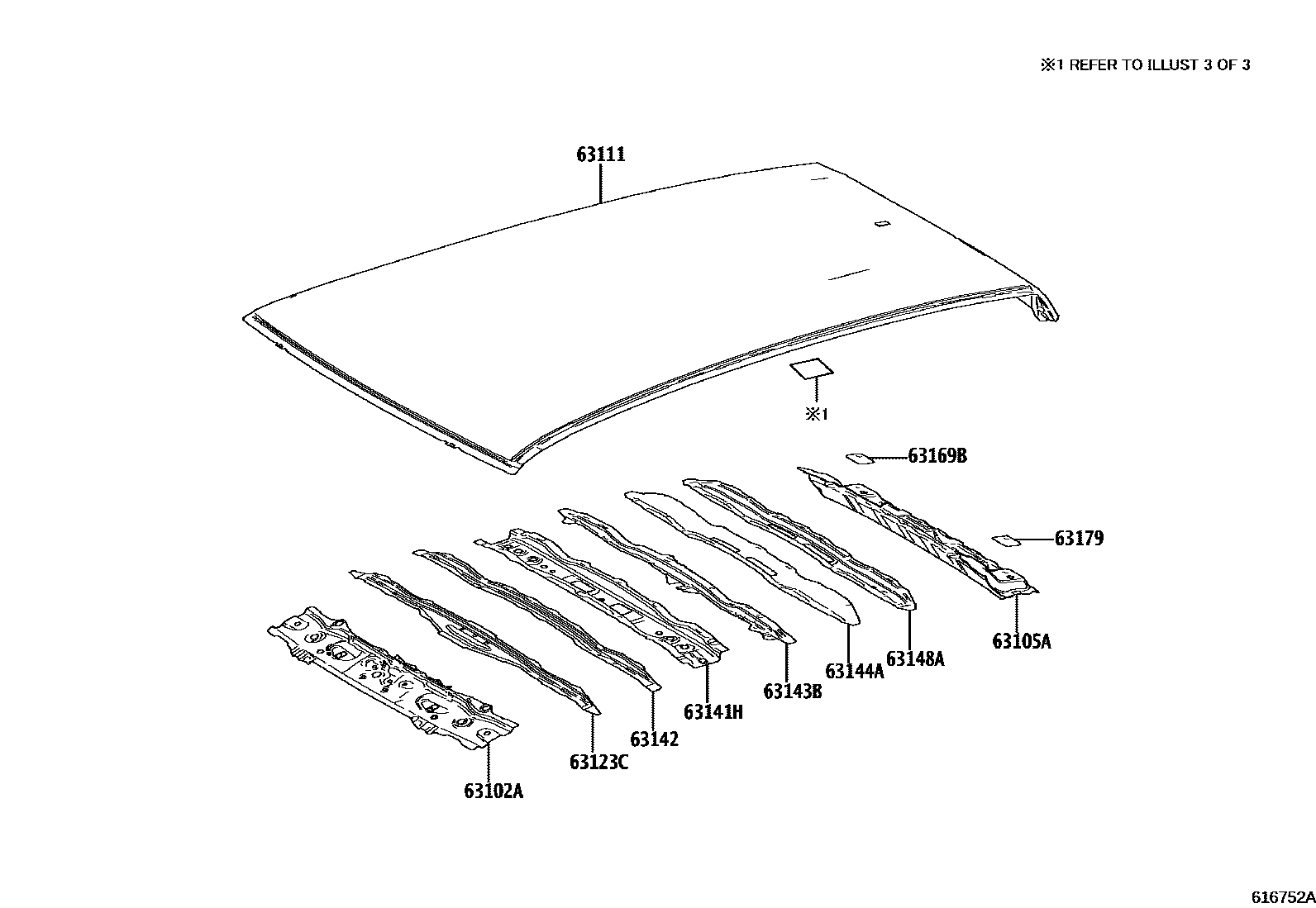

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF RACK 0003 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52270iMXPJ1#202401

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52230iMXPB10,MXPJ1#202008-202401

63111PANEL, ROOF

main63111-52480iMXPB10,MXPJ1#202008-202401

main63111-52490iMXPJ1#..N202401

ROOF RAIL-WITH

63123CREINFORCEMENT, ROOF PANEL

main63123-52030iMXPJ1#202401

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52210iMXPB10,MXPJ1#202008-202401

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-52120iMXPB10,MXPJ1#202008-202401

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52230iMXPB10,MXPJ1#202008-202401

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-52180iMXPB10,MXPJ1#202008-202401

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52150iMXPB10,MXPJ1#202008-202401

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iMXPB10,MXPJ1#202008-202401

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iMXPB10,MXPJ1#202008-202401

11 parts on this diagram · 3 diagrams in section
