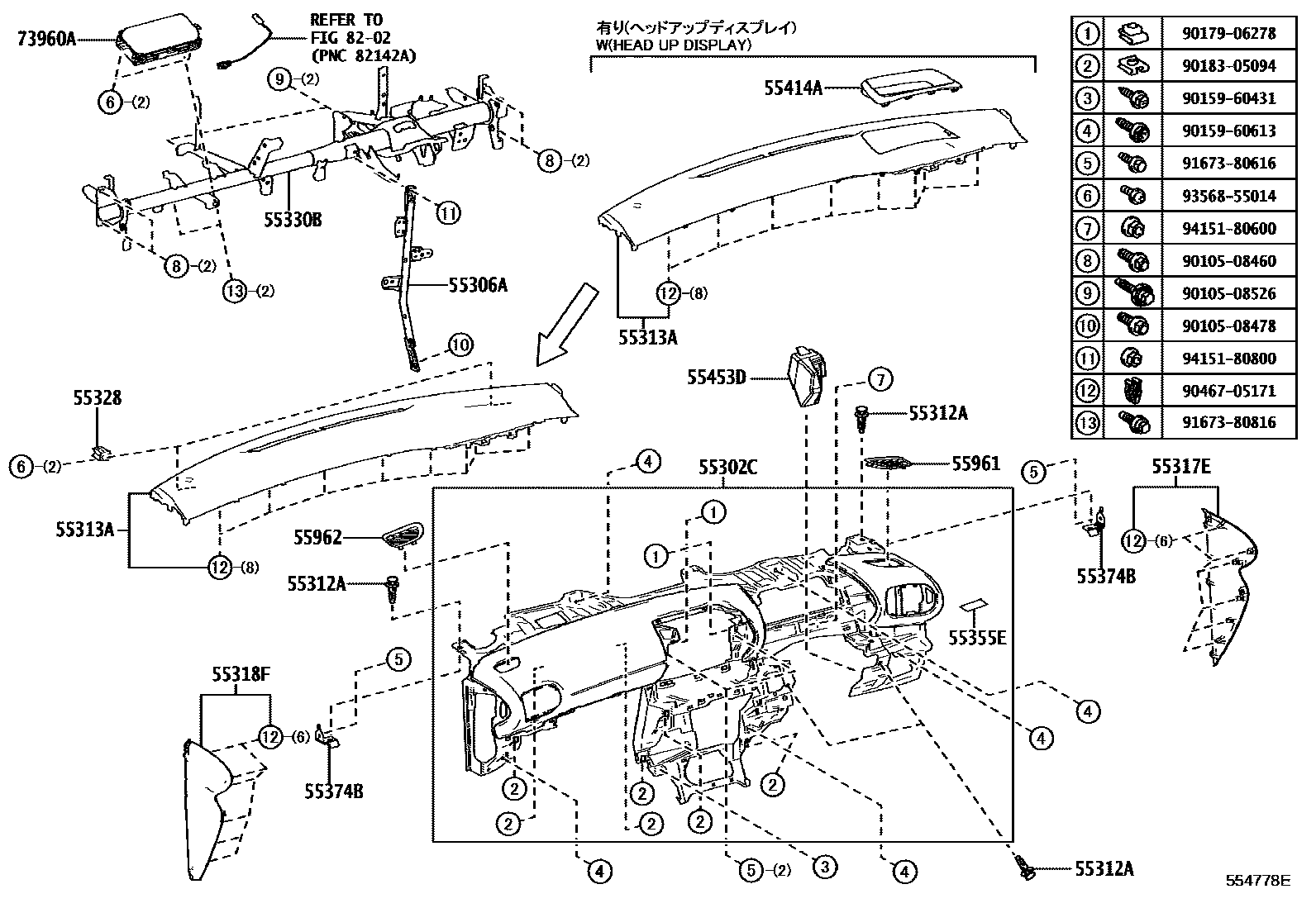

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302CPANEL SUB-ASSY, INSTRUMENT

main55302-K0020-C0iMXPB10,MXPJ1#..N202008-202401

SOFT BLACK,TRIM2#,4#,6#

main55302-52250-C0iMXPJ10..N202401

SINGAPORE SPEC&AUDIO-WITHOUT,SOFT BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-K0010iMXPB10,MXPJ1#202008-202401

55312ACLIP, INSTRUMENT PANEL

main52161-16010×3iMXPB10,MXPJ1#202008-202401

55313APANEL, INSTRUMENT MAIN

main55313-K0020-C0supersedes 55313-K0010-C0iMXPJ1#..N; MXPJ10..V202401

HIGH PACKAGE,BLACK,TRIM2#,4#; NEW ZEALAND SPEC,BLACK,TRIM2#

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-K0010-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-52170-C0iMXPJ10..N; MXPJ10..V202401

BLACK,TRIM2#; BLACK,TRIM2#,4#

main55318-K0010-C0iMXPJ10..N202008-202301

BLACK,TRIM2#,4#,6#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iMXPB10,MXPJ1#202008-202401

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52A10iMXPB10,MXPJ1#202008-202401

main55330-52B20iMXPJ1#202401

55355ECUSHION, INSTRUMENT PANEL

main55355-53050iMXPJ1#202401

55374BBRACKET, INSTRUMENT PANEL

main55363-52010iMXPB10,MXPJ1#202008-202401

RH

main55363-52020iMXPB10,MXPJ1#202008-202401

LH

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-K0010-C0iMXPB10,MXPJ1#..N202008-202401

HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#,6#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52160iMXPJ1#202401

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-K0010-C0iMXPJ1#..N; MXPJ10..V202401

BLACK,TRIM2#; BLACK,TRIM2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-K0010iMXPB10,MXPJ1#202008-202401

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508460

main90105-08460

9010508478

main90105-08478

9010508526

main90105-08526

9015960431

main90159-60431

9015960613

main90159-60613

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

29 parts on this diagram · 4 diagrams in section
