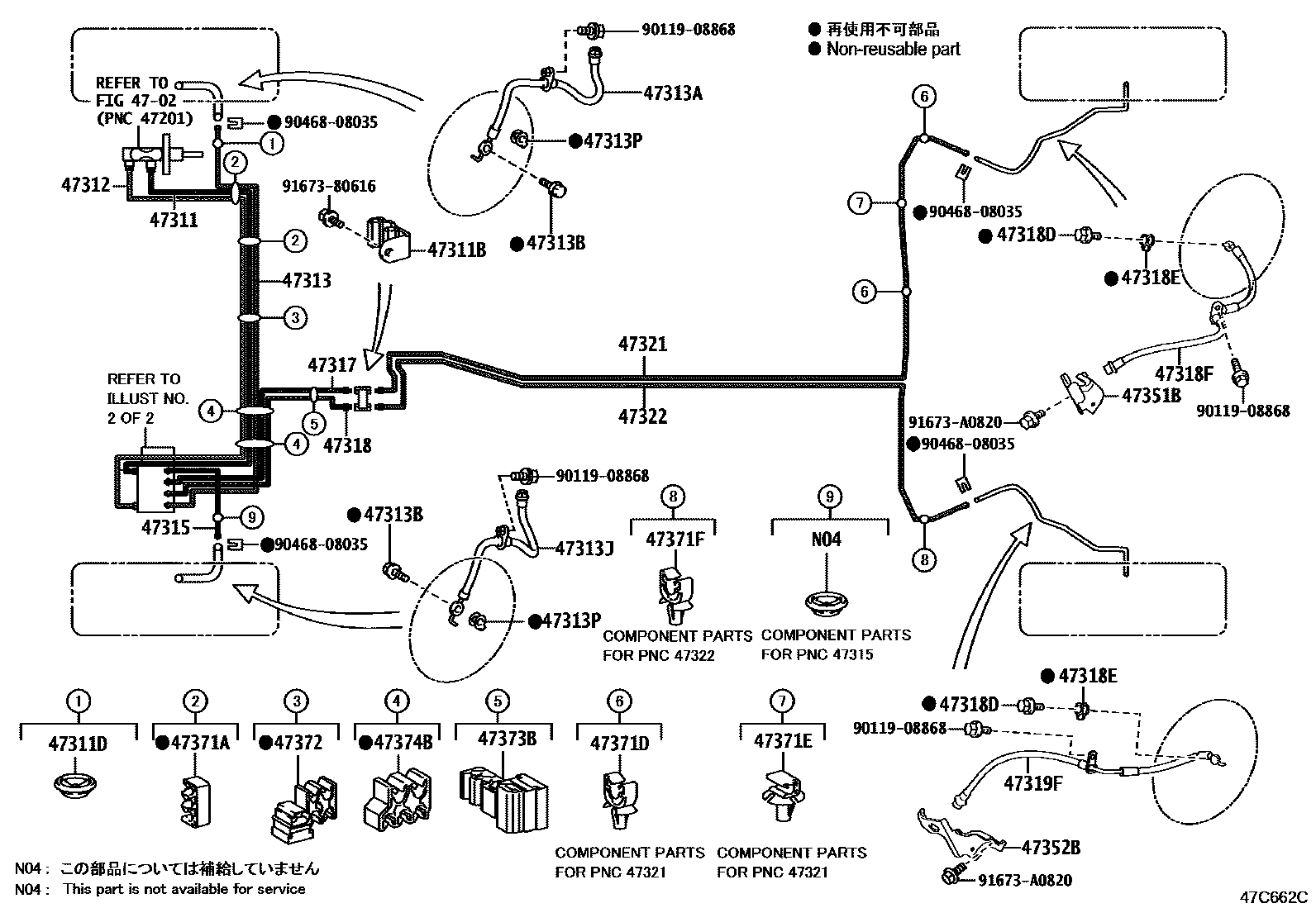

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE 0006 1BRAKE ACTUATOR 0007 1BRAKE ACTUATOR 0008 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-52790iMXPJ1#202401

main47311-K0010iMXPB10202008-202401

main47311-K0020iMXPJ1#202008-202401

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10317iMXPB10,MXPJ1#202008-202401

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037iMXPB10,MXPJ1#202008-202401

47312TUBE, FRONT BRAKE, NO.2

main47312-52730iMXPJ1#202401

main47312-K0010iMXPB10202008-202401

main47312-K0020iMXPJ1#202008-202401

47313TUBE, FRONT BRAKE, NO.3

main47313-52370iMXPJ1#202401

main47313-K0010iMXPB10202008-202401

main47313-K0020iMXPJ1#202008-202401

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J36iMXPJ1#202401

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iMXPB10,MXPJ1#202008-202401

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J37iMXPB10,MXPJ1#202008-202401

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iMXPB10,MXPJ1#202008-202401

47315TUBE, FRONT BRAKE, NO.5

main47315-52320iMXPJ1#202401

main47315-K0010iMXPB10202008-202401

main47315-K0020iMXPJ1#202008-202401

47317TUBE, FRONT BRAKE, NO.7

main47317-52310iMXPJ1#202401

main47317-K0010iMXPB10202008-202401

main47317-K0020iMXPJ1#202008-202401

47318TUBE, FRONT BRAKE, NO.8

main47318-52020iMXPJ1#202401

main47318-K0010iMXPB10202008-202401

main47318-K0020iMXPJ1#202008-202401

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iMXPB10,MXPJ1#202008-202401

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iMXPB10,MXPJ1#202008-202401

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J47iMXPJ10202401

main90947-02J49iMXPJ15202401

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J48iMXPB10,MXPJ10202008-202401

main90947-02J49iMXPJ15202008-202401

47321TUBE, REAR BRAKE, NO.1

main47321-K0010iMXPB10202008-202401

main47321-K0020iMXPJ10202008-202401

main47321-K0040iMXPJ15202008-202401

47322TUBE, REAR BRAKE, NO.2

main47322-K0010iMXPB10,MXPJ10202008-202401

main47322-K0030iMXPJ15202401

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-K0010iMXPB10,MXPJ10202008-202401

main47351-K0050iMXPJ15202008-202401

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-K0010iMXPJ10202401

main47352-K0050iMXPJ15202008-202401

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D95×2iMXPJ1#202008-202401

main90949-01E43×2iMXPB10202008-202401

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01E01×2iMXPB10202008-202401

main90949-01E02×3iMXPJ15202008-202401

main90949-01E10×2iMXPJ10202401

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01D17iMXPJ15202401

main90949-01E01iMXPJ10202008-202401

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E01iMXPB10,MXPJ1#202008-202401

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30iMXPB10202008-202401

main90949-01E51iMXPJ1#202008-202401

47373BCLAMP, BRAKE TUBE, NO.3

main47371-33380×2iMXPJ1#202008-202401

main90949-01E62iMXPB10202008-202401

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E40×2iMXPJ1#202401

main90949-01E62iMXPJ1#202008-202401

9011908868

main90119-08868

9046808035

main90468-08035

9167380616

main91673-80616

91673A0820

main91673-A0820

32 parts on this diagram · 8 diagrams in section
