DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1EV CHARGER 0003 1AC CHARGER LID(RH SIDE) 0004 1DC CHARGER LID(LH SIDE)

8202WIRING & CLAMP

→ Go to FIG 82-02

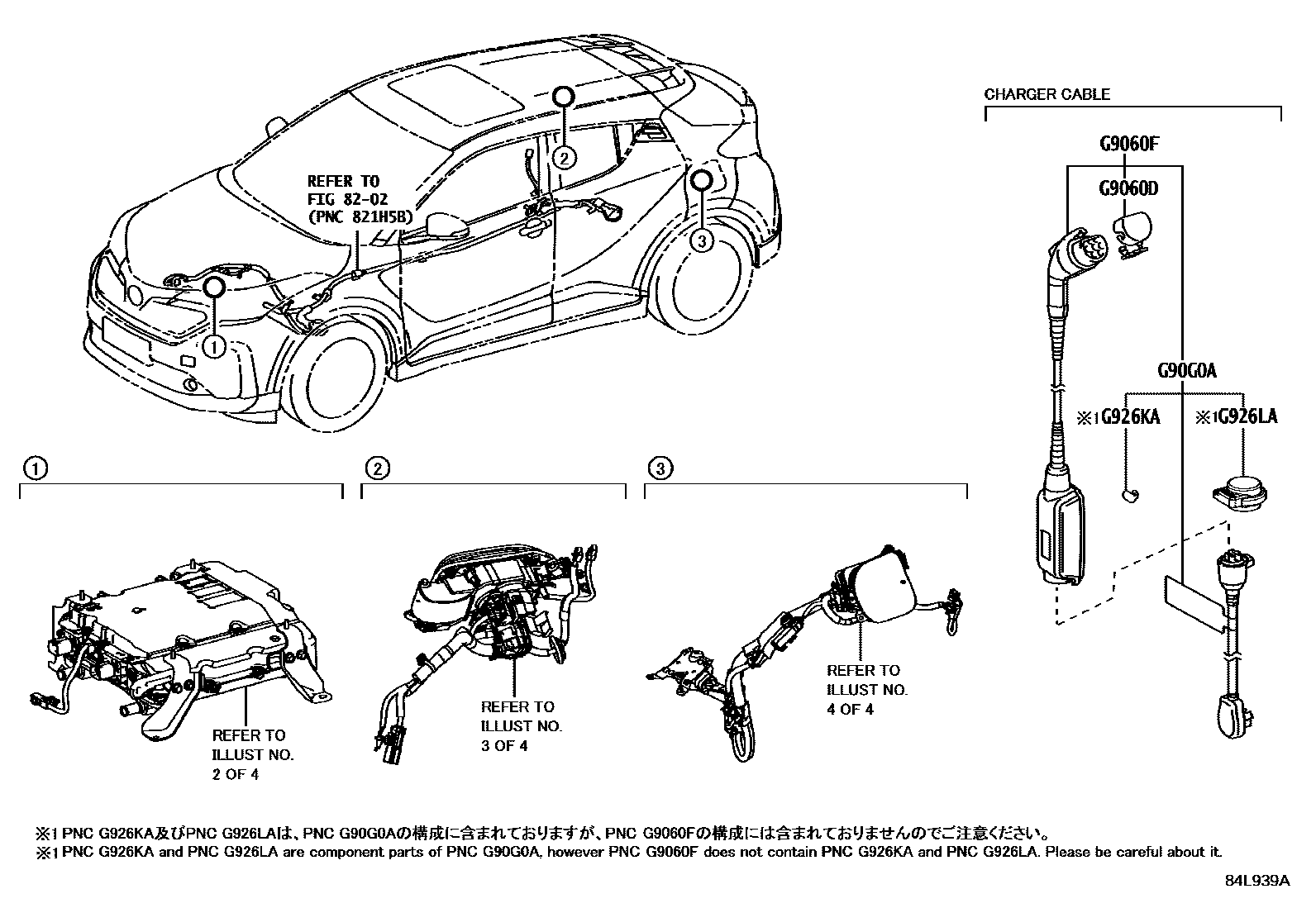

G9060DCOVER, EV CHARGER CABLE

main82821-F4040iKPX10202005

G9060FCABLE ASSY, ELECTRIC VEHICLE CHARGER

mainG9060F4010iKPX10202005

G90G0APLUG ASSY, CABLE EV CHARGER

mainG90G012010iKPX10202005

G926KAKEY, PLUG CABLE EV CHARGER

mainG926K47020iKPX10202005

G926LACOVER, PLUG CABLE EV CHARGER

mainG926L47020iKPX10202005

6 parts on this diagram · 4 diagrams in section
