BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-F4030iKPX10202005

GLASS MARK=E006888

main64818-F4050iKPX10202005

GLASS MARK=E000546

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-F4030iKPX10202005

GLASS MARK=E006888

main64819-F4050iKPX10202005

GLASS MARK=E000546

67005PANEL SUB-ASSY, BACK DOOR

main67005-F4080iKPX10..D202005

main67005-F4090iKPX10..E,N202005

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142×2iKPX10202005

67281BSTOPPER, BACK DOOR, LOWER

main67281-F4020×2iKPX10202005

67293ACUSHION, BACK DOOR STOPPER

main67293-F4021iKPX10202005-202104

main67293-F4022iKPX10202105

67294DCUSHION, BACK DOOR STOPPER, LH

main67294-F4021iKPX10202005-202104

main67294-F4022iKPX10202105

67837NSEAL, BACK DOOR DUST PROOF

main67837-F4080×3iKPX10202005

67881AWEATHERSTRIP, BACK DOOR

main67881-F4030iKPX10202005

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-F4020iKPX10202005

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-F4020iKPX10202005

68131GLASS, BACK DOOR

main68105-F4340iKPX10202005

MARK=CCC E006888

main68105-F4350iKPX10202005

MARK=CCC E000546

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-F4030iKPX10202005

GLASS MARK=E006888

main75573-F4050iKPX10202005

GLASS MARK=E000546

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-F4030iKPX10202005

GLASS MARK=E006888

main75574-F4050iKPX10202005

GLASS MARK=E000546

75575DMOULDING, BACK WINDOW, LOWER

main75575-F4030iKPX10202005

GLASS MARK=E006888

main75575-F4050iKPX10202005

GLASS MARK=E000546

9010908316

main90109-08316

9011906782

main90119-06782

90119C0356

main90119-C0356

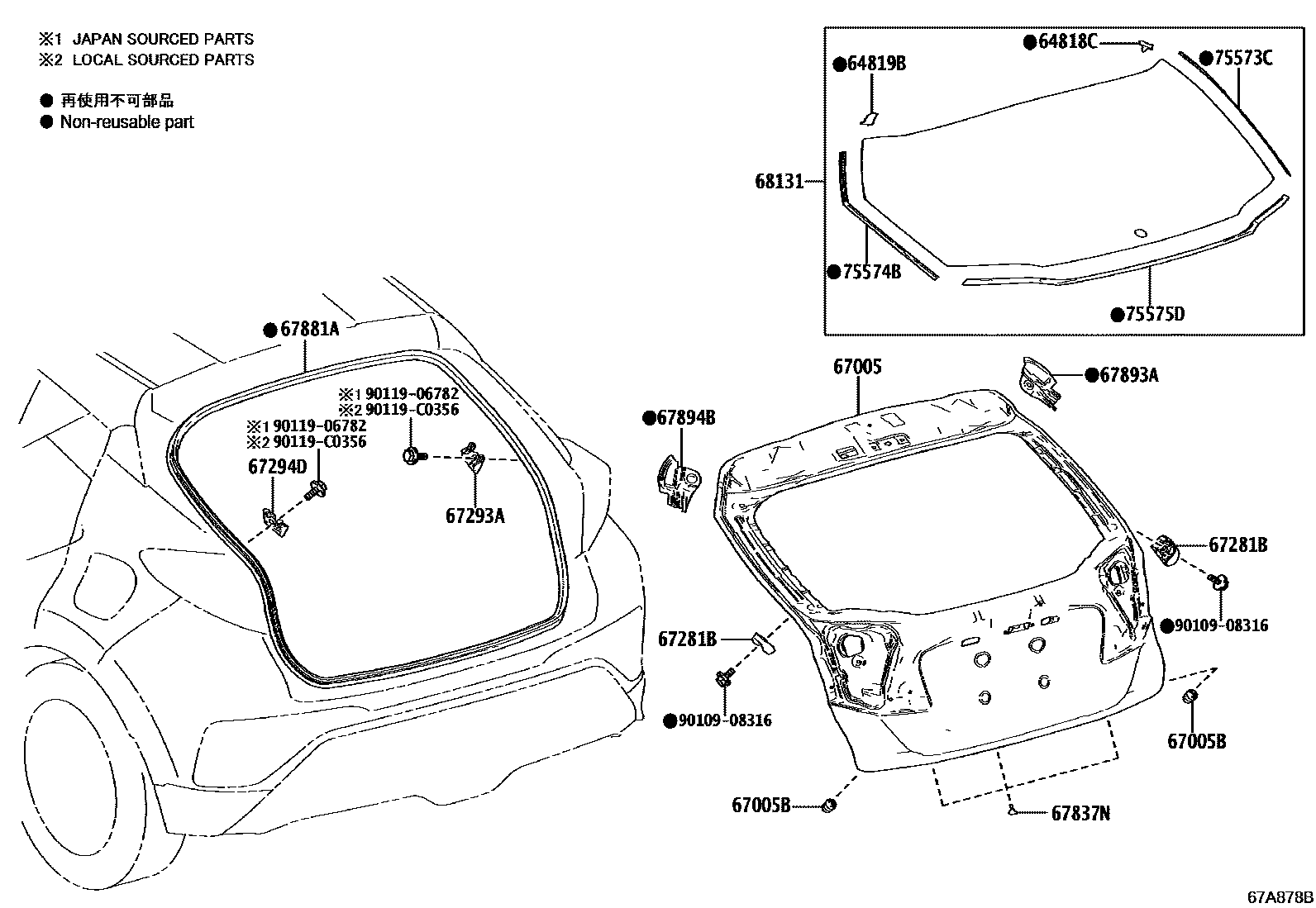

18 parts on this diagram · 2 diagrams in section
