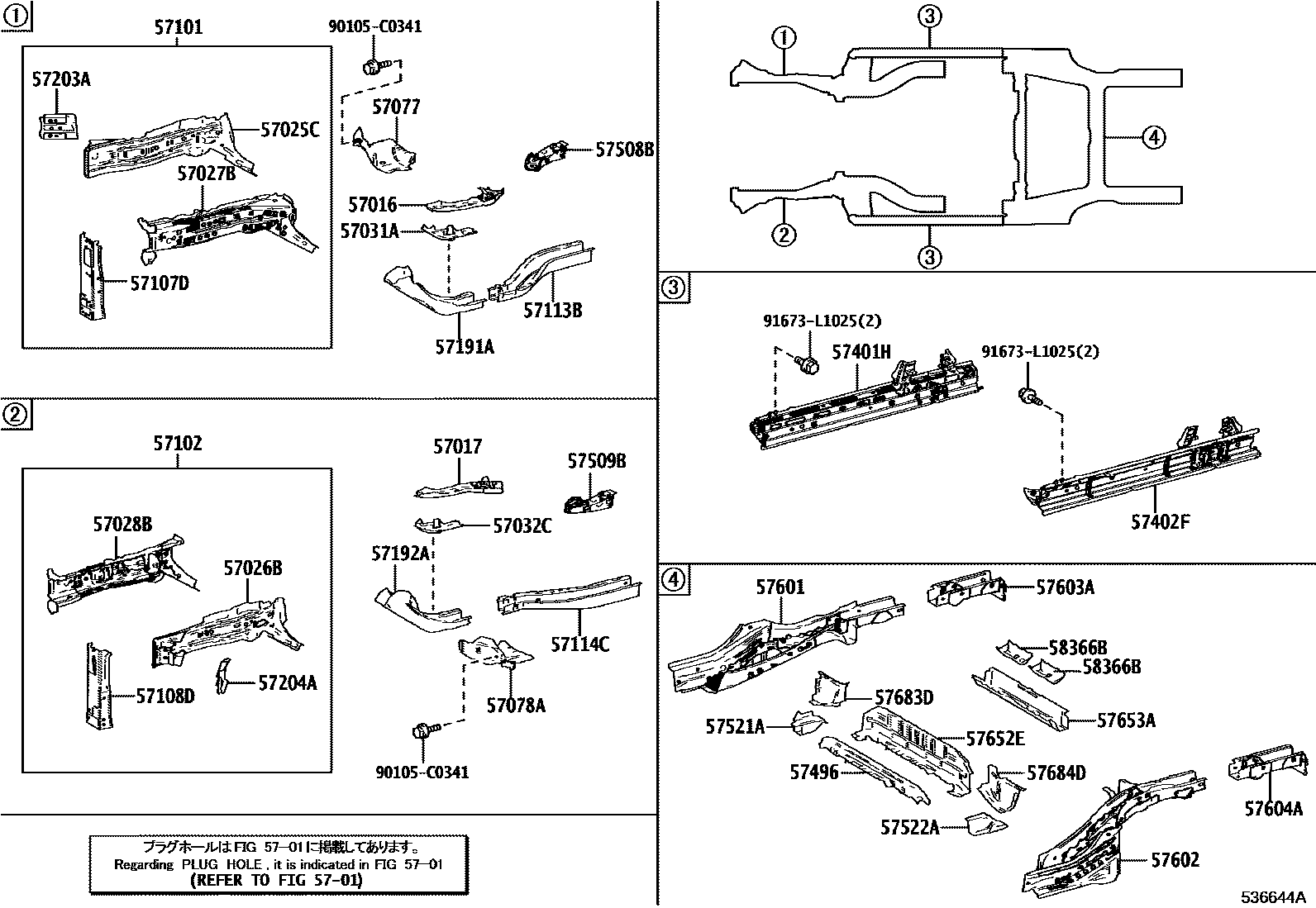

FLOOR SIDE MEMBER

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57053-F4050iKPX10202005

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57054-F4050iKPX10202005

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4030iKPX10202005

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4030iKPX10202005

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4030iKPX10202005

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4030iKPX10202005

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-F4050iKPX10202005

57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-F4050iKPX10202005

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4030iKPX10202005-202006

main57077-F4031iKPX10202006

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4030iKPX10202005-202006

main57078-F4031iKPX10202006

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-F4904iKPX10202005

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-F4903iKPX10202005

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-F4030iKPX10202005

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-F4030iKPX10202005

57113BMEMBER, FRONT SIDE, OUTER RH

main57113-76010iKPX10202005

57114CMEMBER, FRONT SIDE, OUTER LH

main57114-76010iKPX10202005

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-76010iKPX10202005

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-76010iKPX10202005

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4031iKPX10202005

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4031iKPX10202005

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-F4061iKPX10202005

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-F4061iKPX10202005

57496REINFORCEMENT, FLOOR SIDE RAIL, CENTER

main57496-F4010iKPX10202005

57508BREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-F4050iKPX10202005

57509BREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-F4010iKPX10202005

57521ABRACKET, CENTER FLOOR CROSSMEMBER, RH

main57521-F4050iKPX10202005

57522ABRACKET, CENTER FLOOR CROSSMEMBER, LH

main57522-F4050iKPX10202005

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-F4050iKPX10202005

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-F4050iKPX10202005

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-F4030iKPX10202005

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-F4030iKPX10202005

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-F4080iKPX10202005

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4050iKPX10202005

57683DBRACKET, FUEL TANK MOUNTING, NO.1

main57683-F4070iKPX10202005

57684DBRACKET, FUEL TANK MOUNTING, NO.2

main57684-F4070iKPX10202005

58366BBRACKET, FUEL TANK SUPPORT, LH

main58366-F4010×2iKPX10202005

90105C0341

main90105-C0341

91673L1025

main91673-L1025

39 parts on this diagram · 1 diagram in section
