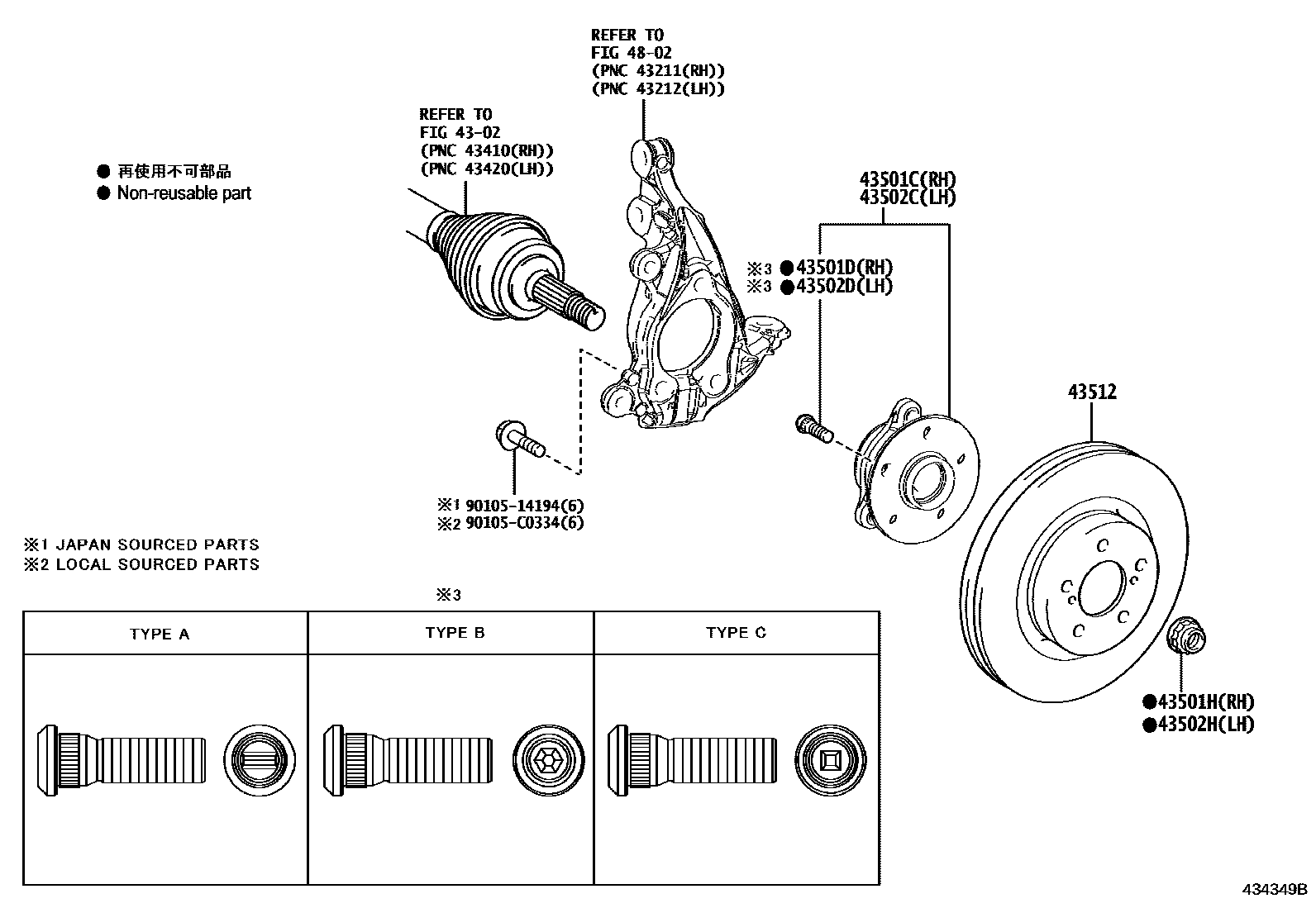

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-F4060iKPX10202005

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKPX10202005

TYPE A:REFER ILLUST.

main90942-02081iKPX10202005

TYPE B:REFER ILLUST.

main90942-02082iKPX10202005

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKPX10202005

(J)

main90177-C0004iKPX10202005

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-F4060iKPX10202005

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKPX10202005

TYPE A:REFER ILLUST.

main90942-02081iKPX10202005

TYPE B:REFER ILLUST.

main90942-02082iKPX10202005

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKPX10202005

(J)

main90177-C0004iKPX10202005

(L)

43512DISC, FRONT

main43512-F4030iKPX10202005

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

90105C0334

main90105-C0334

11 parts on this diagram · 1 diagram in section
