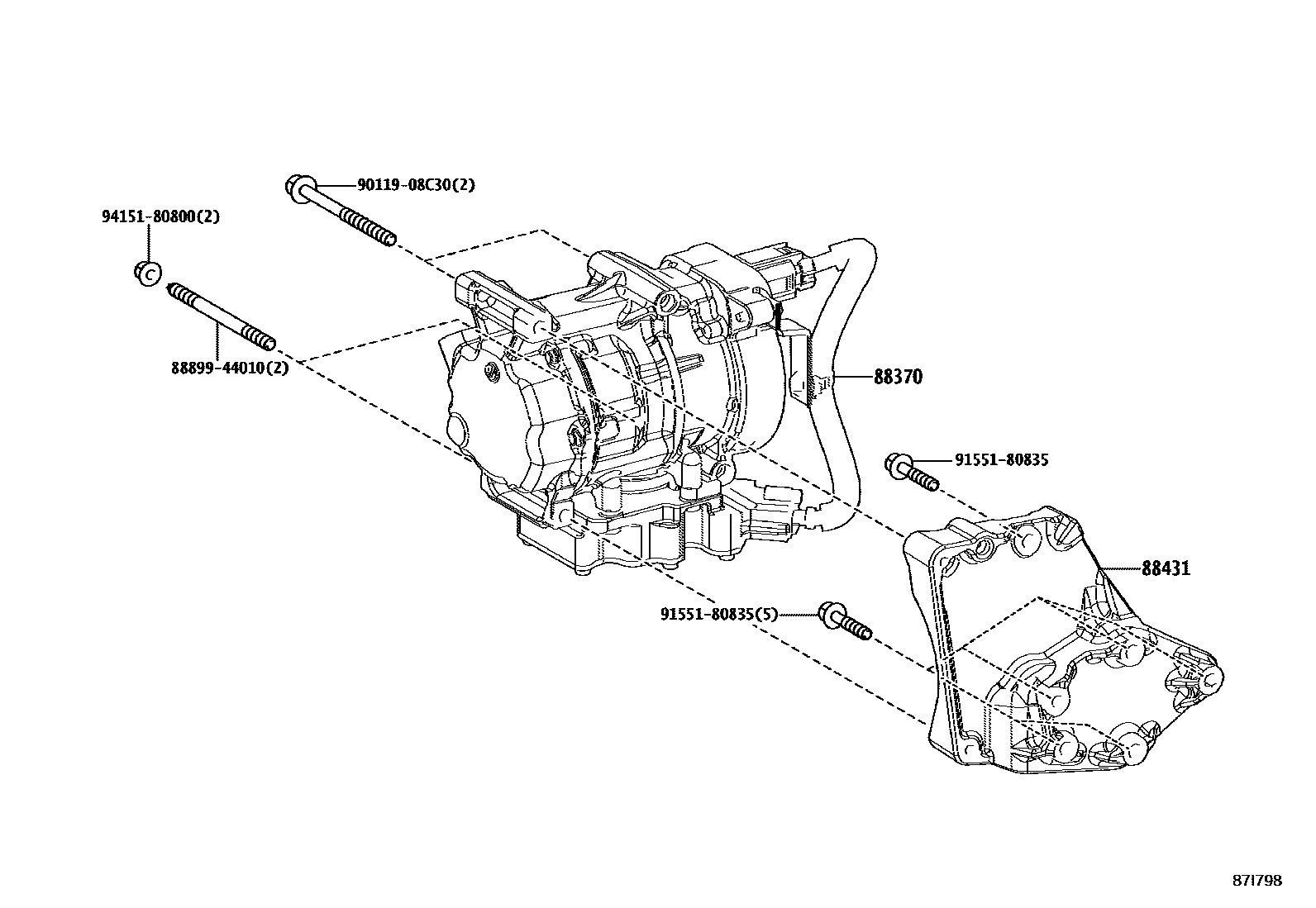

HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-10010iKMA10202004-202107

main88370-10011iKMA10202108

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-76010iKMA10202004

8889944010COVER, EVAPORATOR

main88899-44010

9011908C30

main90119-08C30

9155180835

main91551-80835

9415180800

main94151-80800

6 parts on this diagram · 1 diagram in section
