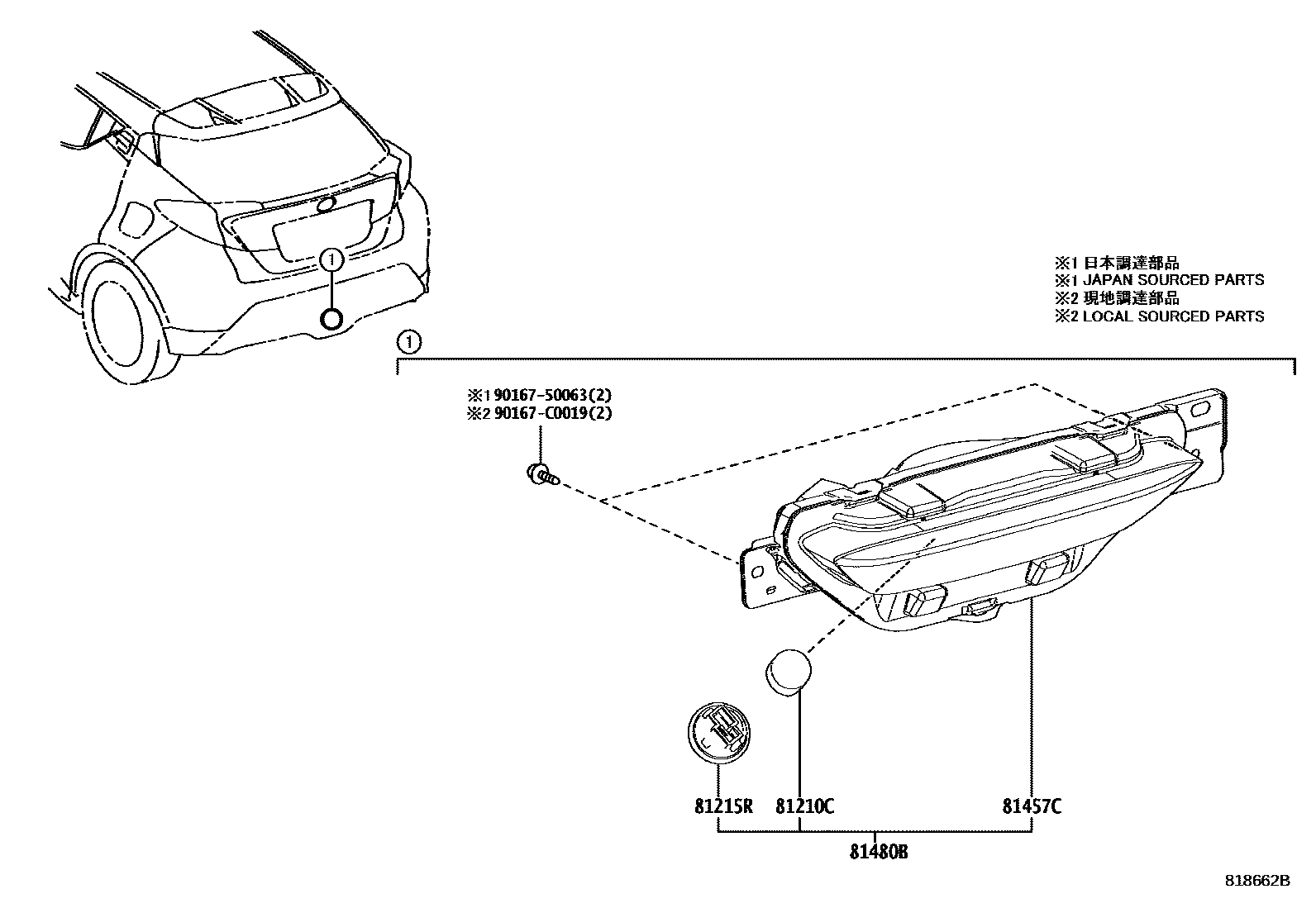

REAR FOG LAMP

0001 1 0004 1

81210CBULB, REAR FOG LAMP

main90981-CD005iMAXA10..D,G,N201808-202106

12V 21W

81215RSOCKET & WIRE, REAR FOG LAMP

main81459-F4030iMAXA10..D,G,N201808-202106

81457CLENS & BODY, REAR FOG LAMP

main81457-F4030iMAXA10..D,G,N201808-202106

81480BLAMP ASSY, REAR FOG

main81480-F4030iMAXA10..D,G,N201808-202106

main81480-F4150iMAXA10..G;MAXH10..E,G202106

9016750063

main90167-50063

90167C0019

main90167-C0019

6 parts on this diagram · 2 diagrams in section
