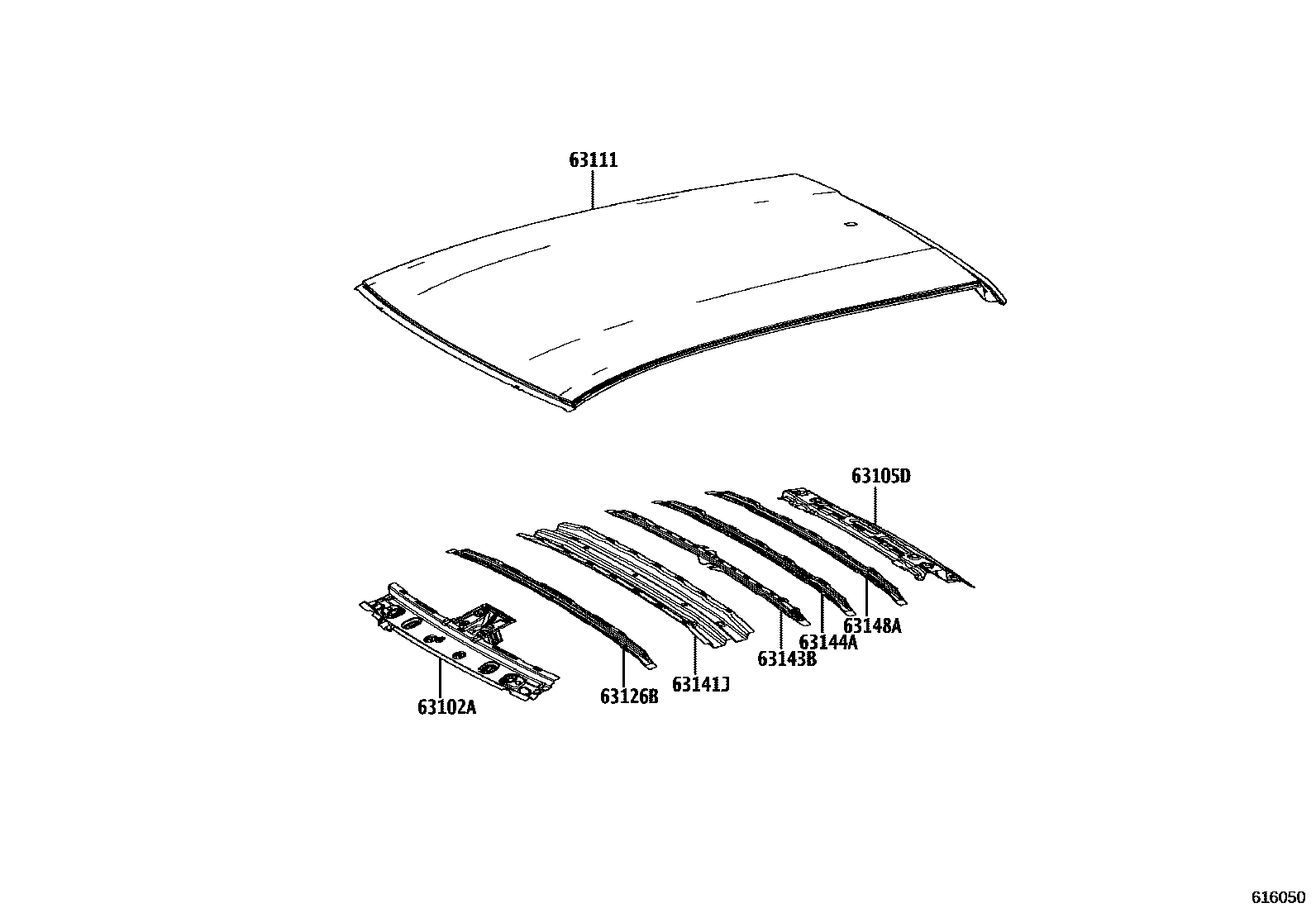

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(MOON) 0003 1SLIDING ROOF(MOON)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-F4040supersedes 63102-F4040iMAXH10;MAXA10..G,N202106

main63102-F4040iMAXA10..D; MAXA10..N201808-202106

MOON ROOF-WITHOUT

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-F4040iMAXH10;MAXA10..D,G,N202106

63111PANEL, ROOF

main63111-F4060supersedes 63111-F4050iMAXA10..E,G,N201811

main63111-F4050iMAXA10..E,G201808-201910

MOON ROOF-WITHOUT

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-F4040iMAXA10..D; MAXA10..N201808-202106

MOON ROOF-WITHOUT

63141JREINFORCEMENT, ROOF PANEL

main63141-F4040iMAXA10..D; MAXA10..N201808-202106

MOON ROOF-WITHOUT

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-F4040iMAXA10..D201808

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-F4040iMAXA10..D201808

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-F4040iMAXA10..D201808

8 parts on this diagram · 3 diagrams in section
