FRONT SEAT & SEAT TRACK

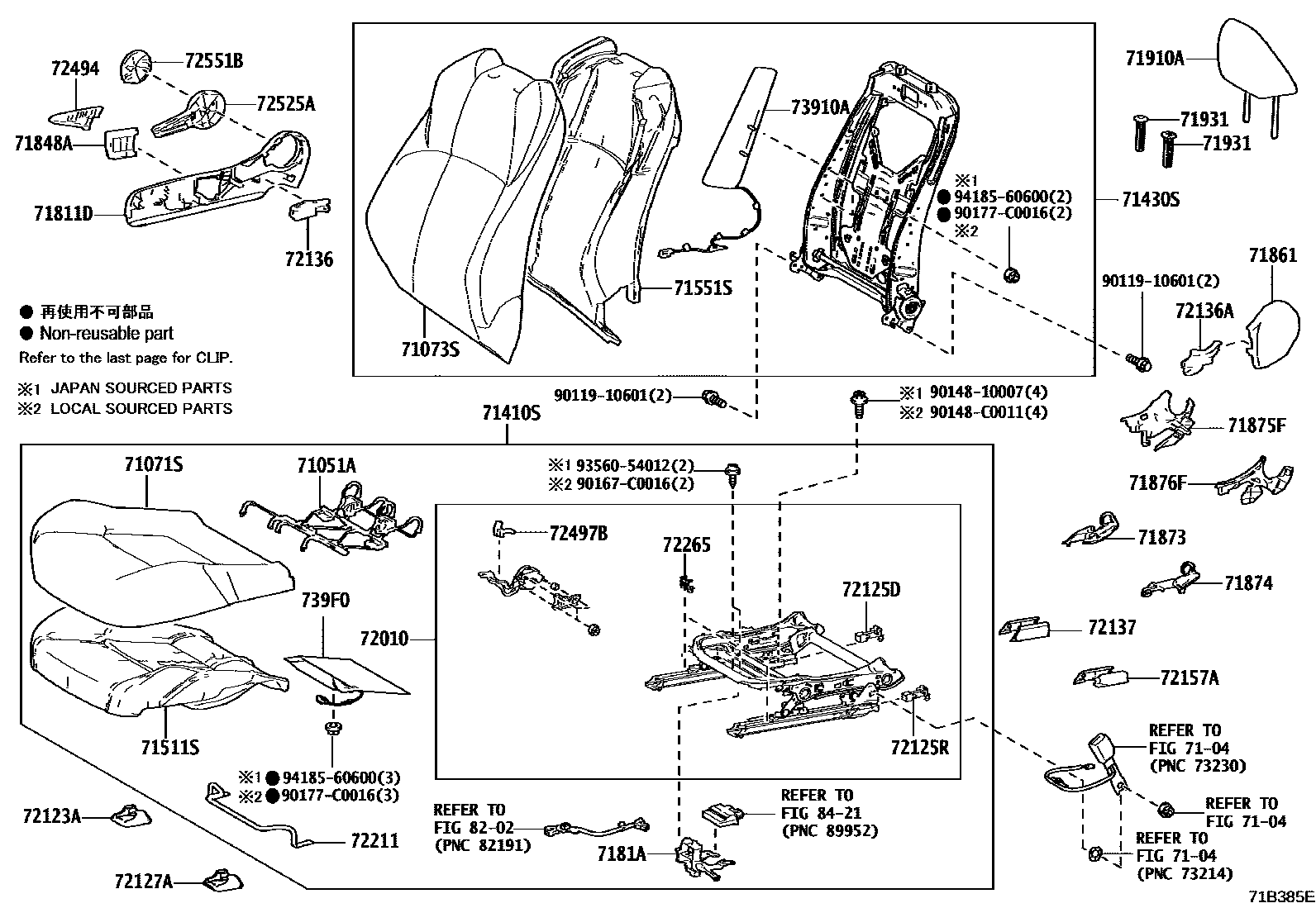

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-06040i201807-202105
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-F4180-B1i201807-201908
DK.GRAY,TRIM2#
main71071-F4181-B1i201908-202005
DK.GRAY,TRIM2#
main71071-F4181-B2i202005-202105
DK.GRAY,TRIM2#; LADY PACKAGE,DK.GRAY,TRIM2#; SPORT PACKAGE,DK.GRAY,TRIM2#
main71071-F4190-C1i201807-201908
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71071-F4191-C1i201908-202005
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71071-F4191-C2i202005-202102
BLACK,TRIM2#; PLUS PACKAGE,BLACK,TRIM2#
main71071-F4192-C2i202102-202105
BLACK,TRIM2#; PLUS PACKAGE,BLACK,TRIM2#
main71071-F4460-B4i202105-202304
BLACK,TRIM2#
main71071-F4460-B5i202105-202304
BLUEISH GRAY,TRIM2#; LADY PACKAGE,BLUEISH GRAY,TRIM2#
main71071-F4560-C0i202105-202304
BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71071-F4560-C1i202105-202304
DK.SADDLE TAN,TRIM2#
main71071-F4561-C2i202304
BLACK,TRIM2#
main71071-F4561-C3i202304
DK.SADDLE TAN,TRIM2#
main71071-F4660-C0i202304
BLACK,TRIM2#
main71071-F4710-B0i202304
BLACK,TRIM2#; HV ENTRY PKG,BLACK,TRIM2#
main71071-YK040i202006-202105
LADY PACKAGE
main71071-YK050i202008-202105
SPORT PACKAGE
main71071-YK070i202207-202304
LADY PACKAGE
main71071-YK071i202304
LADY PACKAGE
main71071-YK080i202207-202304
SPORT PACKAGE
main71071-YK081i202304
SPORT PACKAGE
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-F4190-B1i201807-201908
DK.GRAY,TRIM2#
main71073-F4191-B1supersedes 71073-F4201-C2i201908-202102
DK.GRAY,TRIM2#
main71073-F4191-B3i202105-202304
BLACK,TRIM2#
main71073-F4191-B4i202105-202304
BLUEISH GRAY,TRIM2#; LADY PACKAGE,BLUEISH GRAY,TRIM2#
main71073-F4192-B1i202102-202105
DK.GRAY,TRIM2#; LADY PACKAGE,DK.GRAY,TRIM2#; SPORT PACKAGE,DK.GRAY,TRIM2#
main71073-F4200-C2i201807-201908
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71073-F4201-C2i201908-202102
BLACK,TRIM2#
main71073-F4202-C2i202102-202105
BLACK,TRIM2#; PLUS PACKAGE,BLACK,TRIM2#
main71073-F4380-C0i202304
BLACK,TRIM2#
main71073-F4600-C0i202105-202304
BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71073-F4600-C2i202105-202304
DK.SADDLE TAN,TRIM2#
main71073-F4750-B0i202304
BLACK,TRIM2#; HV ENTRY PKG,BLACK,TRIM2#
main71073-F4760-C0i202304
BLACK,TRIM2#
main71073-F4760-C1i202304
DK.SADDLE TAN,TRIM2#
main71073-YK040i202006-202105
LADY PACKAGE
main71073-YK050i202008-202105
SPORT PACKAGE
main71073-YK051i202304
SPORT PACKAGE
main71073-YK070i202207-202304
LADY PACKAGE
main71073-YK071i202304
LADY PACKAGE
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-F4290-C1i201807-201908
BLACK,TRIM2#
main71410-F4291-C0i201908-202005
BLACK,TRIM2#
main71410-F4291-C1i202005-202105
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71410-F4300-C1i201807-201908
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71410-F4301-C0i201908-202005
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71410-F4301-C3i202005-202102
BLACK,TRIM2#; PLUS PACKAGE,BLACK,TRIM2#
main71410-F4302-C0i202102-202105
BLACK,TRIM2#; PLUS PACKAGE,BLACK,TRIM2#
main71410-F4620-C0i202304
BLACK,TRIM2#
main71410-F4630-C0i202304
BLACK,TRIM2#; HV ENTRY PKG,BLACK,TRIM2#
main71410-F4640-C0i202304
BLACK,TRIM2#
main71410-F4640-C1i202304
DK.SADDLE TAN,TRIM2#
main71410-F4720-C4i202105-202304
BLACK,TRIM2#
main71410-F4720-C5i202105-202304
BLUEISH GRAY,TRIM2#; LADY PACKAGE,BLUEISH GRAY,TRIM2#
main71410-F4A40-C0i202105-202304
BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71410-F4A40-C1i202105-202304
DK.SADDLE TAN,TRIM2#
main71410-YK040i202006-202105
LADY PACKAGE
main71410-YK050i202008-202105
SPORT PACKAGE
main71410-YK070i202207-202304
LADY PACKAGE
main71410-YK071i202304
LADY PACKAGE
main71410-YK080i202207-202304
SPORT PACKAGE
main71410-YK081i202304
SPORT PACKAGE
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-F4240-C1i201807-201908
BLACK,TRIM2#
main71430-F4241-C0supersedes 71430-F4251-C0i201908-202102
BLACK,TRIM2#
main71430-F4241-C1i202105-202304
BLACK,TRIM2#
main71430-F4241-C2i202105-202304
BLUEISH GRAY,TRIM2#; LADY PACKAGE,BLUEISH GRAY,TRIM2#
main71430-F4242-C0i202102-202105
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71430-F4250-C2i201807-201908
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71430-F4251-C0i201908-202102
BLACK,TRIM2#
main71430-F4252-C0i202102-202105
BLACK,TRIM2#; PLUS PACKAGE,BLACK,TRIM2#
main71430-F4600-C0i202304
BLACK,TRIM2#
main71430-F4610-C0i202304
BLACK,TRIM2#; HV ENTRY PKG,BLACK,TRIM2#
main71430-F4620-C0i202304
BLACK,TRIM2#
main71430-F4620-C1i202304
DK.SADDLE TAN,TRIM2#
main71430-F4800-C0i202105-202304
BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71430-F4800-C2i202105-202304
DK.SADDLE TAN,TRIM2#
main71430-YK040i202006-202105
LADY PACKAGE
main71430-YK050i202207-202304
SPORT PACKAGE
main71430-YK051i202304
SPORT PACKAGE
main71430-YK070i202207-202304
LADY PACKAGE
main71430-YK071i202304
LADY PACKAGE
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-F4050i202105
main71511-F4070i201807-202105
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-F4080i201807-202105
main71551-F4160i202304
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-07090-C0i202105
BLACK,TRIM2#
main71811-F4100-C0i201807-202105
BLACK,TRIM2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
main7181A-F4030i201807-202105
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-47040-C1i201807-202105
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-07050-C0i202105
BLACK,TRIM2#
main71861-F4070-C0i201807-202105
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-F4060-C0i201807-202105
BLACK,TRIM2#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-F4070-C0i201807-202105
BLACK,TRIM2#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-07030-C0i202105
BLACK,TRIM2#
main71875-F4090-C0i201807-202105
BLACK,TRIM2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-07040-C0i202105
BLACK,TRIM2#
main71875-F4100-C0i201807-202105
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-F4070-C2×2i201807-201908
BLACK,TRIM2#
main71910-F4071-C2×2i201908-202005
BLACK,TRIM2#
main71910-F4071-C3×2i202105-202304
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#
main71910-F4071-C4×2i202005-202105
BALCK,TRIM2#; LADY PACKAGE,BALCK,TRIM2#; SPORT PACKAGE,BALCK,TRIM2#
main71910-F4080-C2×2i201807-201908
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71910-F4081-C2×2i201908-202005
BLACK,TRIM2#; LADY PACKAGE,BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71910-F4081-C5×2i202005-202105
BALCK,TRIM2#; PLUS PACKAGE,BALCK,TRIM2#
main71910-F4081-C6×2i202105-202304
BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#
main71910-F4081-E1×2i202105-202304
DK.SADDLE TAN,TRIM2#
main71910-F4250-C0×2i202304
BLACK,TRIM2#; HV ENTRY PKG,BLACK,TRIM2#
main71910-F4260-C0×2i202304
BLACK,TRIM2#
main71910-F4260-E0×2i202304
DK.SADDLE TAN,TRIM2#
main71910-YK050×2i202006-202105
LADY PACKAGE
main71910-YK060×2i202008-202105
SPORT PACKAGE
main71910-YK061-C0×2i202304
SPORT PACKAGE,BLACK,TRIM2#
main71910-YK110-C0×2i202207-202304
LADY PACKAGE,BLACK,TRIM2#
main71910-YK111-C0×2i202304
LADY PACKAGE,BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-06070-C0×2i201807-202105
W(LOCK),BLACK,TRIM2#
main71931-06060-C0×2i201807-202105
W/O(LOCK),BLACK,TRIM2#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-07040i202105-202304
main72010-0R070i202304
main72010-F4080i201807-201906
LADY PACKAGE; SPORT PACKAGE
main72010-F4081i201907-202105
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-F4030i201807-202105
72125DCOVER, SEAT TRACK, UPPER REAR NO.2
main72125-F4010i202105
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
main72125-F4010i201807-202105
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-F4030i201807-202105
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-07030i202105
main72136-F4050i201807-202105
72136ASPACER, SEAT TRACK, LOWER NO.2
main72136-F4060i201807-202105
main72136-F4150i202304
72137COVER, SEAT TRACK, OUTER RH
main72137-F4020i201807-202105
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-F4020i201807-202105
72211HANDLE, SEAT TRACK ADJUSTING
main72211-06140i202105
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-F4010×2i202105
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-F4080-C0i201807-202105
BLACK,TRIM2#
72497BCOVER, VERTICAL ADJUSTER BRACKET, RH
main72498-F4070i201807-202105
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-F4090-C0i201807-202105
BLACK,TRIM2#
72551BCOVER, RECLINING HINGE, RH
main72551-F4080-C0i201807-202105
BLACK,TRIM2#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-F4051i202105-202304
main73910-F4080i202304
739F0AIRBAG ASSY, FRONT SEAT CUSHION, RH
main739F0-F4020i201807-202105
8202WIRING & CLAMP
→ Go to FIG 82-02
8421AIR BAG
→ Go to FIG 84-21
9011910601
main90119-10601
9014810007
main90148-10007
90148C0011
main90148-C0011
90167C0016
main90167-C0016
90177C0016
main90177-C0016
9356054012
main93560-54012
9418560600
main94185-60600

44 parts on this diagram · 7 diagrams in section
