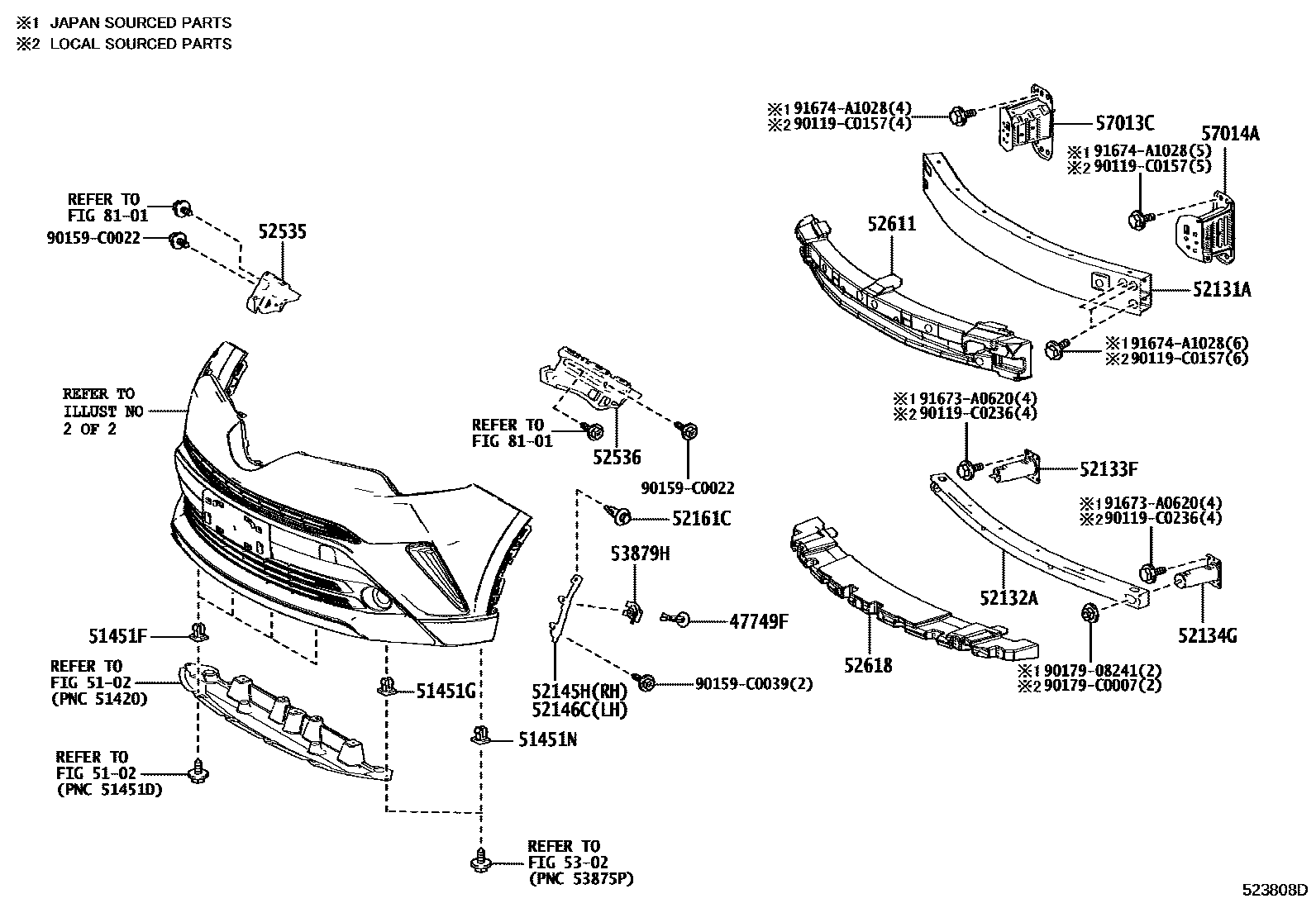

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102SUSPENSION CROSSMEMBER & UNDER COVER
51451FGROMMET, NO.1
(J)
(L)
51451GGROMMET, NO.2
(J)
(L)
51451NGROMMET, NO.3
(J)
(L)
52131AREINFORCEMENT, FRONT BUMPER
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52133FBRACKET, FRONT BUMPER, RH
52134GBRACKET, FRONT BUMPER, LH
52145HSTAY, FRONT BUMPER SIDE, RH
52146CSTAY, FRONT BUMPER SIDE, LH
52161CPIECE, FRONT BUMPER
(L)
(J)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5302HOOD & FRONT FENDER
53879HRETAINER, FRONT FENDER LINER
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
8101HEADLAMP
90119C0157
main90119-C0157
90119C0236
main90119-C0236
90159C0022
main90159-C0022
90159C0039
main90159-C0039
9017908241
main90179-08241
90179C0007
main90179-C0007
91673A0620
main91673-A0620
91674A1028
main91674-A1028
29 parts on this diagram · 4 diagrams in section
