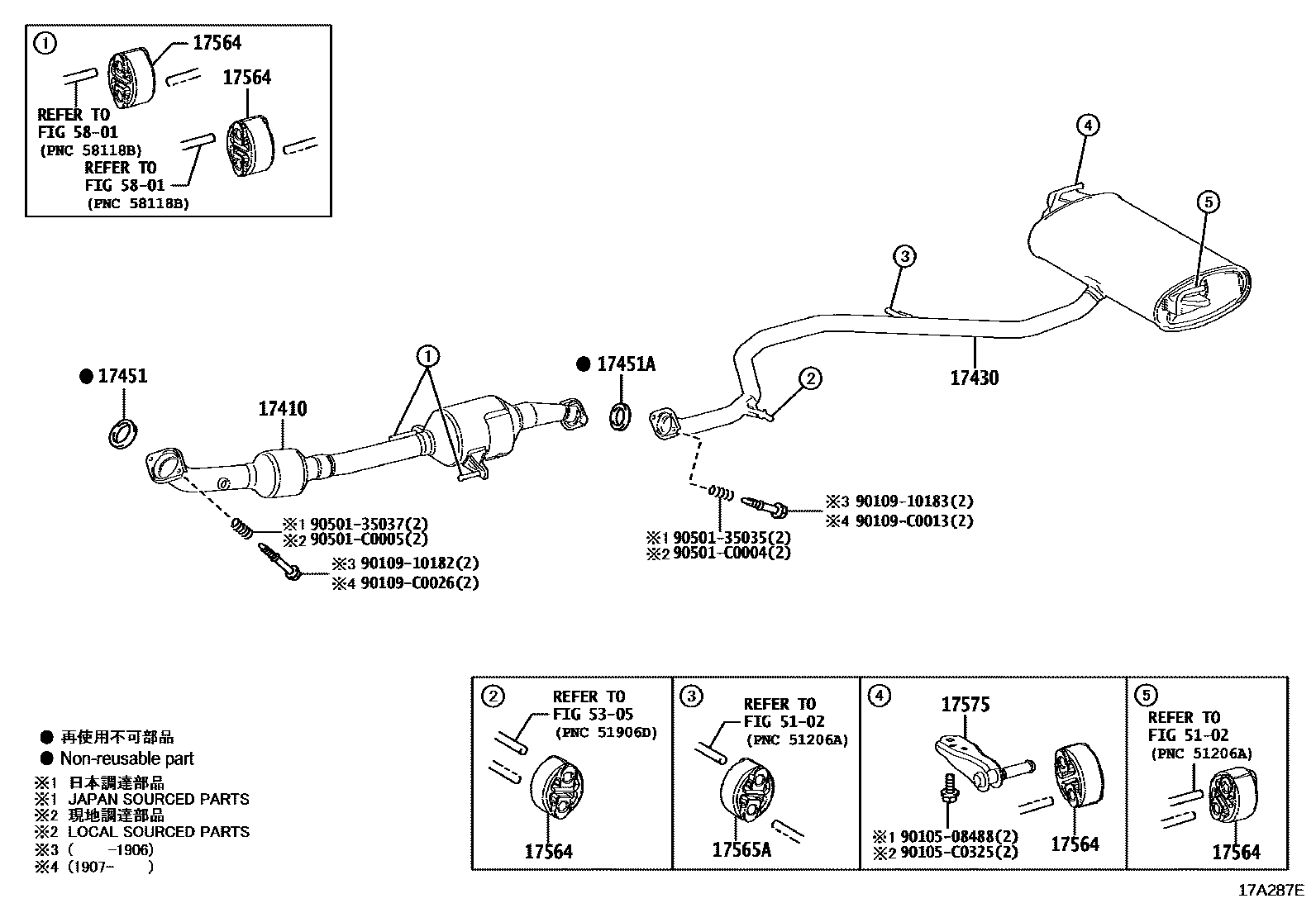

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-F2070iM20AFKS..MAXA10202105-202111

main17410-F2071iM20AFKS..MAXA10202111-202304

main17410-F2340iM20EFXS..MAXH10202105-202304

main17410-F2580iM20AFKS..MAXA10202304

main17410-F2590iM20EFXS..MAXH10202304

17430PIPE ASSY, EXHAUST, TAIL

main17430-F2050iM20AFKS..MAXA10201807-202105

main17430-F2220iM20EFXS..MAXH10202105

17451GASKET, EXHAUST PIPE

main17451-0T010iM20AFKS..MAXA10201807-202105

main17451-0T050iM20AFKS..MAXA10202111

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0T031iM20#..MAXA10,MAXH10202105-202110

main17451-0T080iM20AFKS..MAXA10202111

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T011×5iM20AFKS..MAXA10201807-202105

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D080iM20AFKS..MAXA10201807-202105

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-F2020iM20AFKS..MAXA10201807-202105

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010508488

main90105-08488

90105C0325

main90105-C0325

9010910182

main90109-10182

9010910183

main90109-10183

90109C0013

main90109-C0013

90109C0026

main90109-C0026

9050135035

main90501-35035

9050135037

main90501-35037

90501C0004

main90501-C0004

90501C0005

main90501-C0005

20 parts on this diagram · 2 diagrams in section
